Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outside rearview mirror. Refer to MIRROR REPLACEMENT - POWER  .
  2. Completely lower the window.
  3. Position aside the front door weatherstrip to gain access to the outer sealing strip plastic retainer.
  4. Remove the outer sealing strip plastic retainer (1).

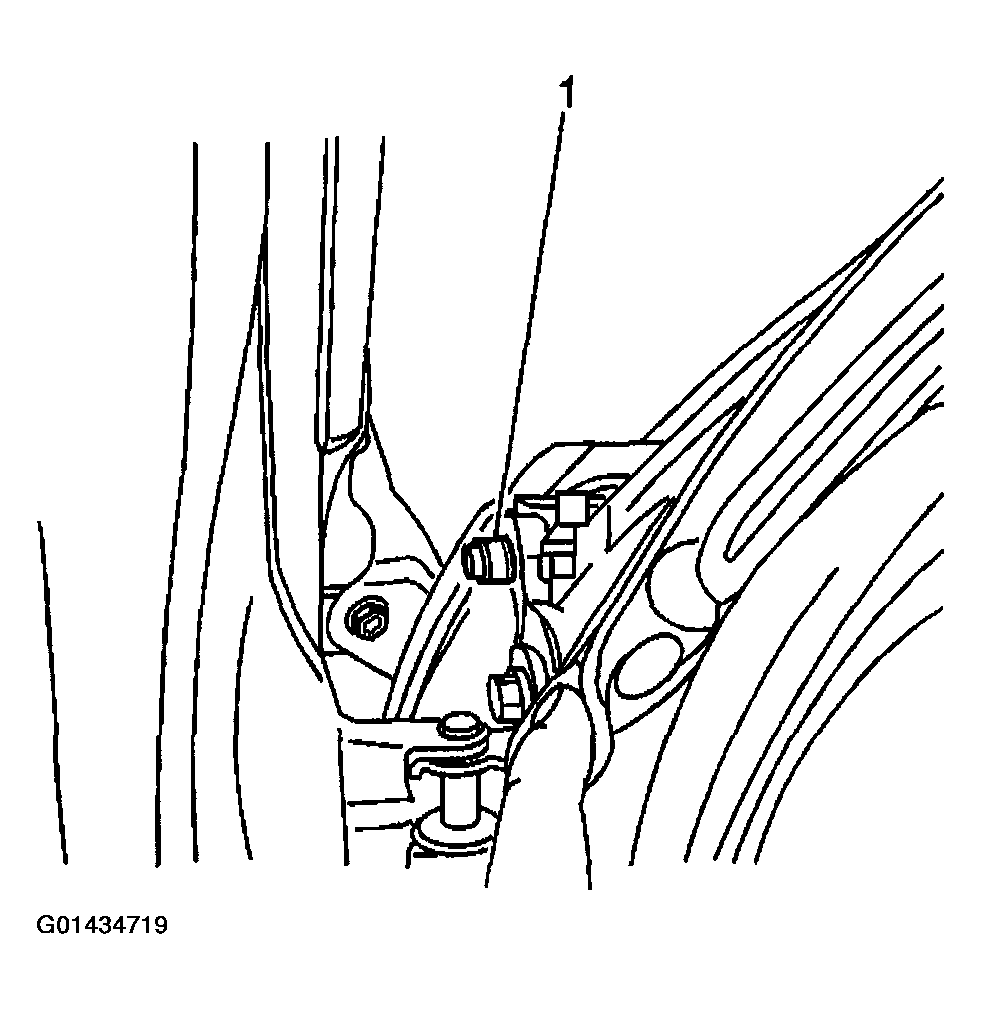

    Fig 1: Removing Outer Sealing Strip Plastic Retainer
    G01434719Courtesy of GENERAL MOTORS CORP.
  5. Gently pry the outer sealing strip (1) from the door using a taped flat bladed tool.

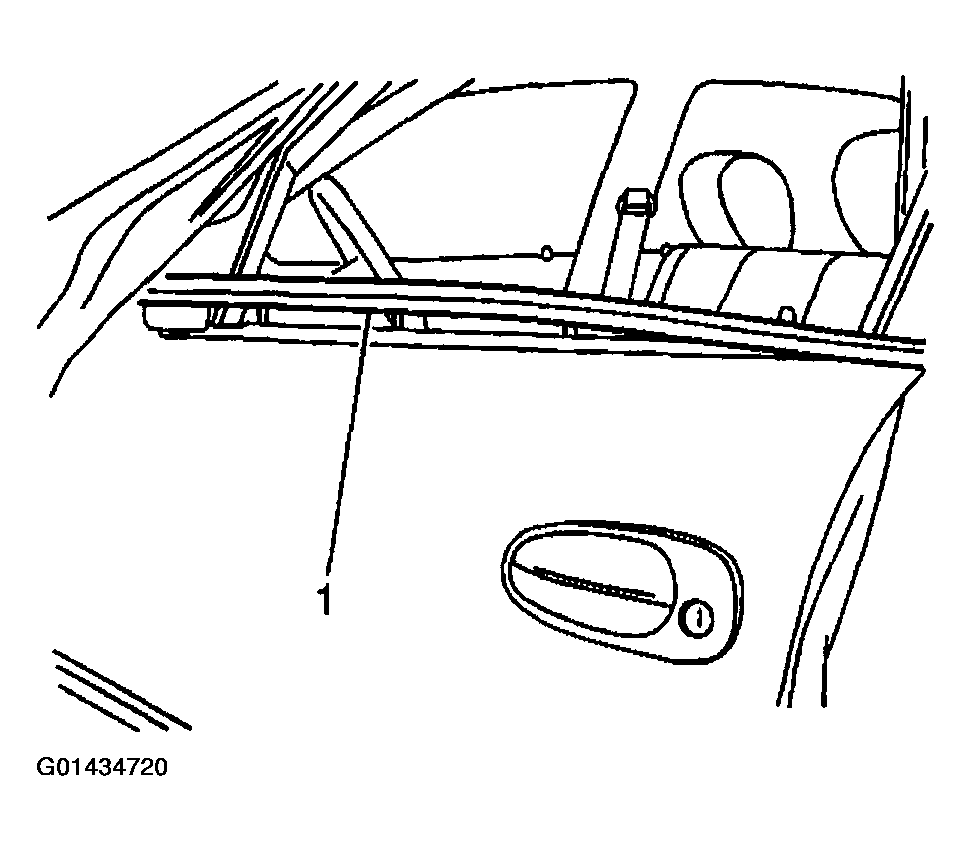

    Fig 2: Prying Outer Sealing Strip From Door
    G01434720Courtesy of GENERAL MOTORS CORP.
