Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip and remove the inner mirror garnish (6) from the door.
  2. Remove the front side door trim. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  3. Disconnect the front upper speaker electrical connector (5), if equipped.
  4. Disconnect the outside rearview mirror electrical connector (2).
  5. Remove the following components from the door:
    • The 3 nuts
    • The front upper speaker (3), if equipped.
    • The outside rearview mirror (1)

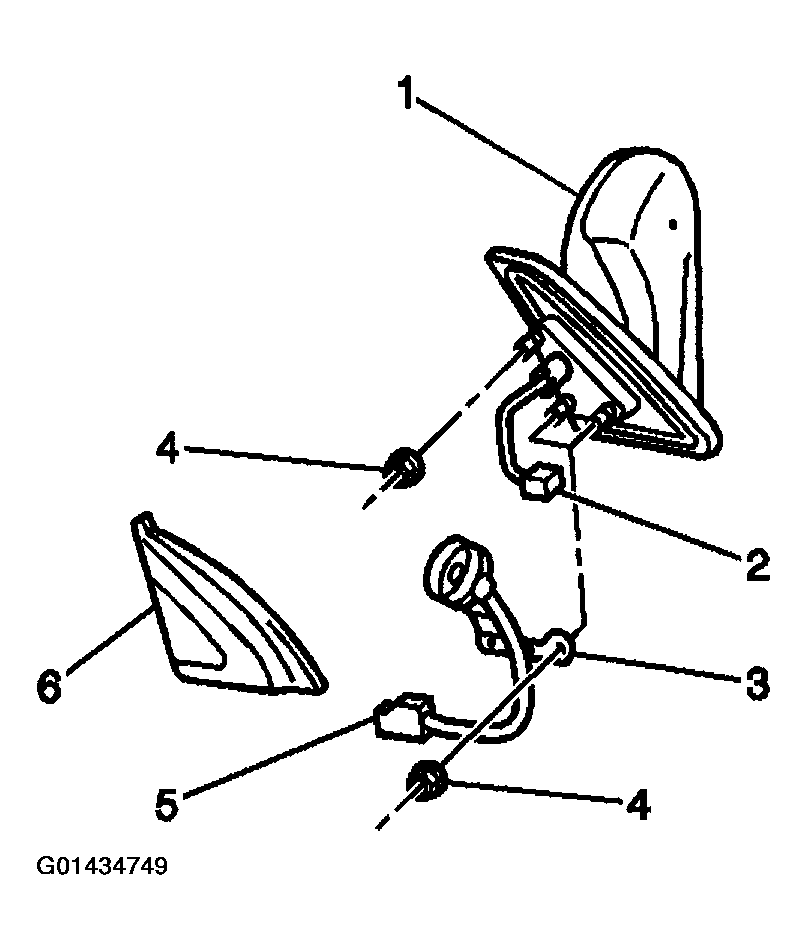

      Fig 1: Removing Front Upper Speaker And Outside Rearview Mirror
      G01434749Courtesy of GENERAL MOTORS CORP.
