Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear inside door handle. Refer to DOOR HANDLE REPLACEMENT - REAR INSIDE  .
  2. Pull the water deflector far enough away to gain access to the door lock.
  3. Disconnect the power door lock actuator electrical connector (3), if equipped.
  4. Remove the following components from the door (1):
    • The 3 screws (4)
    • The door lock (5) with the cables (2) attached.

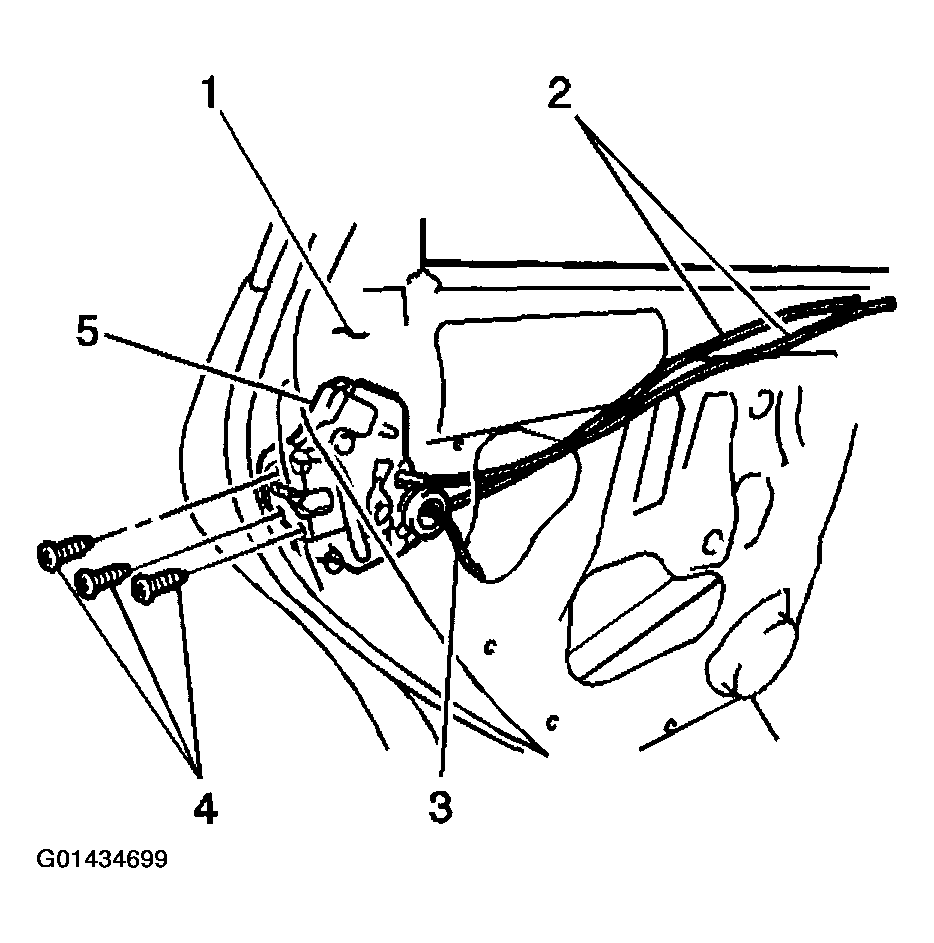

Fig 1: Removing Screws And Rear Door Lock With Cables Attached
G01434699Courtesy of GENERAL MOTORS CORP.
