Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door inside handle. Refer to DOOR HANDLE REPLACEMENT - FRONT INSIDE  .
  2. Disconnect the power door lock actuator electrical connector (3), if equipped.
  3. Remove the following components from the door (1):
    • The 3 screws (4)
    • The door lock (5) with the cables (2) attached.

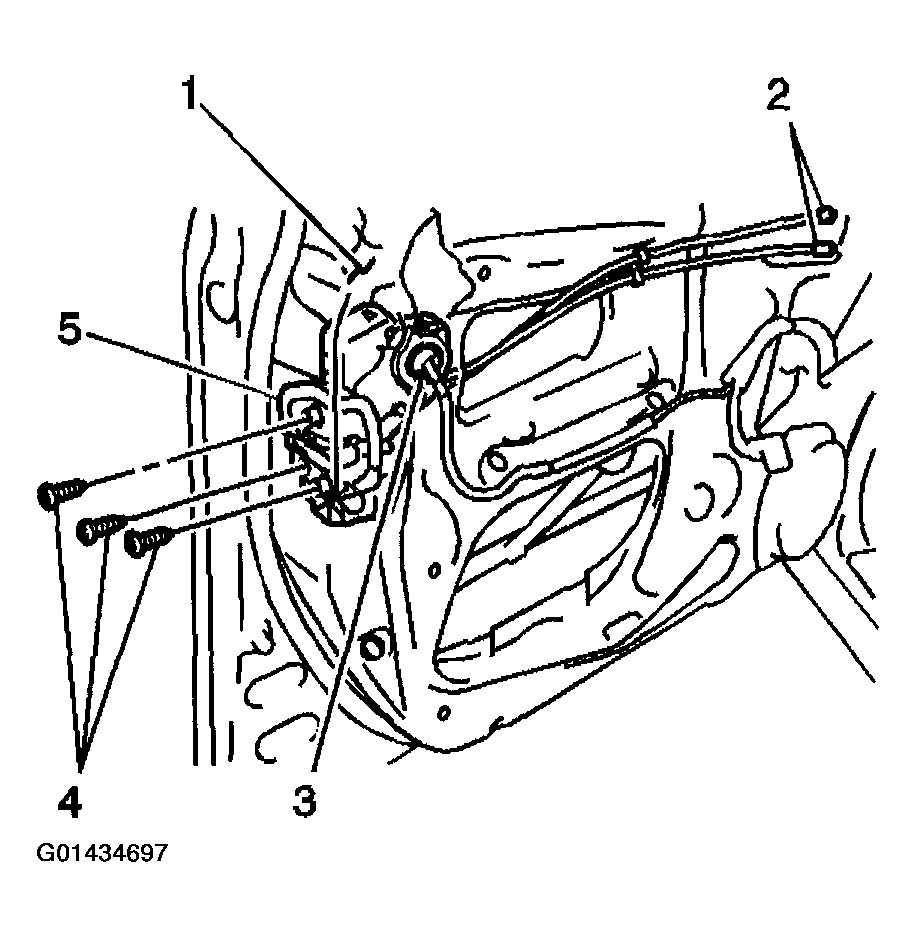

Fig 1: Removing Screws And Front Door Lock With Cables Attached
G01434697Courtesy of GENERAL MOTORS CORP.
