Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front side door.

    Important:  Remove only one hinge at a time in order to keep the door properly aligned.

  2. Remove the 2 door to hinge bolts (2 or 4).
  3. Remove the 2 hinge to door jamb bolts or nuts (3 or 6).
  4. Remove the upper (1) or lower (5) hinge from the vehicle.

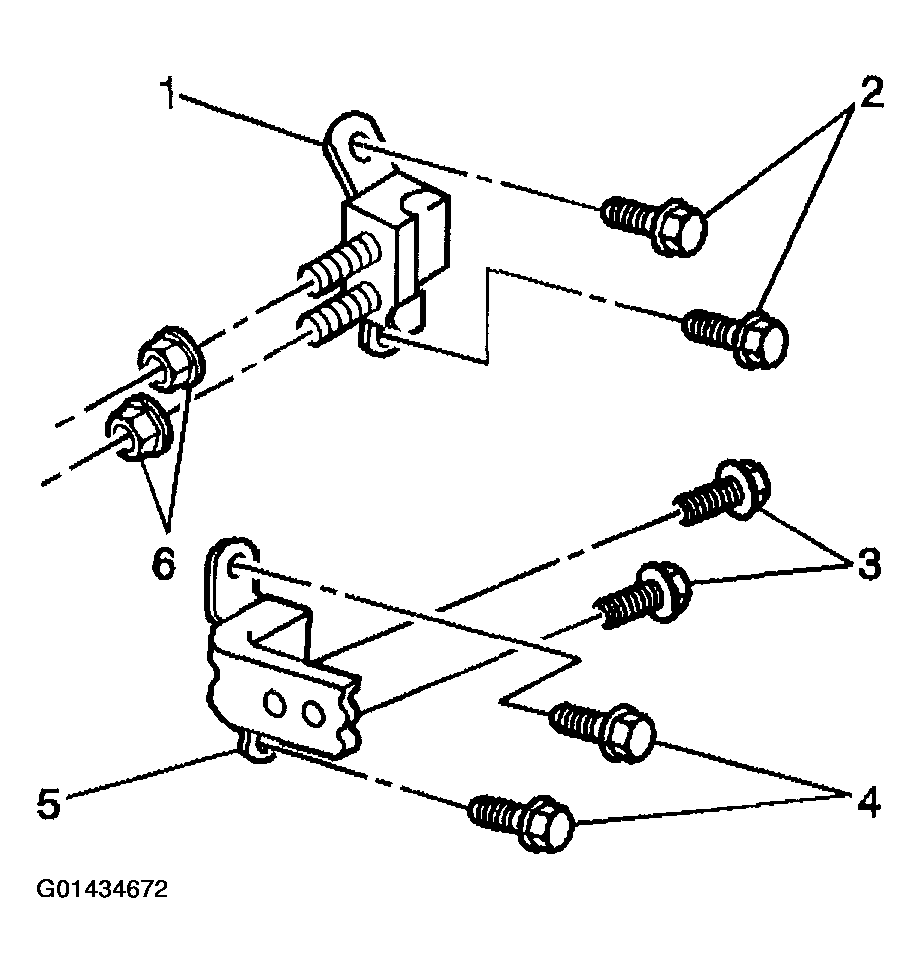

    Fig 1: Removing Door To Hinge Bolts And Hinge To Door Jamb Bolts Or Nuts - Front Door
    G01434672Courtesy of GENERAL MOTORS CORP.
