Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left fender, if necessary.
  2. Remove the right fender, if necessary.

    Important:  Remove only one hinge at a time in order to keep the door properly aligned.

  3. Remove the 2 door to hinge bolts (2 or 4).
  4. Remove the 2 hinge to door jamb bolts (1 or 3).
  5. Remove the upper or lower hinge (6 or 5) from the vehicle.

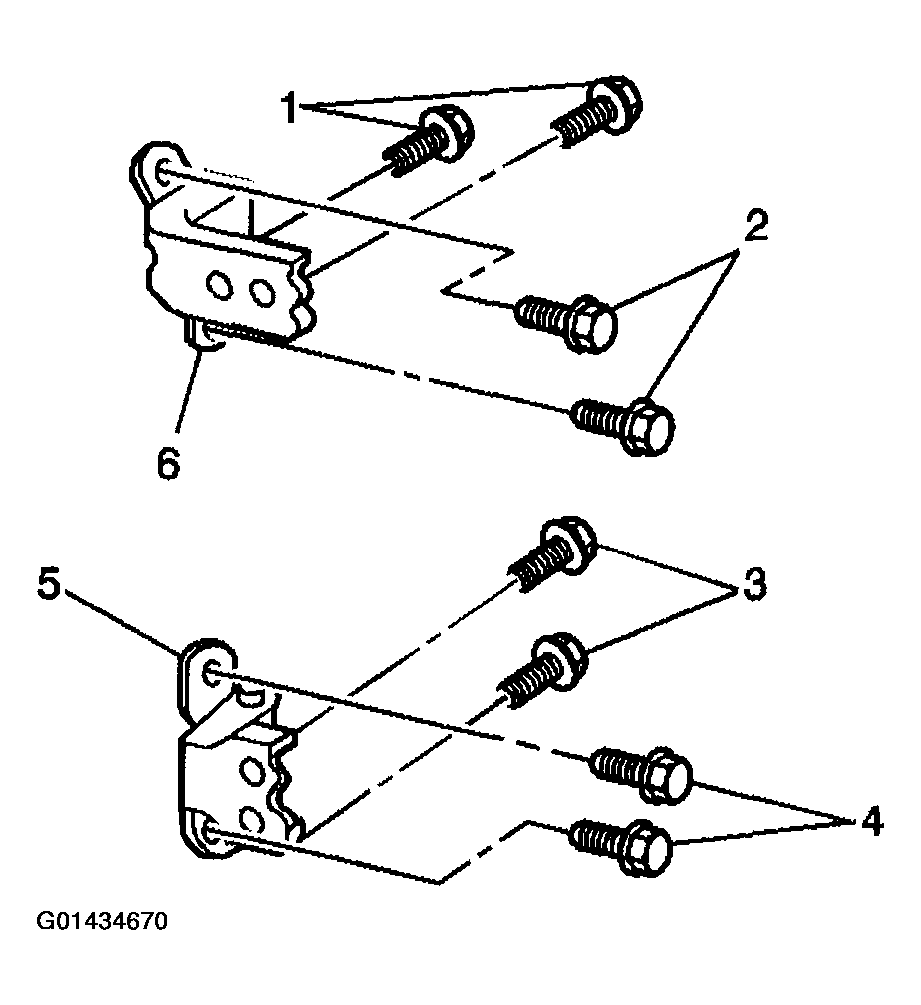

    Fig 1: Removing Door To Hinge Bolts And Hinge To Door Jamb Bolts - Rear Door
    G01434670Courtesy of GENERAL MOTORS CORP.
