Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front side door.
  2. Remove the following components from the door jamb:
    • The 2 screws (4)
    • The door lock striker (8)

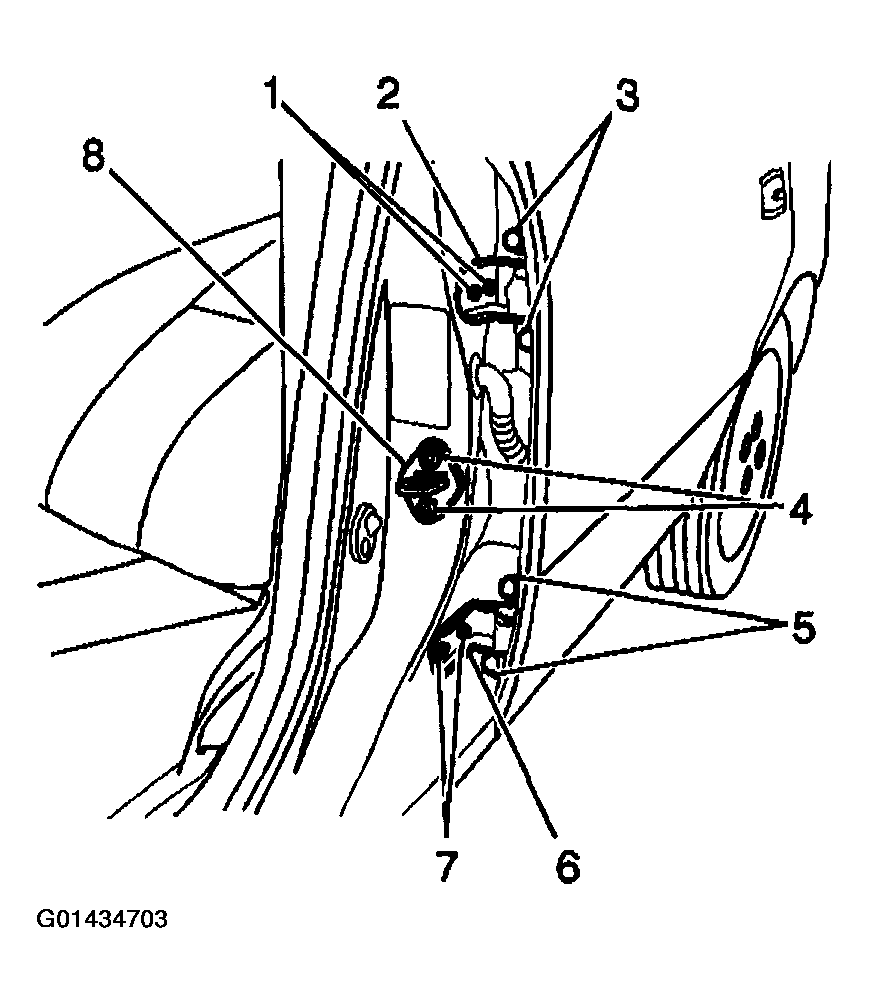

Fig 1: Removing Screws And Front Door Lock Striker
G01434703Courtesy of GENERAL MOTORS CORP.
