Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear side door lock. Refer to LOCK REPLACEMENT - REAR DOOR .
Remove the following components from the door:
- The torx screw (6)
- The outside door handle cover (1)

  Fig 1: Removing Torx Screw And Outside Door Handle Cover
  Courtesy of GENERAL MOTORS CORP.
Pull and hold the release plate of the outside handle frame.

Fig 2: Pulling And Holding Releasing Plate Of Outside Handle Frame
Courtesy of GENERAL MOTORS CORP.
While holding release plate, push the outside handle toward the rear of the door and remove.

Fig 3: Pushing And Removing Outside Handle Toward Rear Of Door
Courtesy of GENERAL MOTORS CORP.

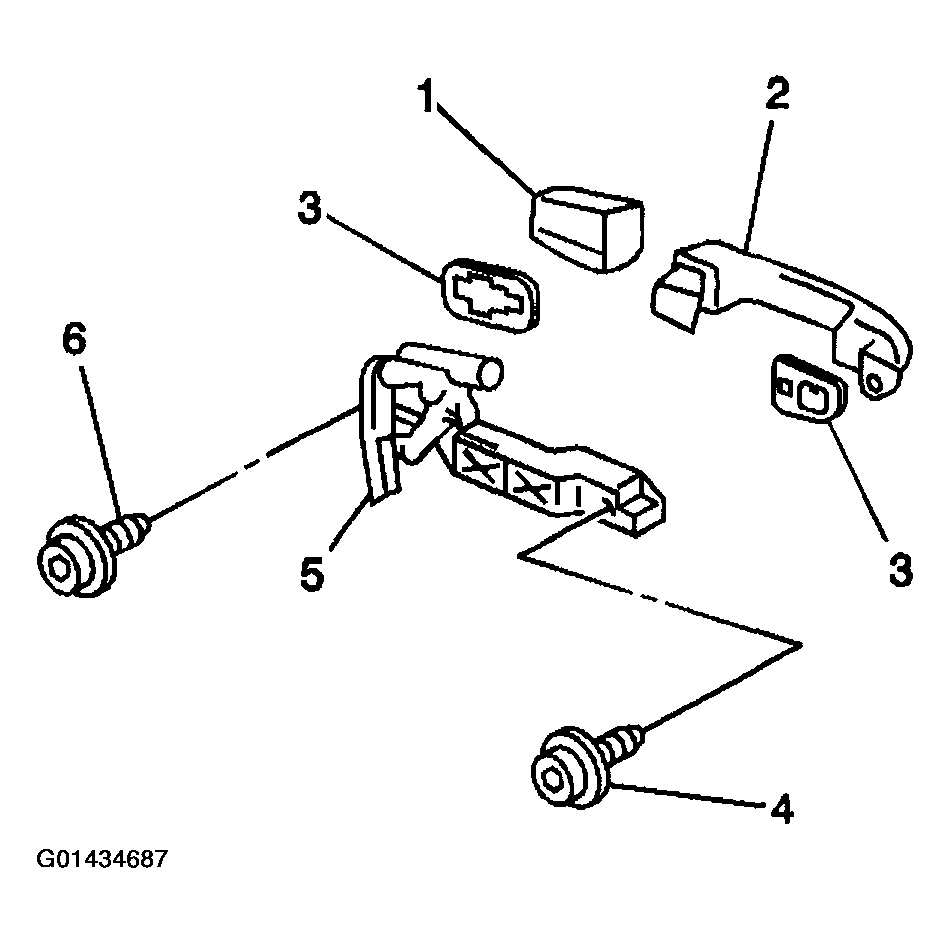

Loosen the torx screw (4) and remove the outside handle frame assembly (5), if necessary.
Remove handle gaskets (3) from door, if necessary.

Fig 4: Loosening Torx Screw And Removing Outside Handle Frame Assembly
Courtesy of GENERAL MOTORS CORP.
Remove handle clip (1) if necessary, by pressing the upper and lower.

Fig 5: Removing Handle Clip
Courtesy of GENERAL MOTORS CORP.
