Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR
  2. Slide the handle (1) rearward and pull it away from the rear side door.
  3. Remove the inside handle cables (3) from the inside door handle (1).
  4. Remove the handle (1) from the vehicle.

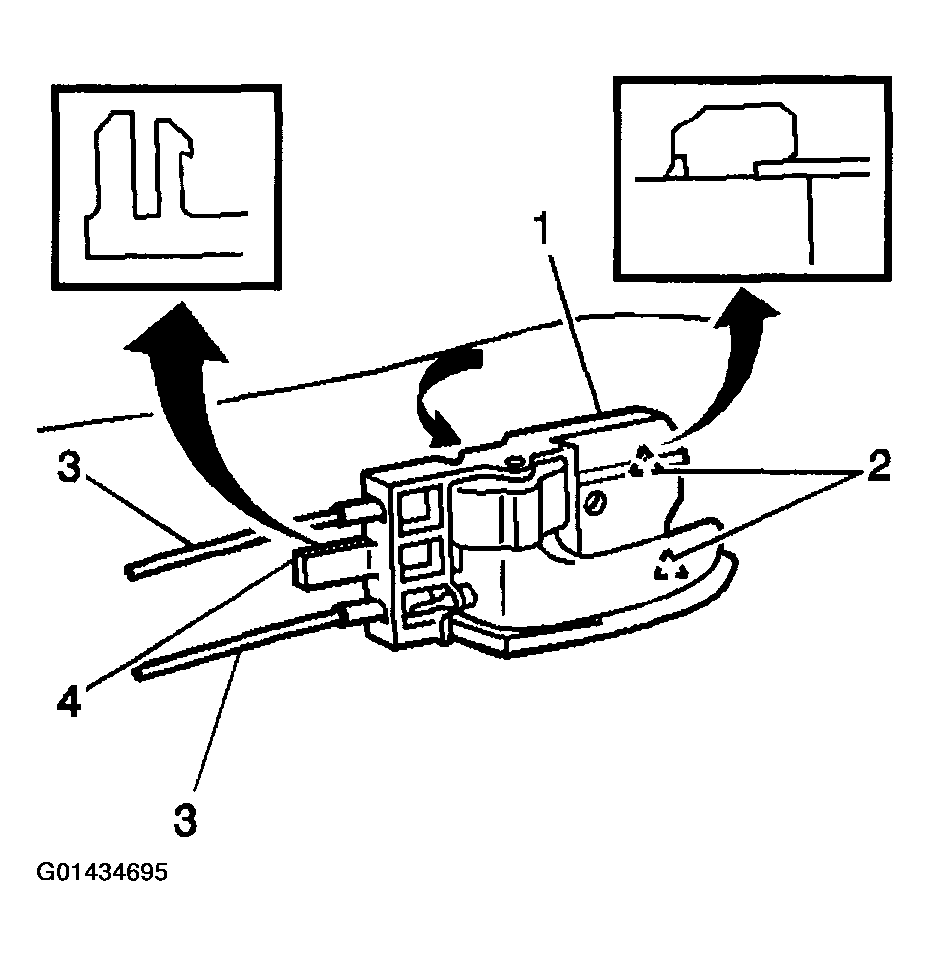

    Fig 1: Sliding Handle Rearward And Pulling It Away From Rear Side Door
    G01434695Courtesy of GENERAL MOTORS CORP.
