Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear side door trim. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  2. Pull back the water deflector to gain clearance to remove the rear door check link from the door.
  3. Remove the following components from the vehicle:
    • The rear door check link to door jamb bolt (3)
    • The 2 bolts (2) which secure the check link to the rear door
    • The check link (1) through inner door panel access hole

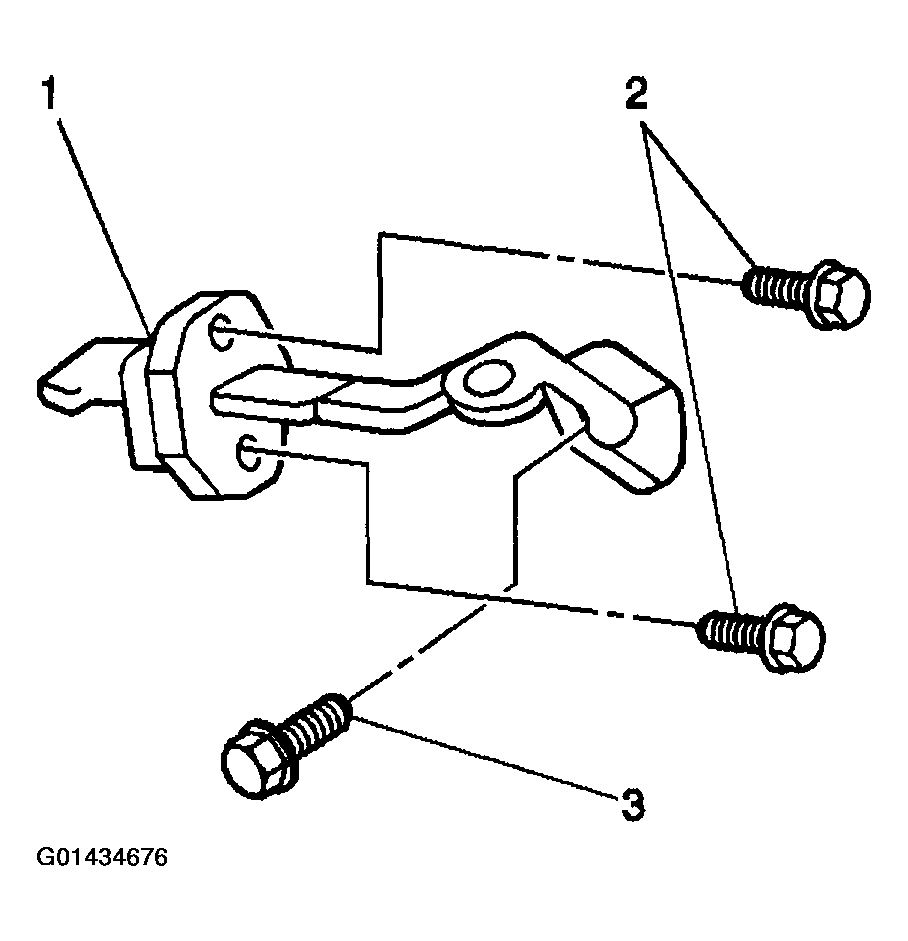

Fig 1: Removing Rear Door Check Link To Door Jamb Bolt And Check Link To Rear Door Retaining Bolts
G01434676Courtesy of GENERAL MOTORS CORP.
