Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front side door trim. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Pull back the water deflector in order to gain clearance to remove the front door check link from the door.
  3. Remove the following components from the vehicle:
    • The front door check link to door jamb bolt (3)
    • The 2 bolts (2) that retain the check link to the rear door
    • The check link (1) through inner door panel access hole

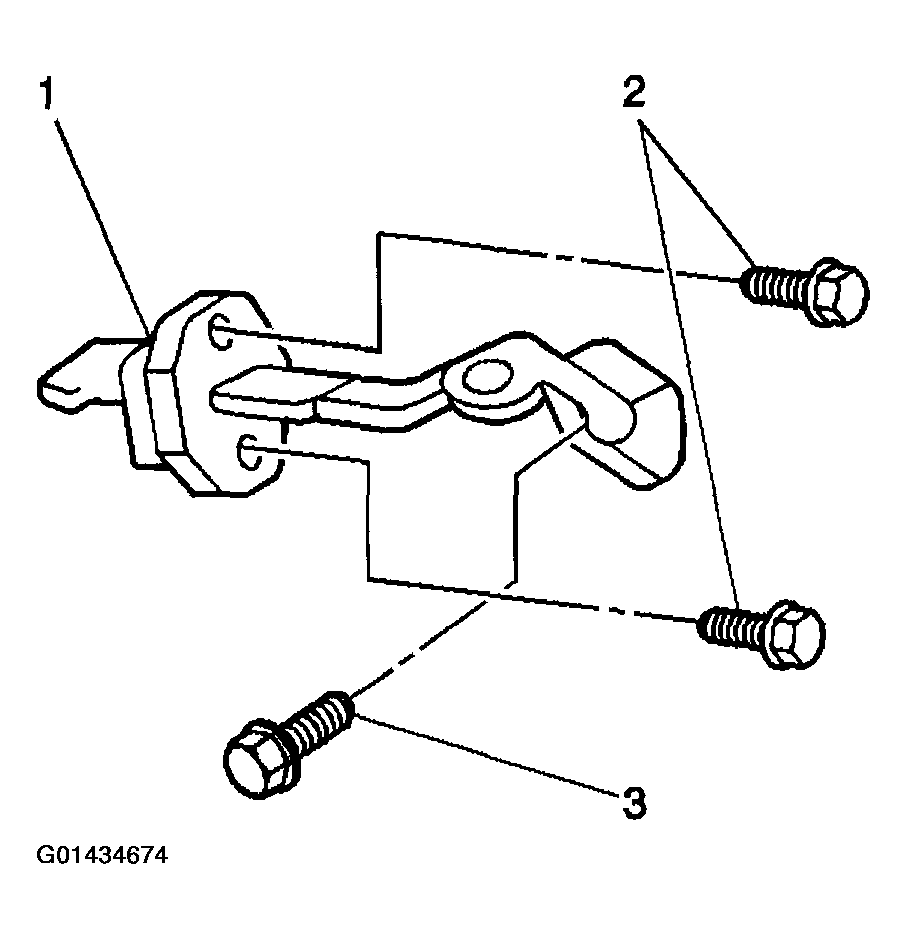

Fig 1: Removing Front Door Check Link To Door Jamb Bolt And Check Link To Rear Door Retaining Bolts
G01434674Courtesy of GENERAL MOTORS CORP.
