Power Window Inoperative - Passenger Door

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

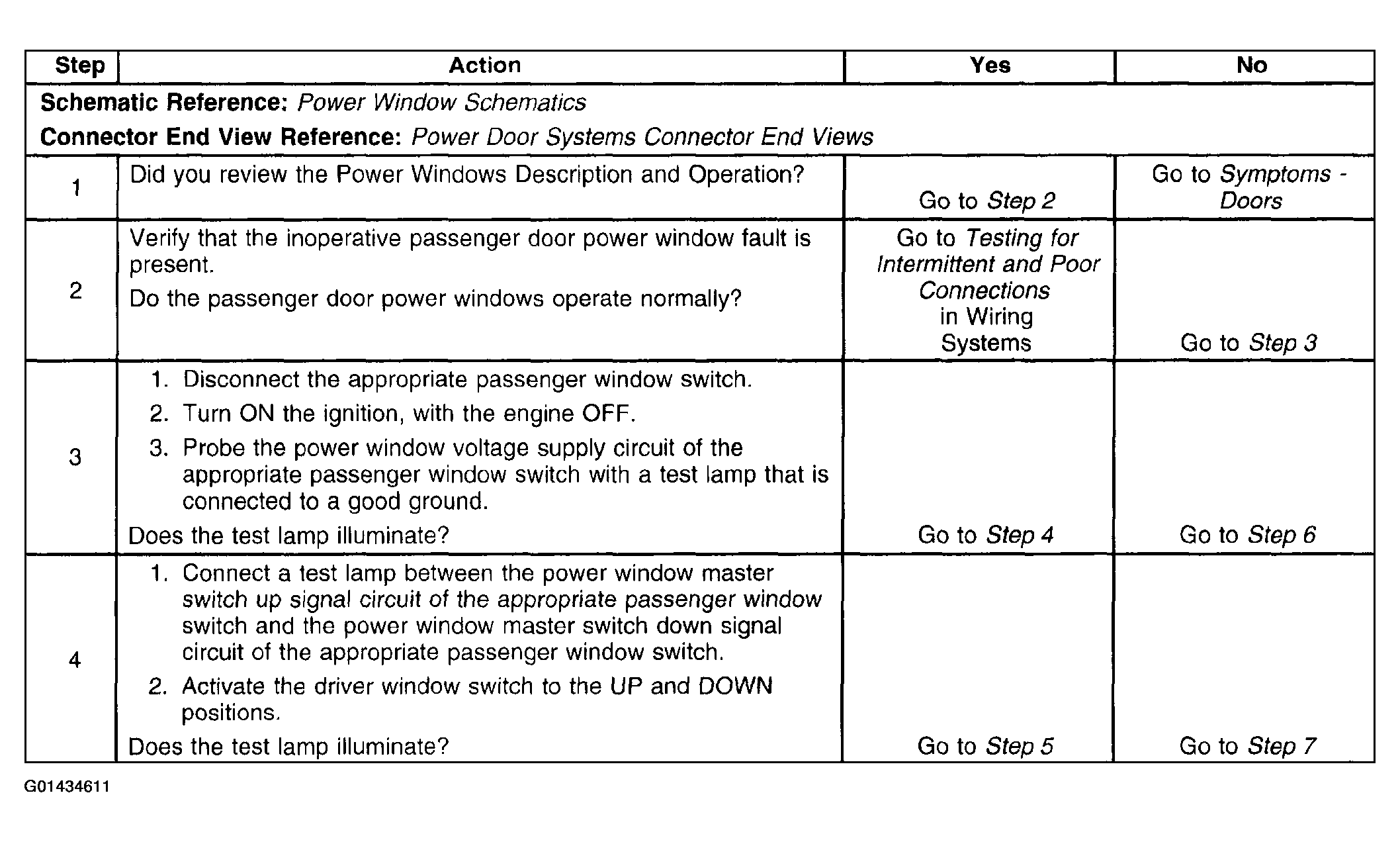

Fig 1: Power Window Inoperative Symptom Tests - Passenger Door (Step 1 To 4)
G01434611Courtesy of GENERAL MOTORS CORP.

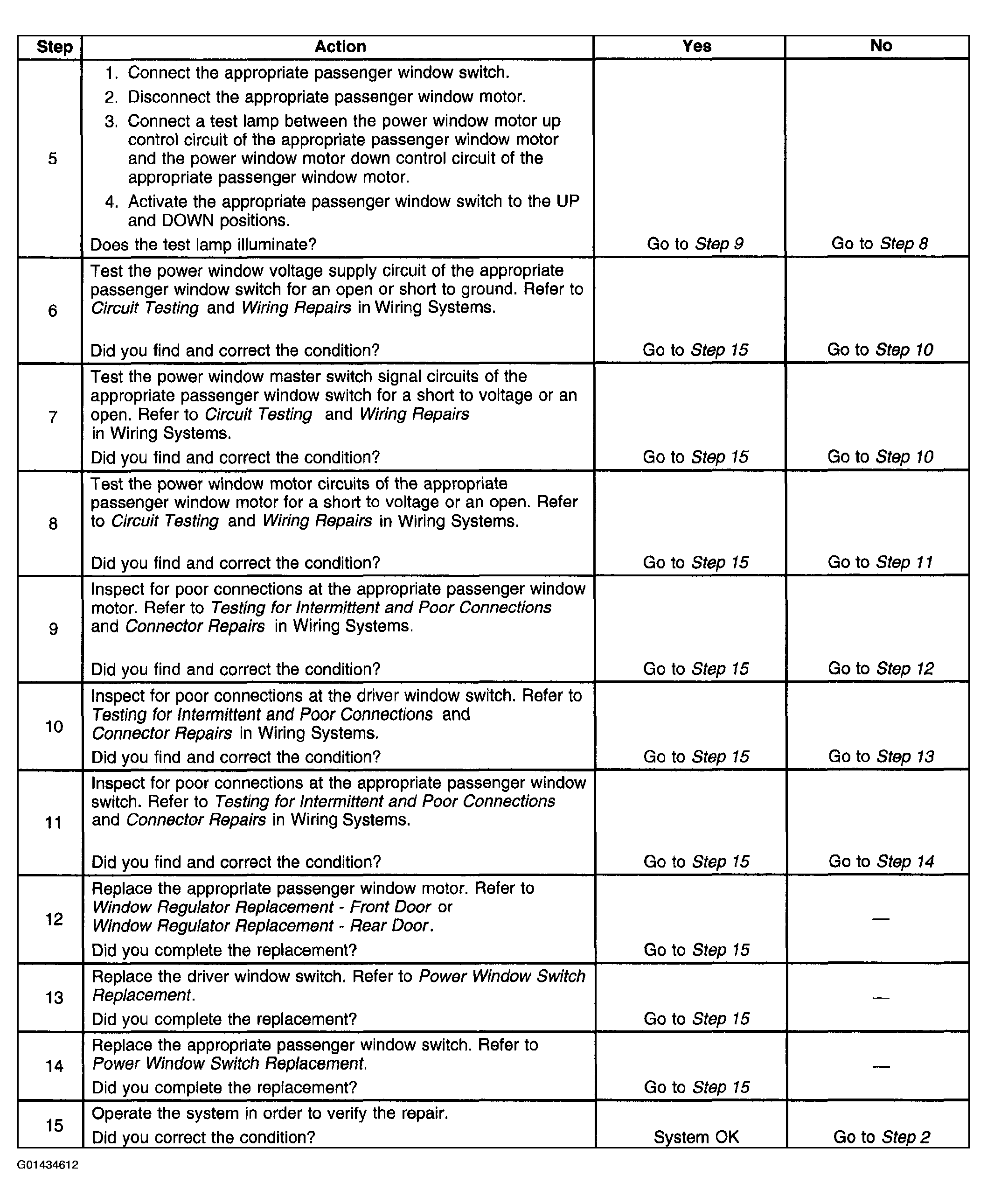

Fig 2: Power Window Inoperative Symptom Tests - Passenger Door (Step 5 To 15)
G01434612Courtesy of GENERAL MOTORS CORP.
