Test Description

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refers to the step numbers on the diagnostic table.

The passenger power window switch on the master switch, shares a common ground circuit with the left front window. If the passenger power window operates properly from the master switch the ground circuit can be presumed good.

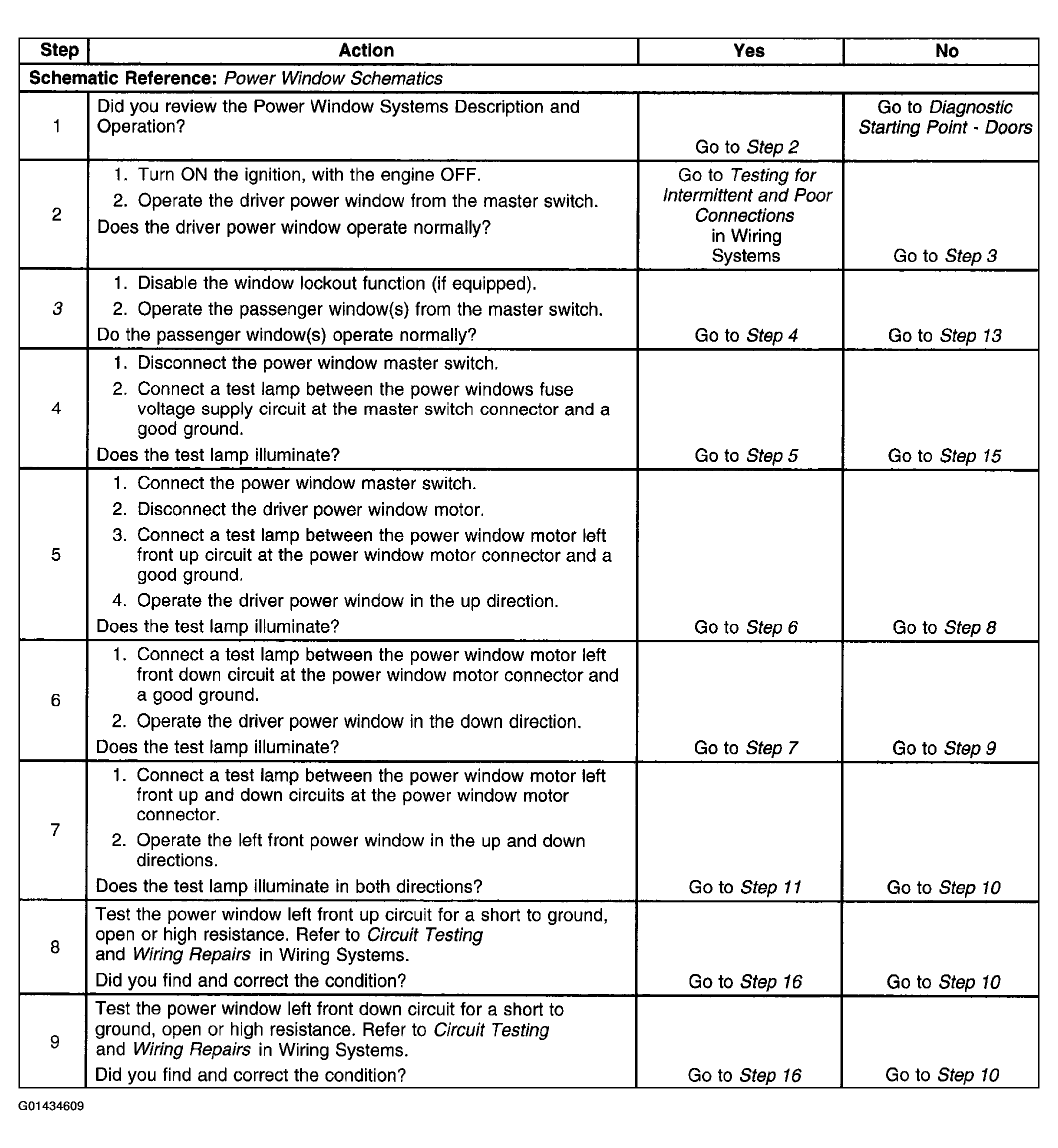

Fig 1: Power Window Inoperative Symptom Tests - Driver Door (Step 1 To 9)

Courtesy of GENERAL MOTORS CORP.

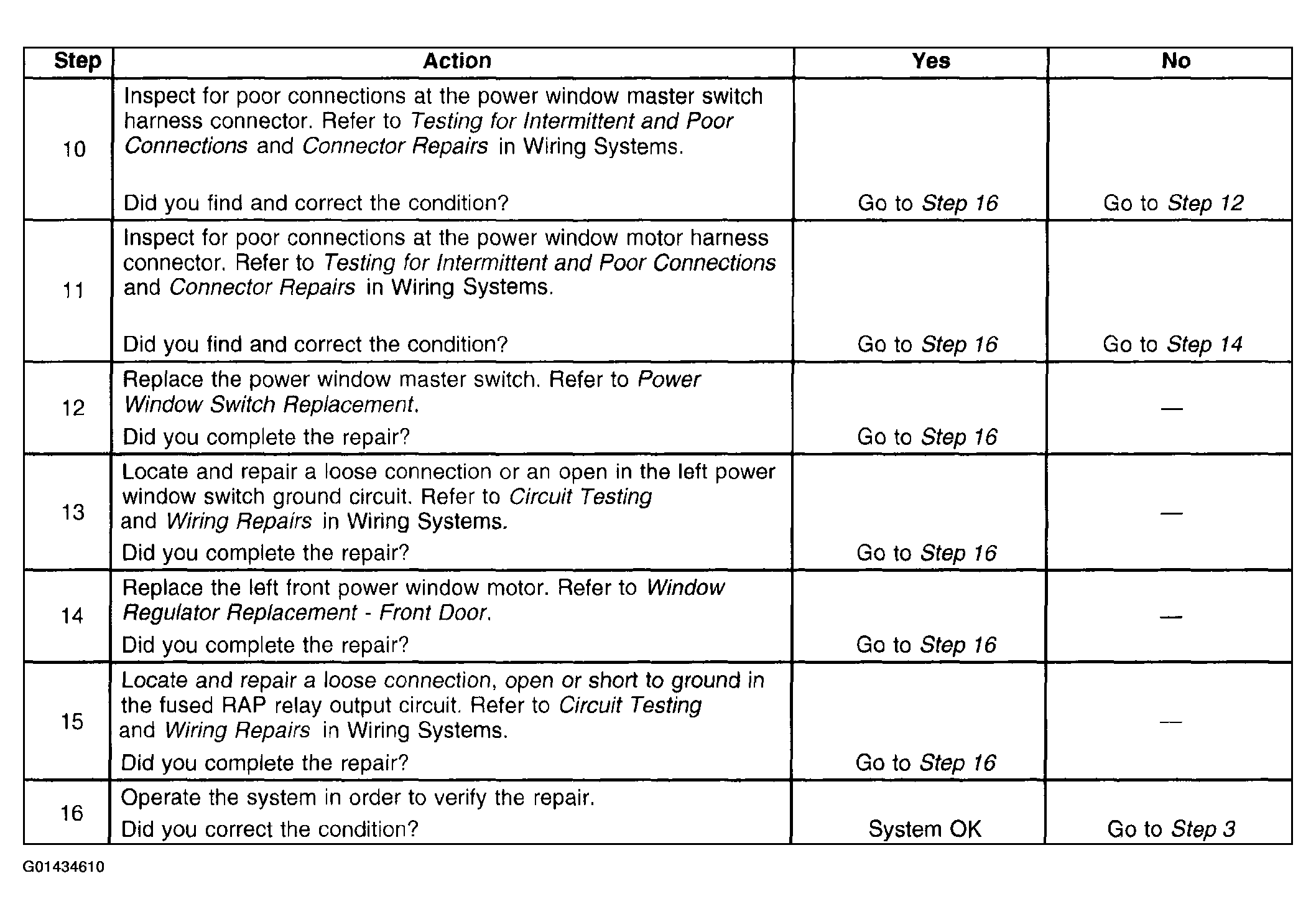

Fig 2: Power Window Inoperative Symptom Tests - Driver Door (Step 10 To 16)

Courtesy of GENERAL MOTORS CORP.
