Power Door Locks Inoperative

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

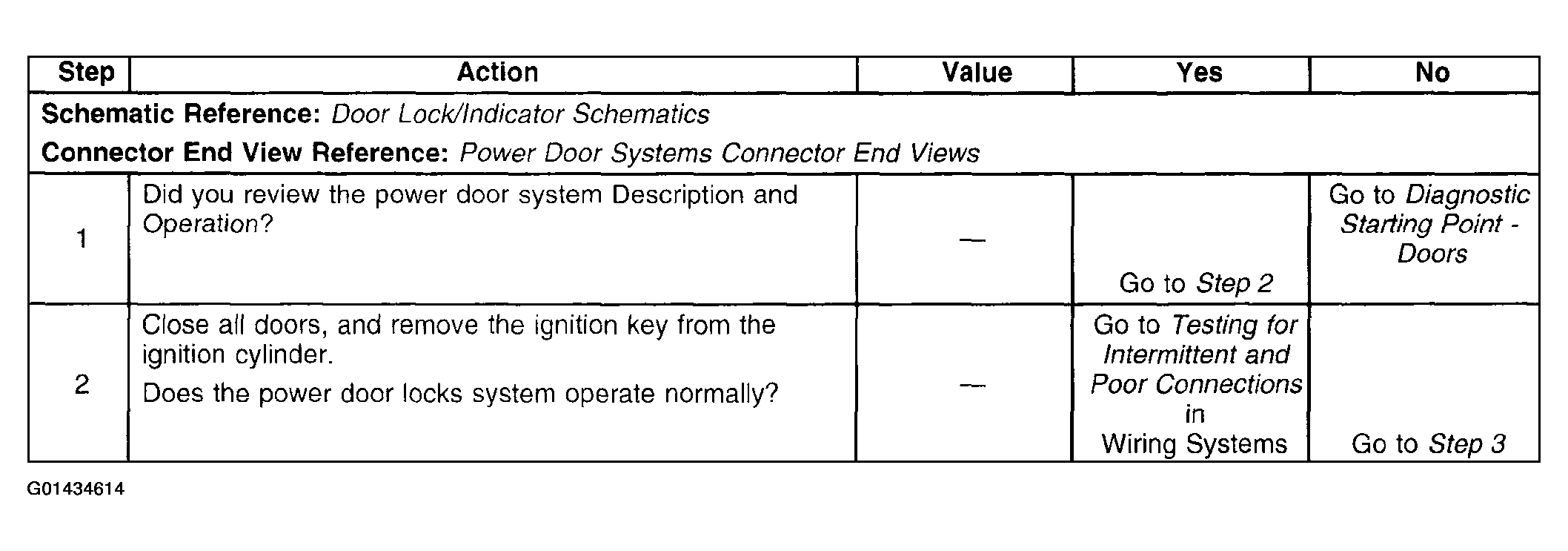

Fig 1: Power Door Locks Inoperative Symptom Tests (Step 1 To 2)
G01434614Courtesy of GENERAL MOTORS CORP.

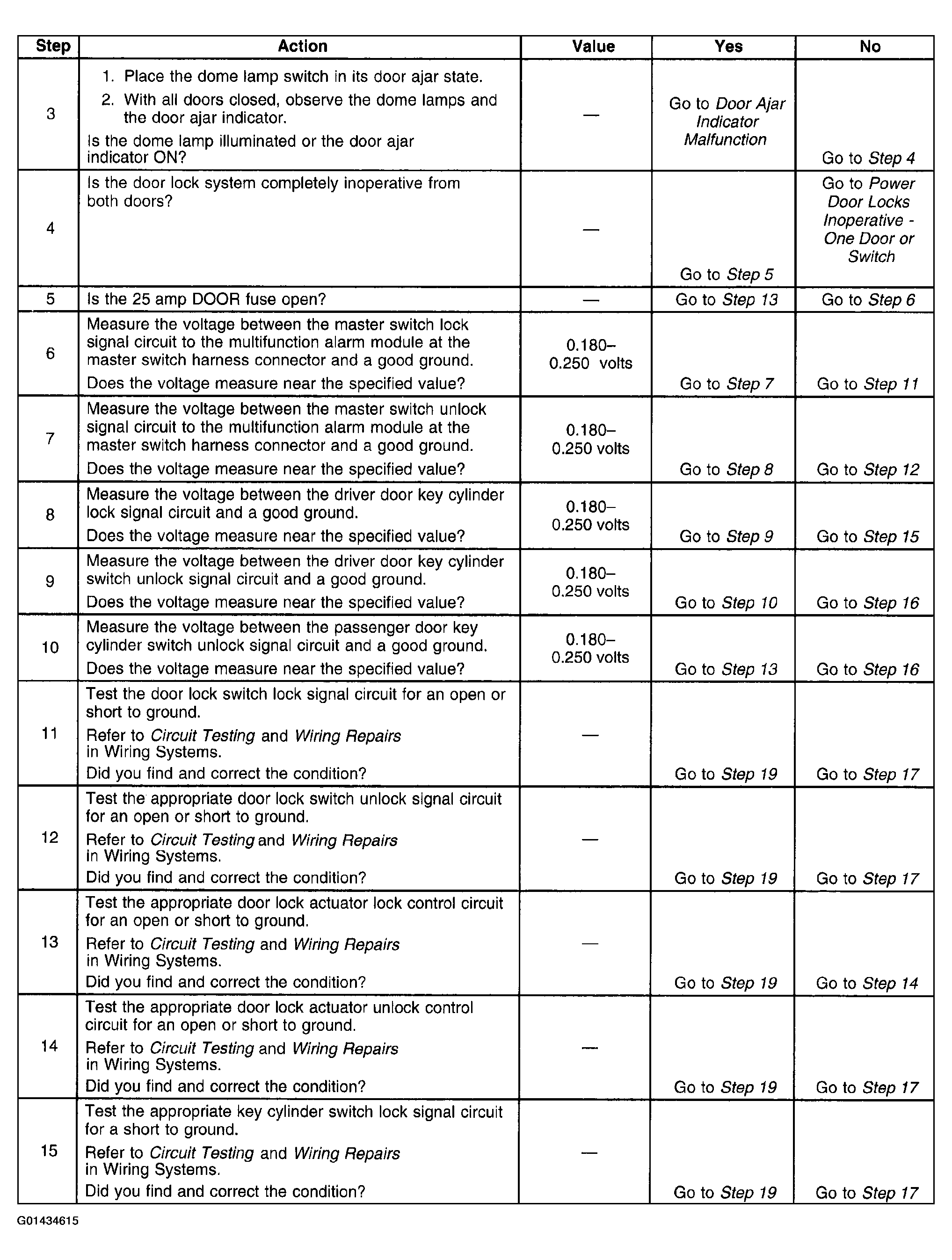

Fig 2: Power Door Locks Inoperative Symptom Tests (Step 3 To 15)
G01434615Courtesy of GENERAL MOTORS CORP.

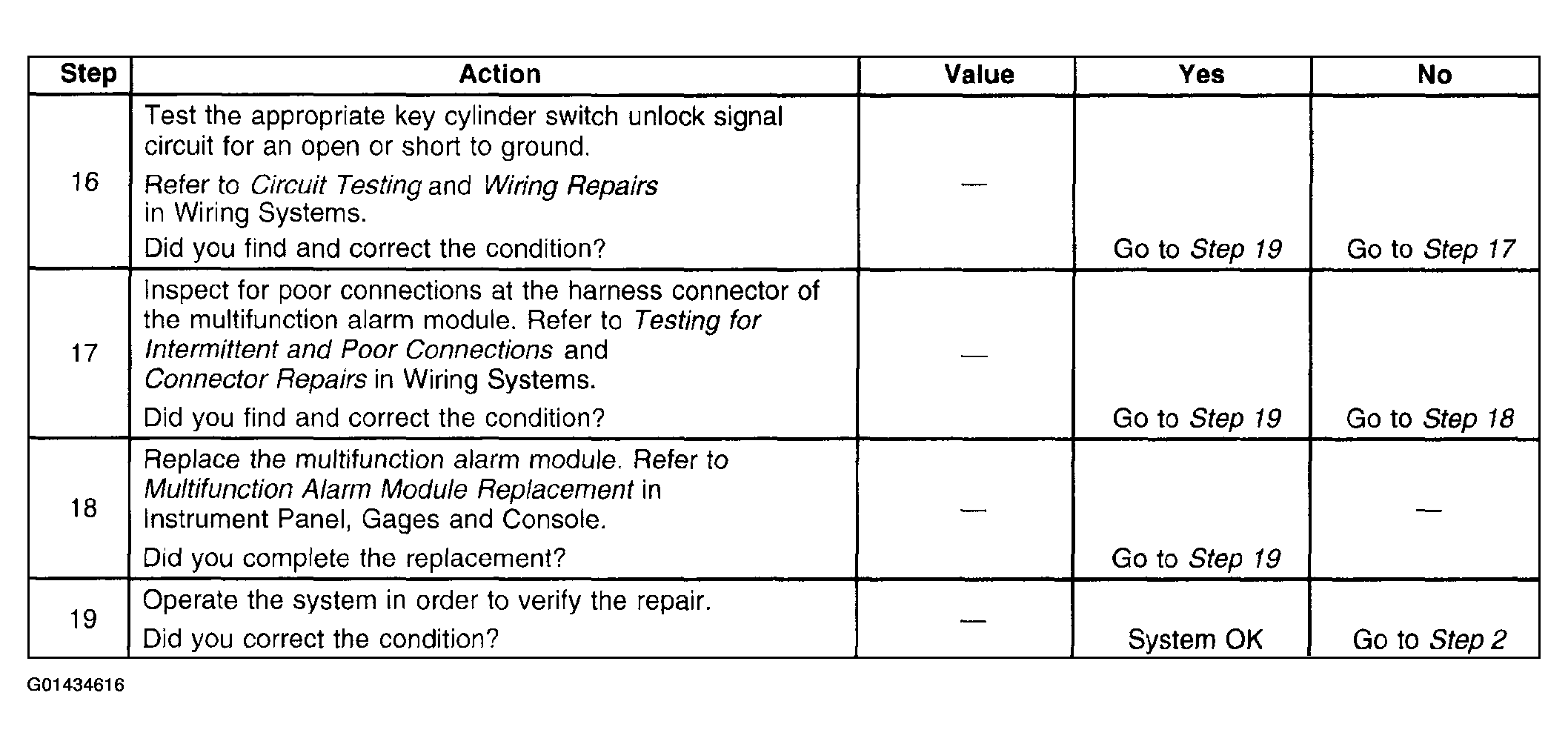

Fig 3: Power Door Locks Inoperative Symptom Tests (Step 16 To 19)
G01434616Courtesy of GENERAL MOTORS CORP.
