Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to JACKING AND LIFTING - AWD in General Information.
  2. Remove fender flare. Refer to FLARE REPLACEMENT - FRONT FENDER in Exterior Trim.
  3. Remove the bolts and plastic retainers from wheel house panel.
  4. Disengage the plastic retainers from the wheel house panel.
  5. Remove the wheel house panel (1) from the fender.

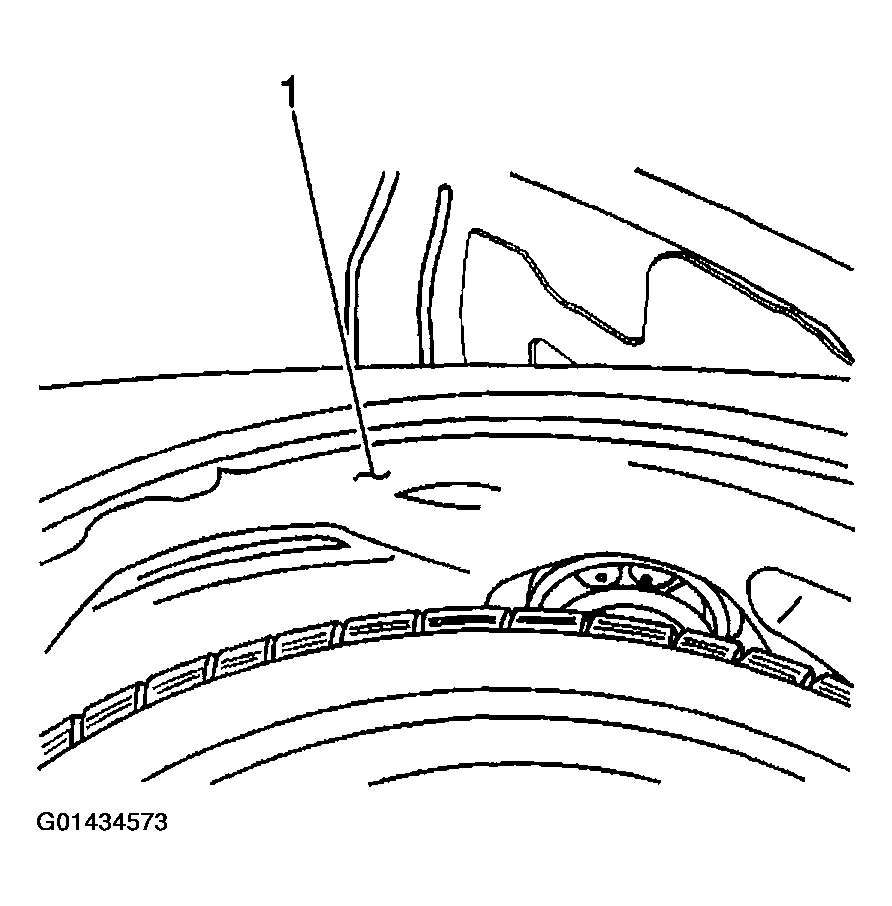

    Fig 1: Removing Wheel House Panel From Fender
    G01434573Courtesy of GENERAL MOTORS CORP.
