Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the wheel house panel (1) to the fender.
  2. Secure the wheel house panel (1) with the bolts and the plastic retainers.

    Tighten

    Tighten the wheelhouse panel bolts to 10 N.m (89 lb in).

  3. Lower the vehicle.

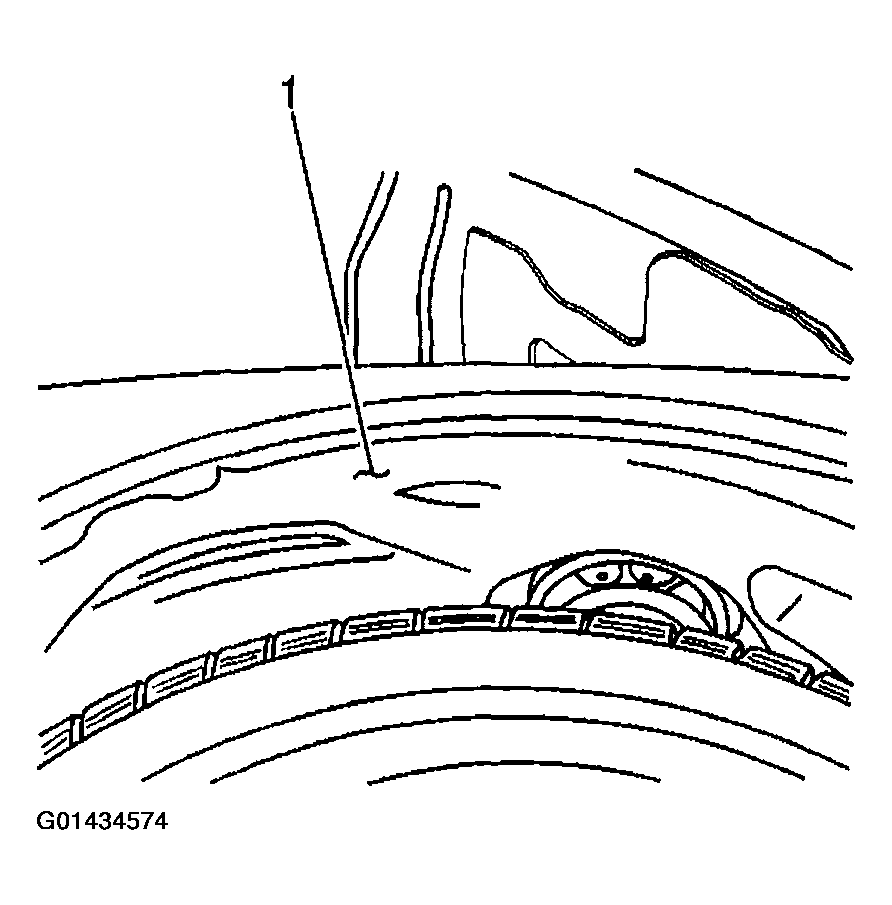

    Fig 1: Installing Wheel House Panel To Fender
    G01434574Courtesy of GENERAL MOTORS CORP.
