Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hood secondary catch and primary latch. Refer to HOOD LATCH REPLACEMENT  .
  2. Remove the input air temperature sensor (2) connector from the center support (1).
  3. Remove the upper fascia plastic retainer from the top of the center support.

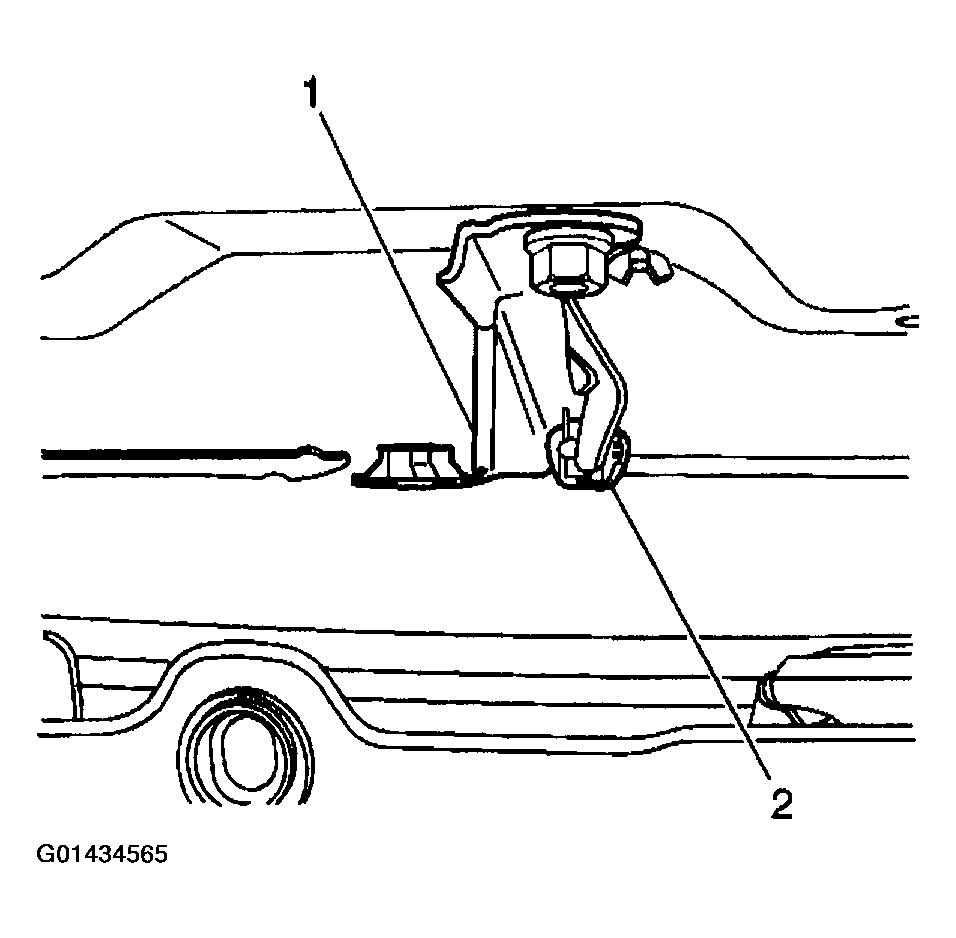

    Fig 1: Removing Input Air Temperature Sensor Connector From Center Support
    G01434565Courtesy of GENERAL MOTORS CORP.
  4. Remove the following components from the vehicle:
    • The 2 bolts
    • The center support (2)
    Fig 2: Removing Center Support Bolts
    G01434566Courtesy of GENERAL MOTORS CORP.
