Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to JACKING AND LIFTING - AWD in General Information.
  2. Remove the following components from the vehicle:
    • The 2 bolts (1)
    • The 5 retainers (2)
    • The engine splash shield (3)

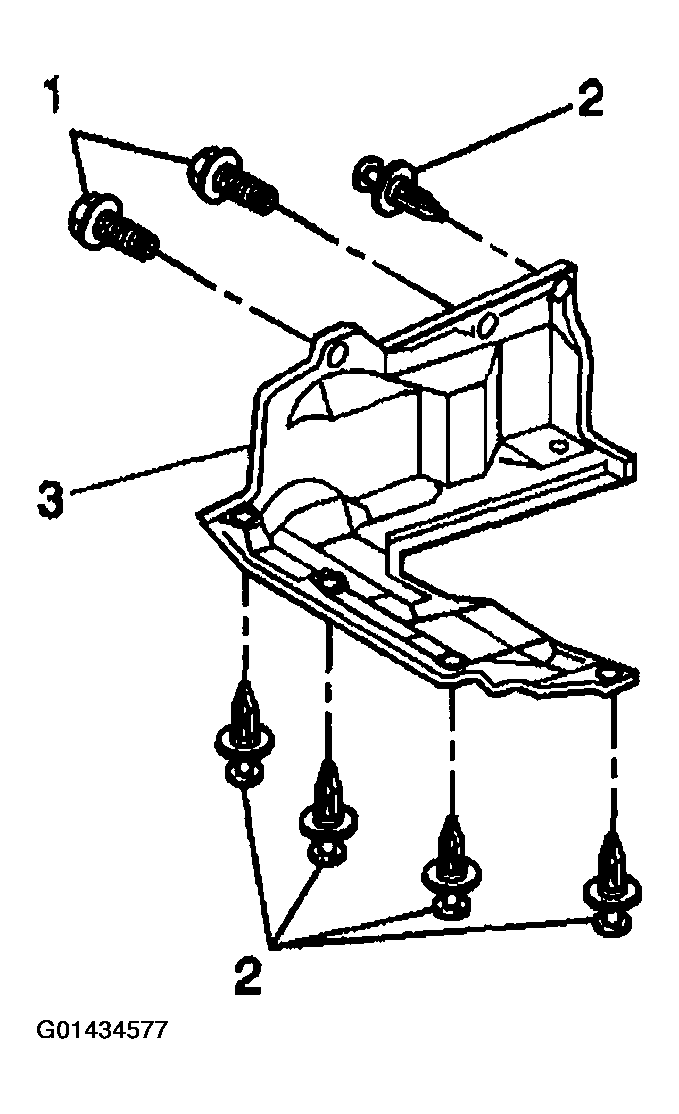

    Fig 1: Removing Engine (Right) Splash Shield Bolts & Retainers
    G01434577Courtesy of GENERAL MOTORS CORP.
