Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the engine splash shield (1) to the vehicle. Secure the splash shield with the 2 bolts (3) and the 4 retainers (2).

    Tighten

    Tighten the engine splash shield bolts to 10 N.m (89 lb in).

  2. Lower the vehicle.

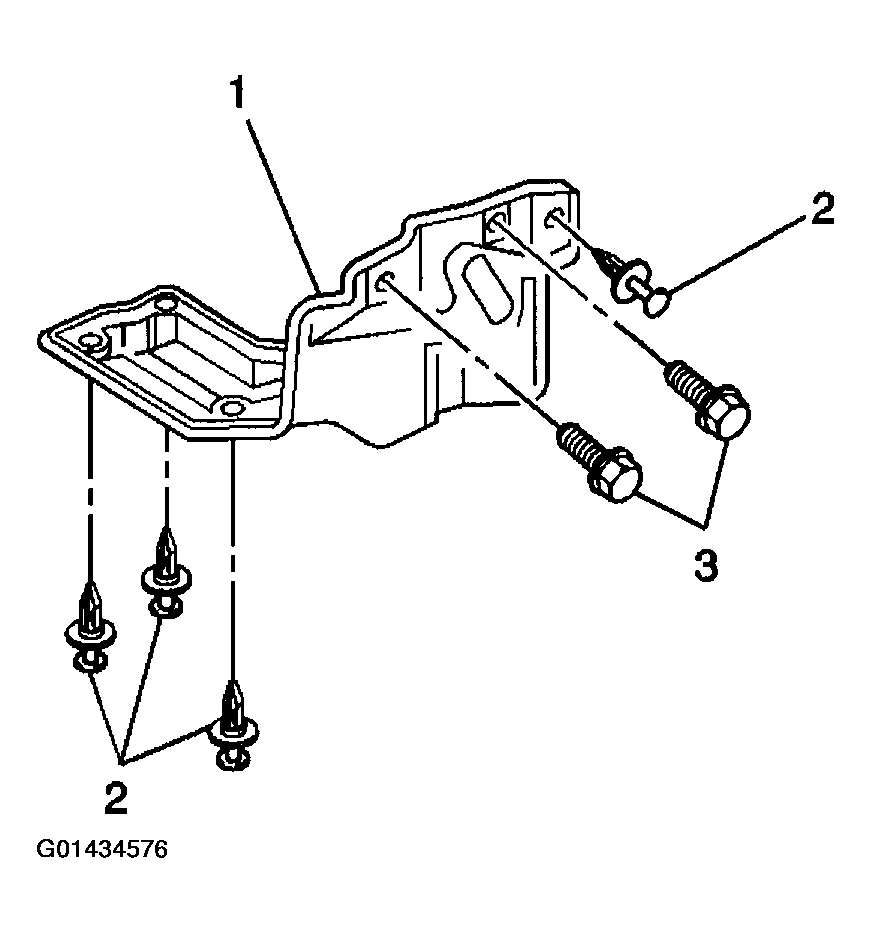

    Fig 1: Installing Engine (Left) Splash Shield Bolts & Retainers
    G01434576Courtesy of GENERAL MOTORS CORP.
