Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Raise and suitably support the hood.
Install protective covers over the front fenders (2) to prevent paint damage.

Fig 1: Installing Protective Covers Over Front Fenders
Courtesy of GENERAL MOTORS CORP.

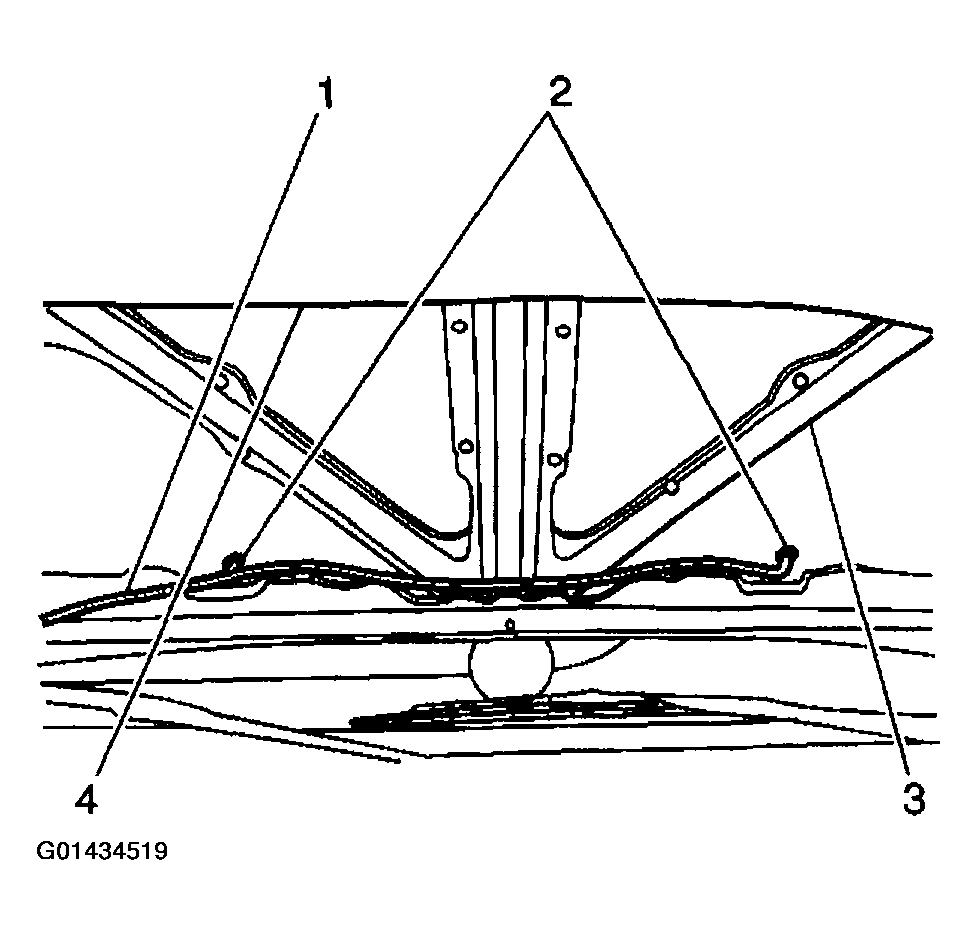

Remove the 2 plastic retainers (3) at the rear of the hood insulator (1).
Fold back the hood insulator (1) in order to access the nozzles and supply hose.

Fig 2: Removing Plastic Retainers At Rear Of Hood Insulator
Courtesy of GENERAL MOTORS CORP.
Remove the windshield washer nozzles (2) and supply hose (1) from the hood (3).

Fig 3: Removing Windshield Washer Nozzles & Supply Hose From Hood
Courtesy of GENERAL MOTORS CORP.

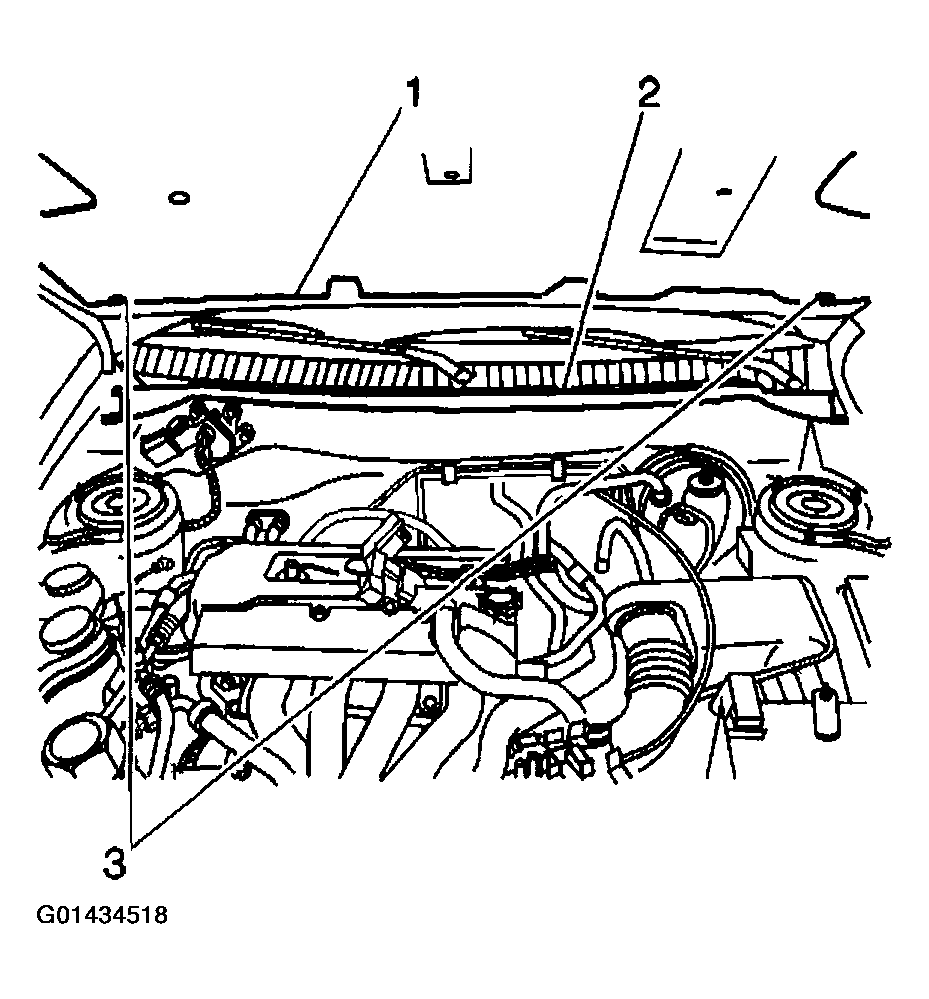

Mark the position of the hood hinges on the hood to ease assembly.
Remove the 2 mounting bolts which secure the hood (1) to each of the hood hinges (3).
Remove the hood with the aid of a helper.

Fig 4: Removing Mounting Bolts Securing Hood To Hood Hinges
Courtesy of GENERAL MOTORS CORP.
