Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the hood.
  2. Remove the following components from the vehicle:
    • The plastic retainer
    • The 3 bolts (3)
      Fig 1: Removing Plastic Retainer & Bolts From Vehicle
      G01434527Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the hood latch release cable (1).
  4. Remove the hood latch (2) from the vehicle.

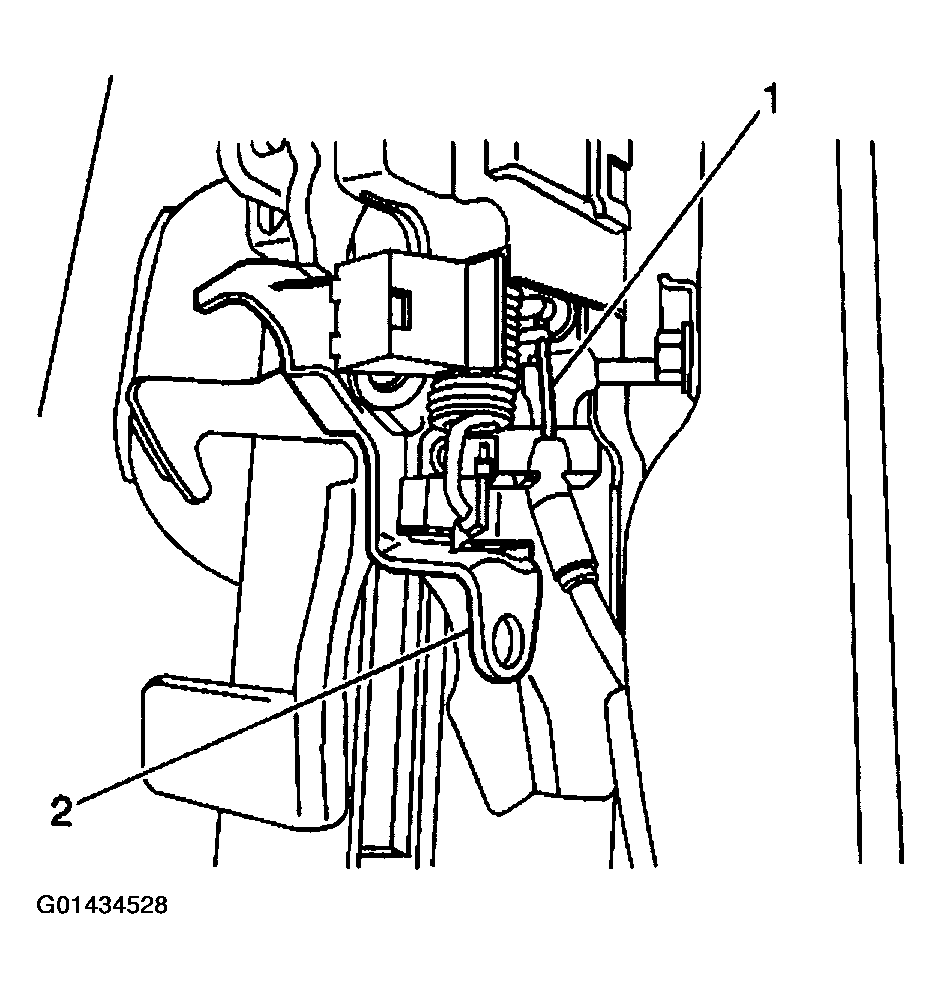

    Fig 2: Disconnecting Hood Latch Release Cable
    G01434528Courtesy of GENERAL MOTORS CORP.
