Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood latch release cable (1) to the hood latch (2).

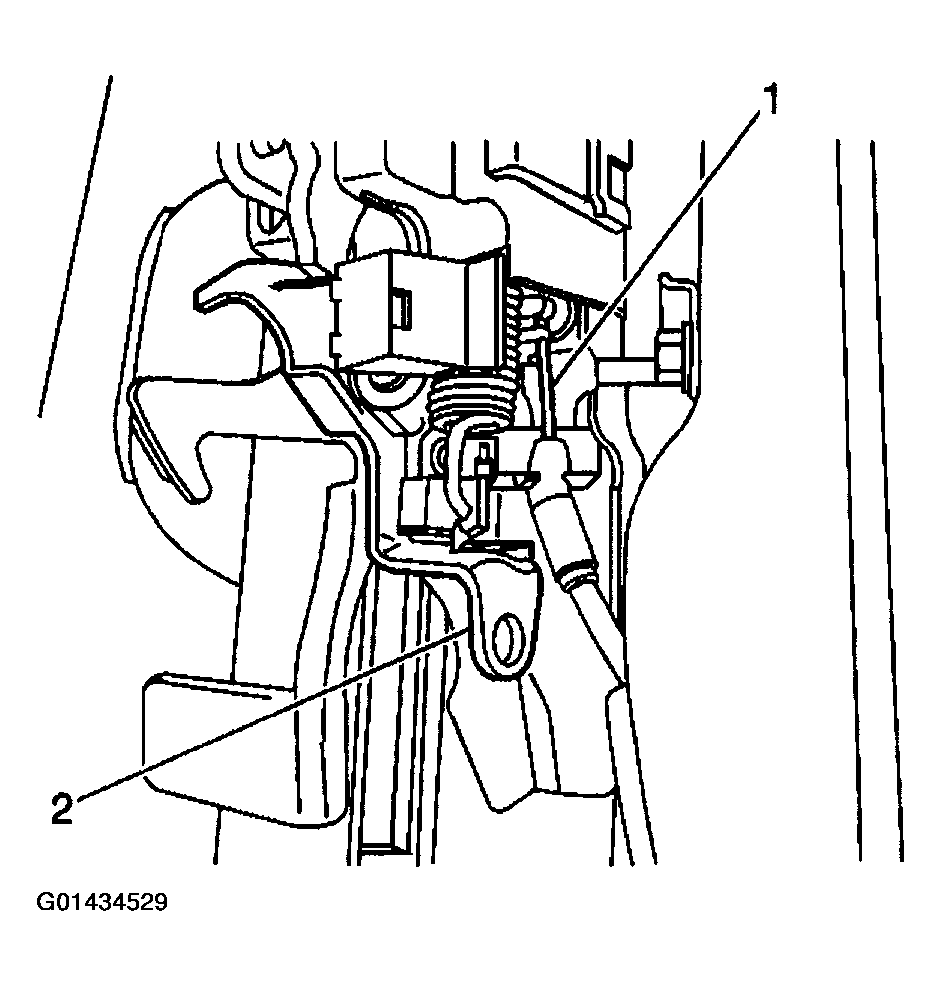

    Fig 1: Installing Hood Latch Release Cable To Hood Latch
    G01434529Courtesy of GENERAL MOTORS CORP.
  2. Install the hood latch (1) to the vehicle. Secure the latch with the 3 bolts (3) and one plastic retainer but do not tighten fully.
    NOTE: Refer to FASTENER NOTICE .
  3. Make the following adjustments to the hood latch:
    • The striker shaft lines up with the center groove of the latch.
    • The hood is flush with the front fender. Refer to HOOD ADJUSTMENT  .

      Tighten

      Tighten the hood latch bolts to 15 N.m (11 lb ft).

  4. Lower the hood.

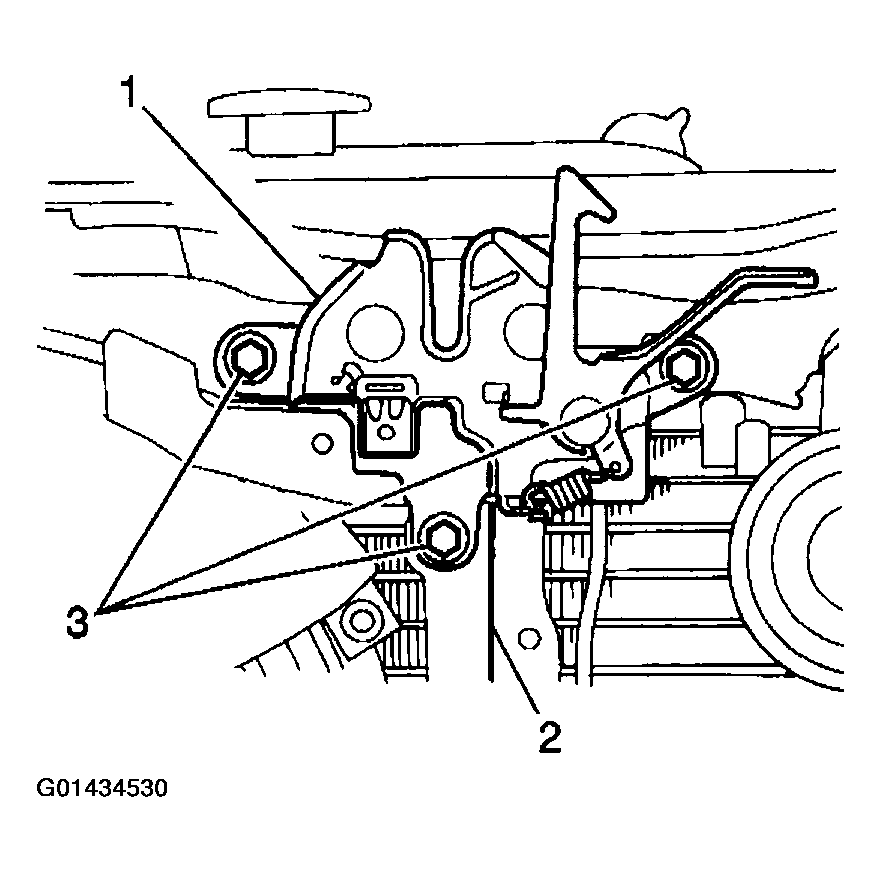

    Fig 2: Installing Hood Latch To Vehicle
    G01434530Courtesy of GENERAL MOTORS CORP.
