Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Gently pry the hood latch release handle (1) from the I/P drivers knee bolster trim (2).

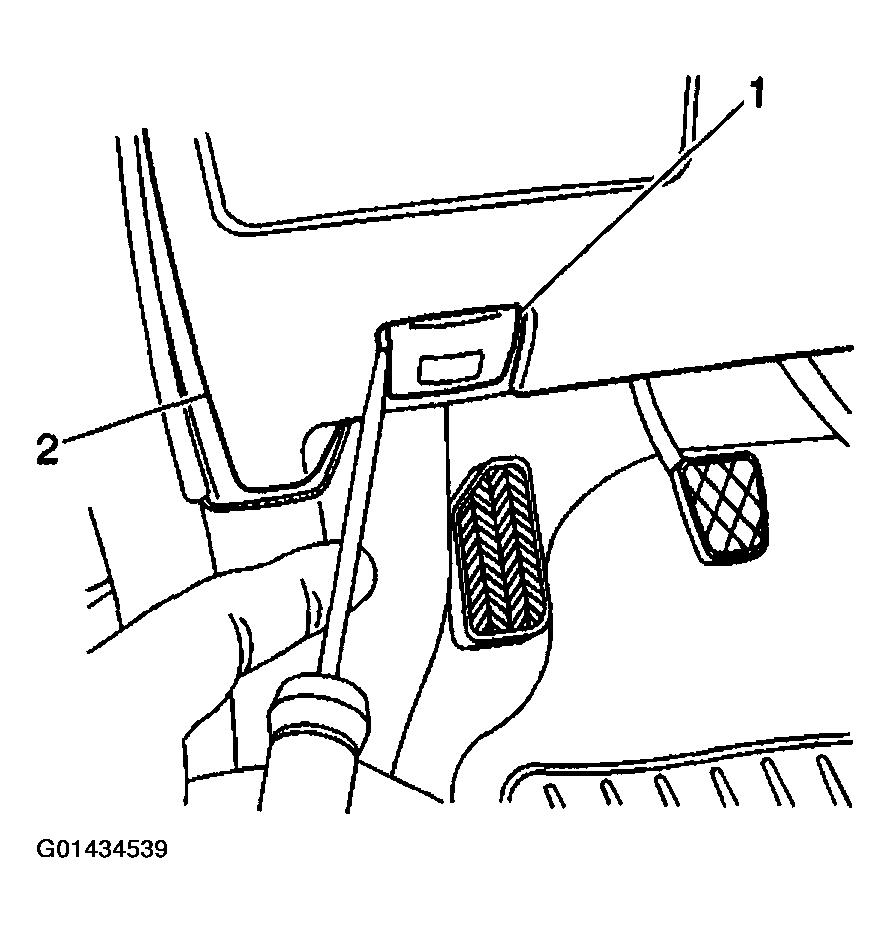

    Fig 1: Prying Hood Latch Release Handle From I/P Drivers Knee Bolster Trim
    G01434539Courtesy of GENERAL MOTORS CORP.
  2. Remove the hood latch release cable (1) from the hood latch release handle (2).
  3. Remove the hood latch release handle (2) from the vehicle.

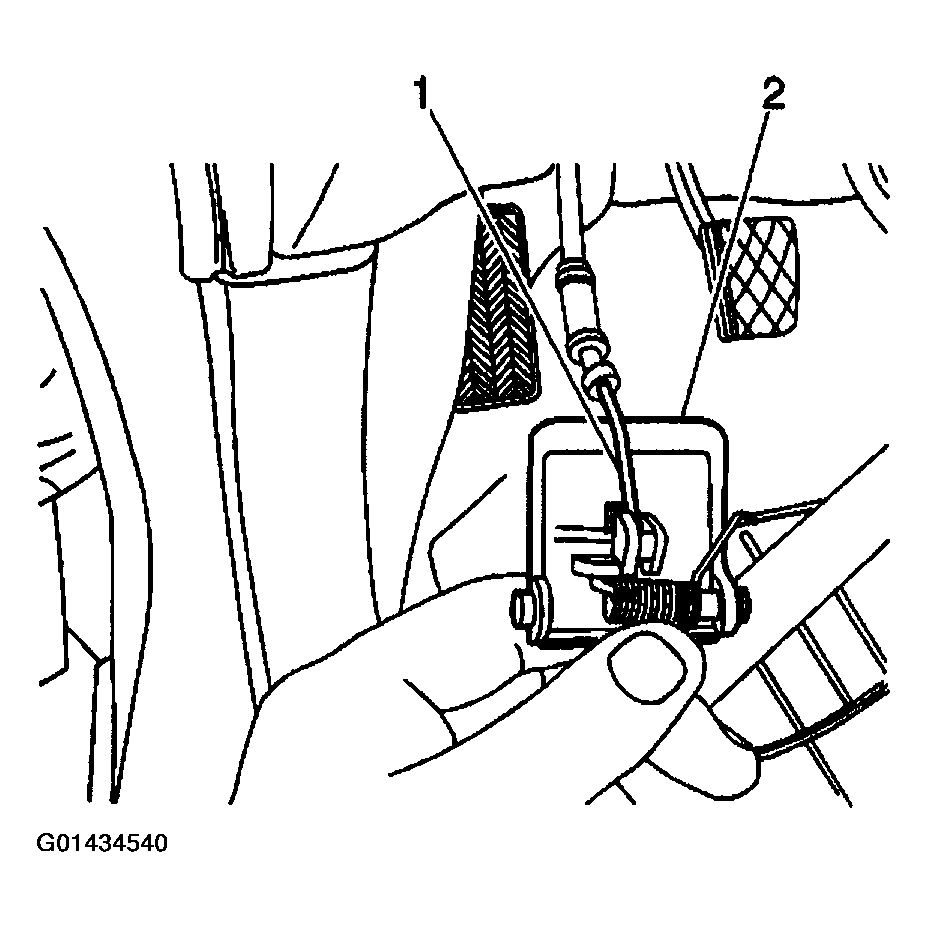

    Fig 2: Removing Hood Latch Release Cable From Hood Latch Release Handle
    G01434540Courtesy of GENERAL MOTORS CORP.
