Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood latch release cable (1) to the hood latch release handle (2).

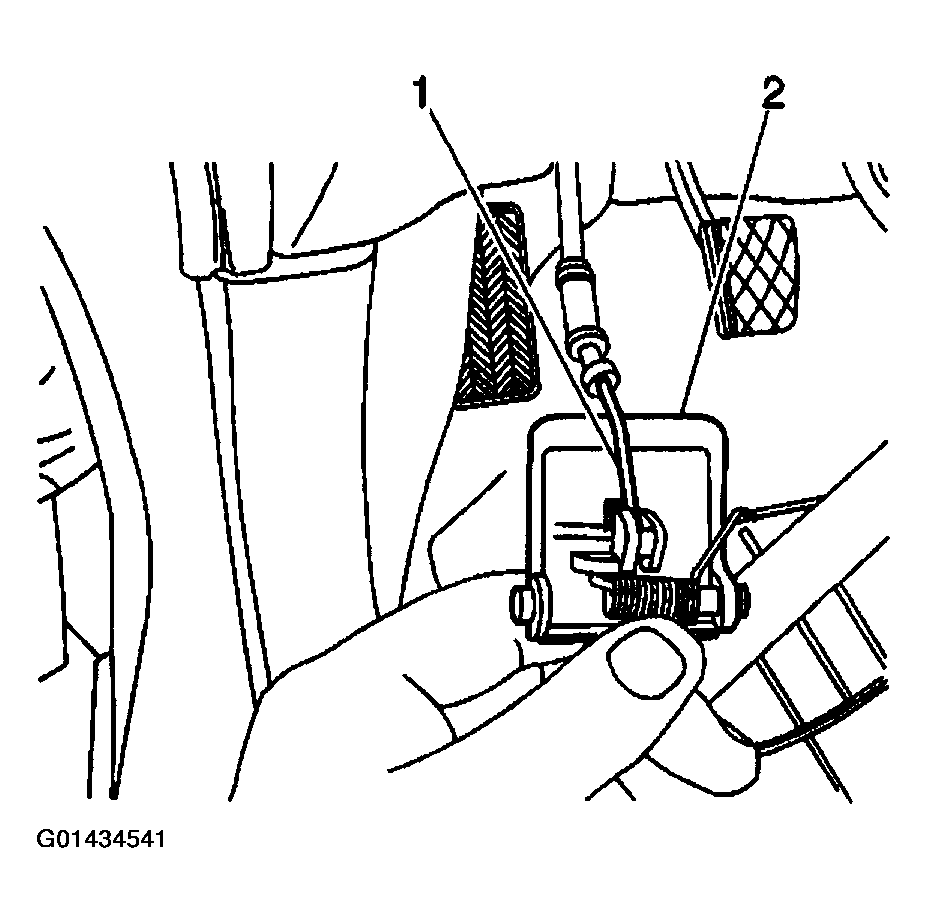

    Fig 1: Installing Hood Latch Release Cable To Hood Latch Release Handle
    G01434541Courtesy of GENERAL MOTORS CORP.
  2. Install the hood release latch handle (1) to the I/P drivers knee bolster trim (2).

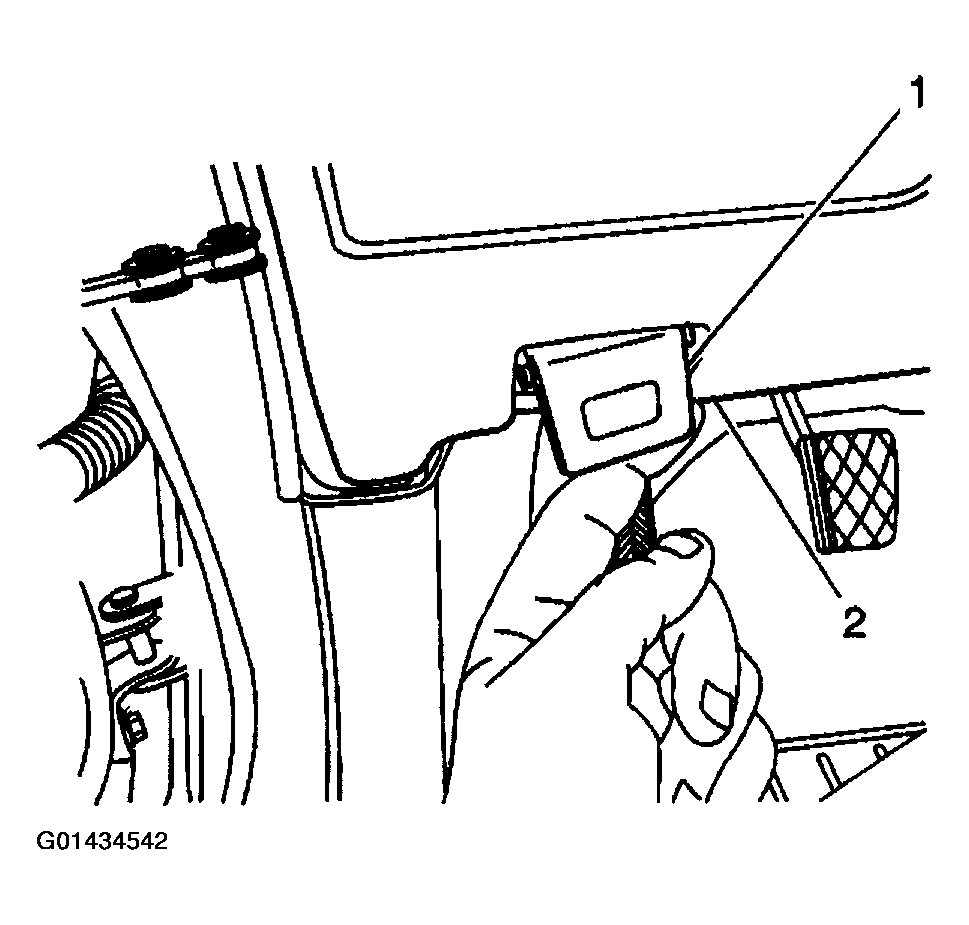

    Fig 2: Installing Hood Release Latch Handle To I/P Drivers Knee Bolster Trim
    G01434542Courtesy of GENERAL MOTORS CORP.
