Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the hood.
  2. Remove the following components from the hood (2):
    • The 8 plastic retainers
    • The hood insulator (1)

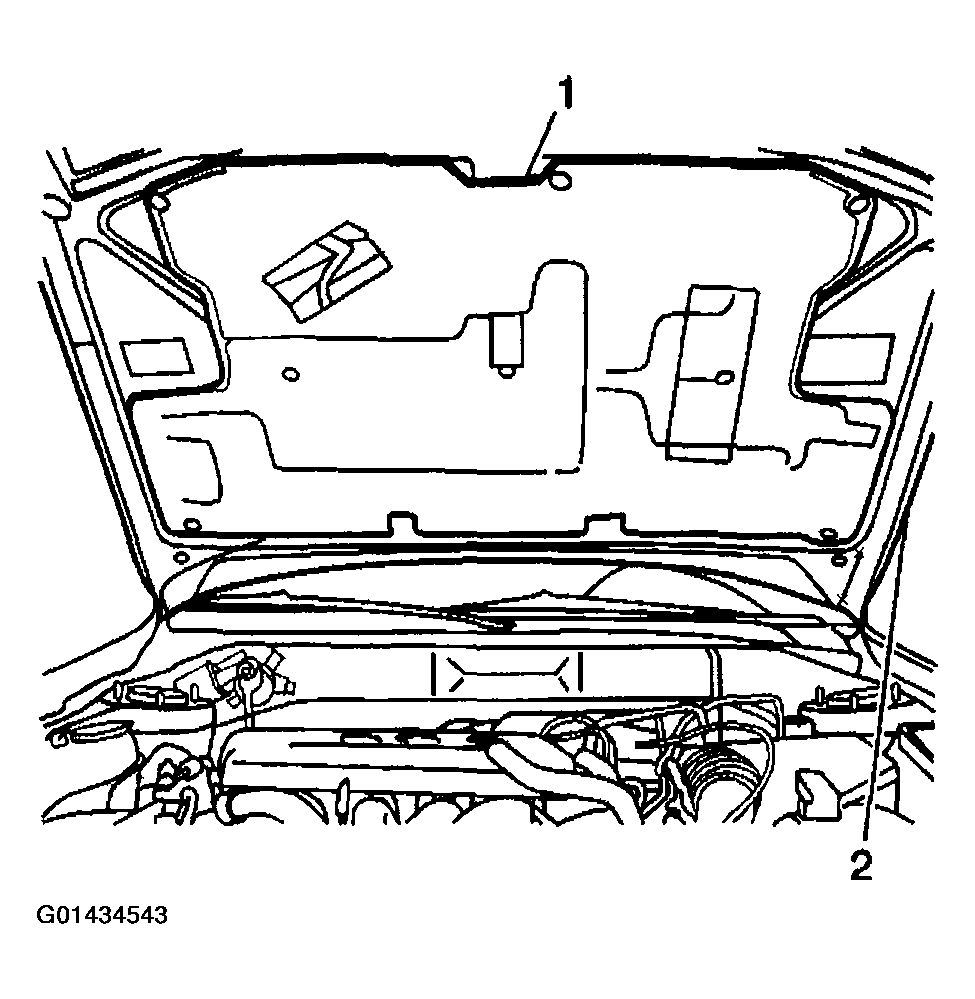

      Fig 1: Removing Hood Insulator From Hood
      G01434543Courtesy of GENERAL MOTORS CORP.
