Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood front bumper (1). Turn the bumper all the way down.
  2. Perform the vertical hood adjustment. Refer to HOOD ADJUSTMENT  .
  3. Lower the hood.

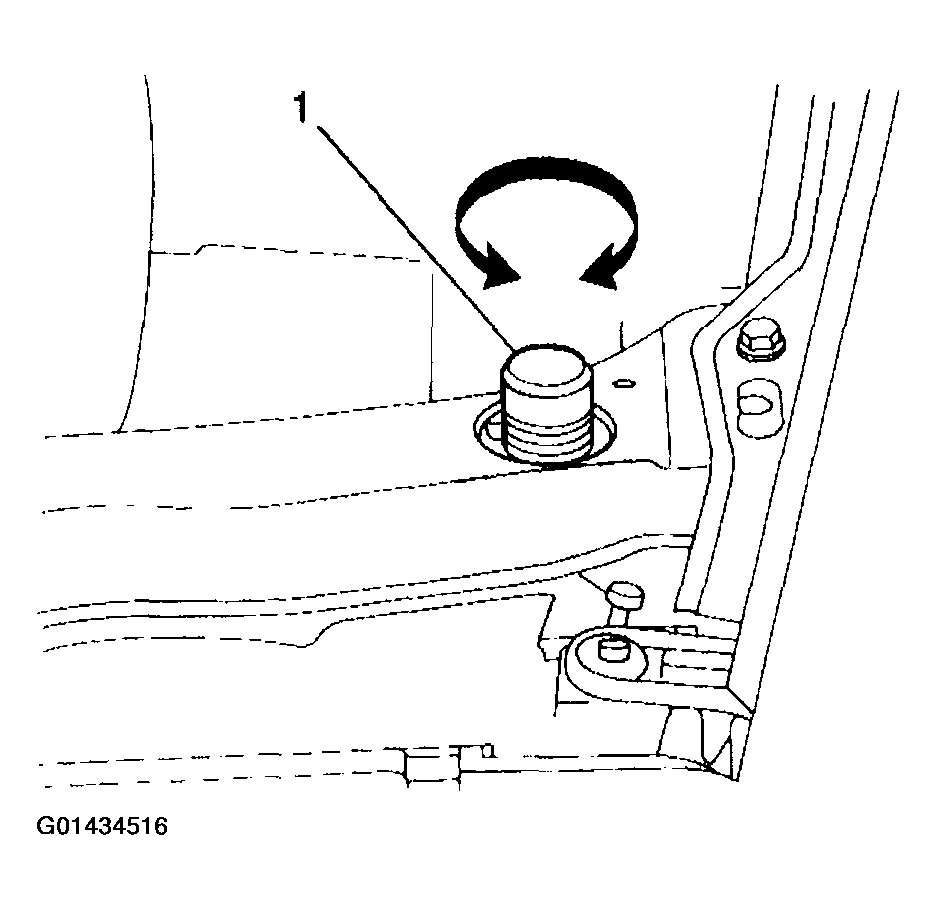

    Fig 1: Installing Hood Front Bumper
    G01434516Courtesy of GENERAL MOTORS CORP.
