Vertical Adjustment
WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
- Raise the hood.

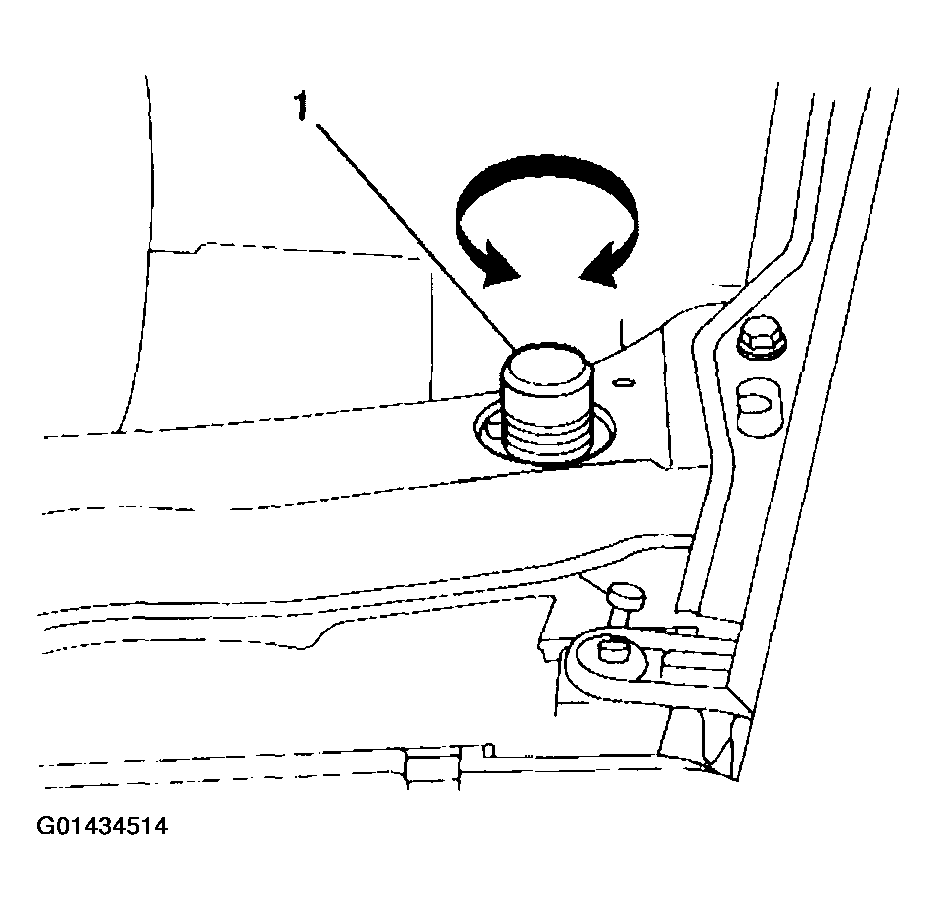

- Rotate the hood bumpers (1).
- Adjust the height of the hood bumpers (1) until hood front clearances are flush at a measurement of within -1.5 to +1.5 mm (-0.06 to +0.06).
- Lower the hood.
Courtesy of GENERAL MOTORS CORP.
