Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing body panels, apply tape to corners of panel and adjacent surfaces to help prevent paint damage.

Raise and support the hood.
Remove the right fender flare. Refer to FLARE REPLACEMENT - FRONT FENDER in Exterior Trim.
Remove the right wheelhouse panel (1). Refer to WHEELHOUSE PANEL REPLACEMENT .
Remove the front fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER in Bumpers.
Remove the right rocker molding. Refer to MOLDING REPLACEMENT - ROCKER PANEL in Exterior Trim.
Remove the right head lamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT in Lighting Systems.
Remove hood assist rod. Refer to HOOD HOLD-OPEN ROD REPLACEMENT .
Remove right rear inner fender splash guard.

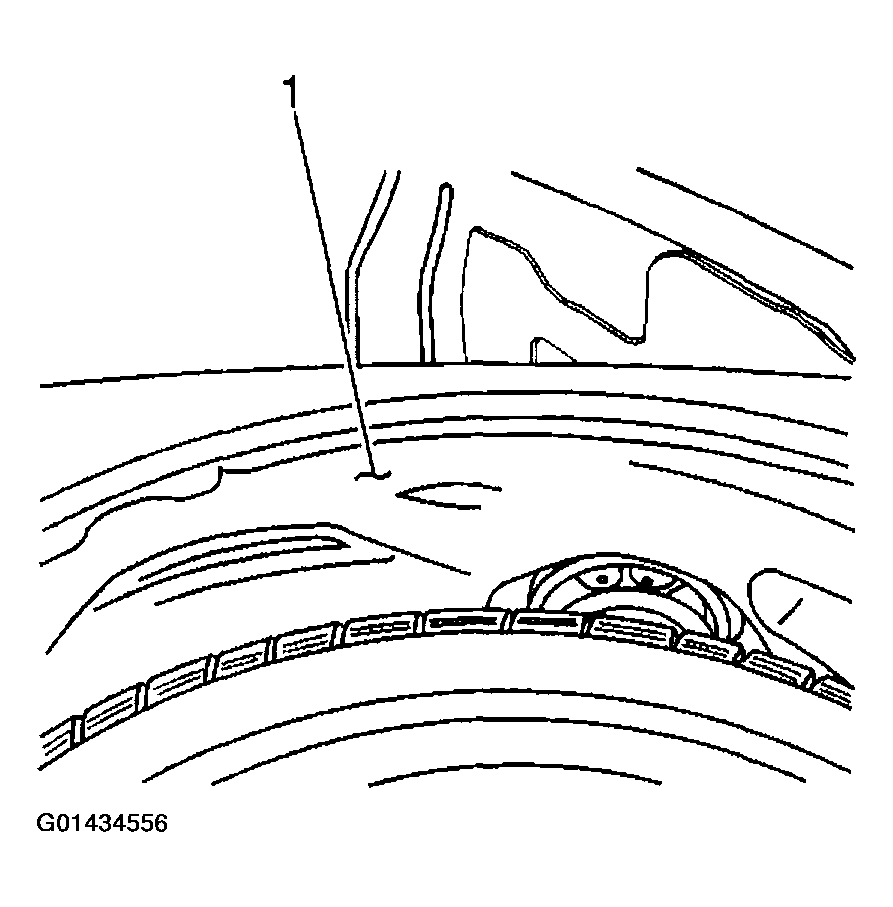

Fig 1: Removing Right Wheelhouse Panel
Courtesy of GENERAL MOTORS CORP.
Remove the right front fender (1) to rocker panel bolt.

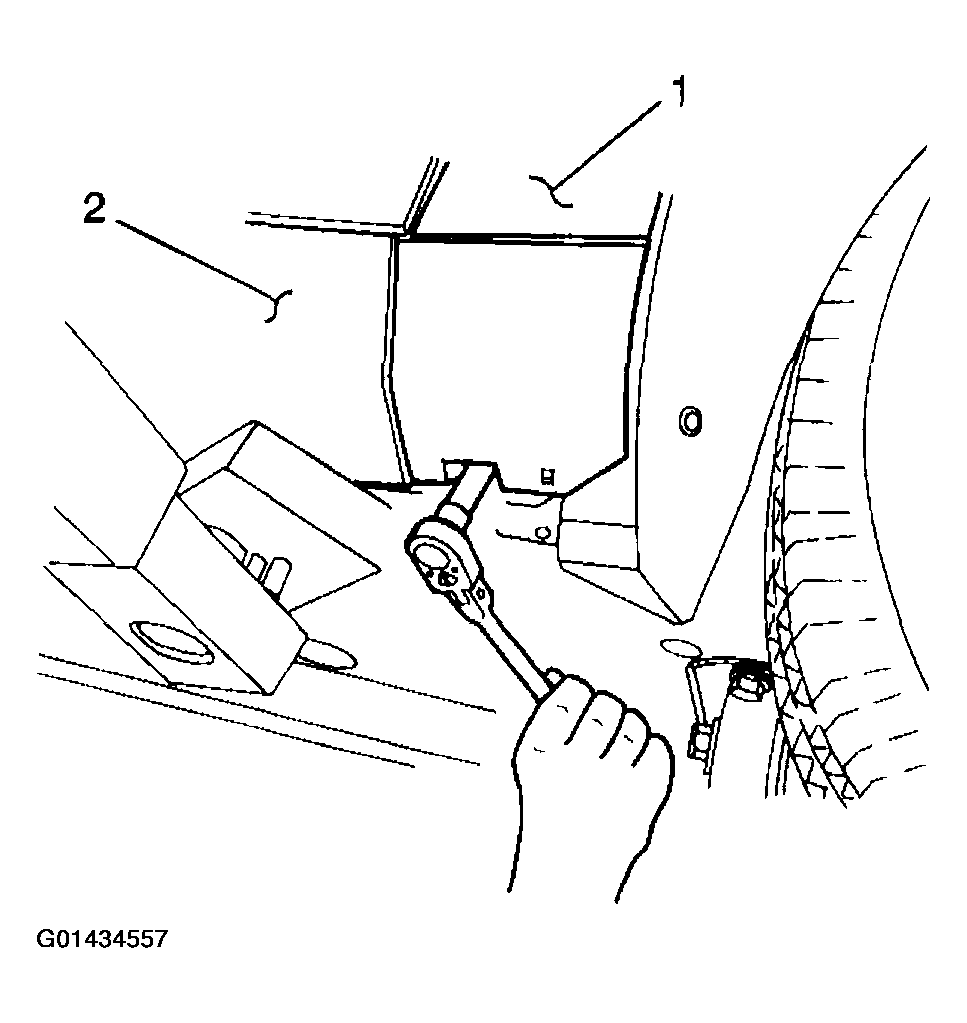

Fig 2: Removing Right Front Fender To Rocker Panel Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the 2 right front fender to door jamb (3) bolts.

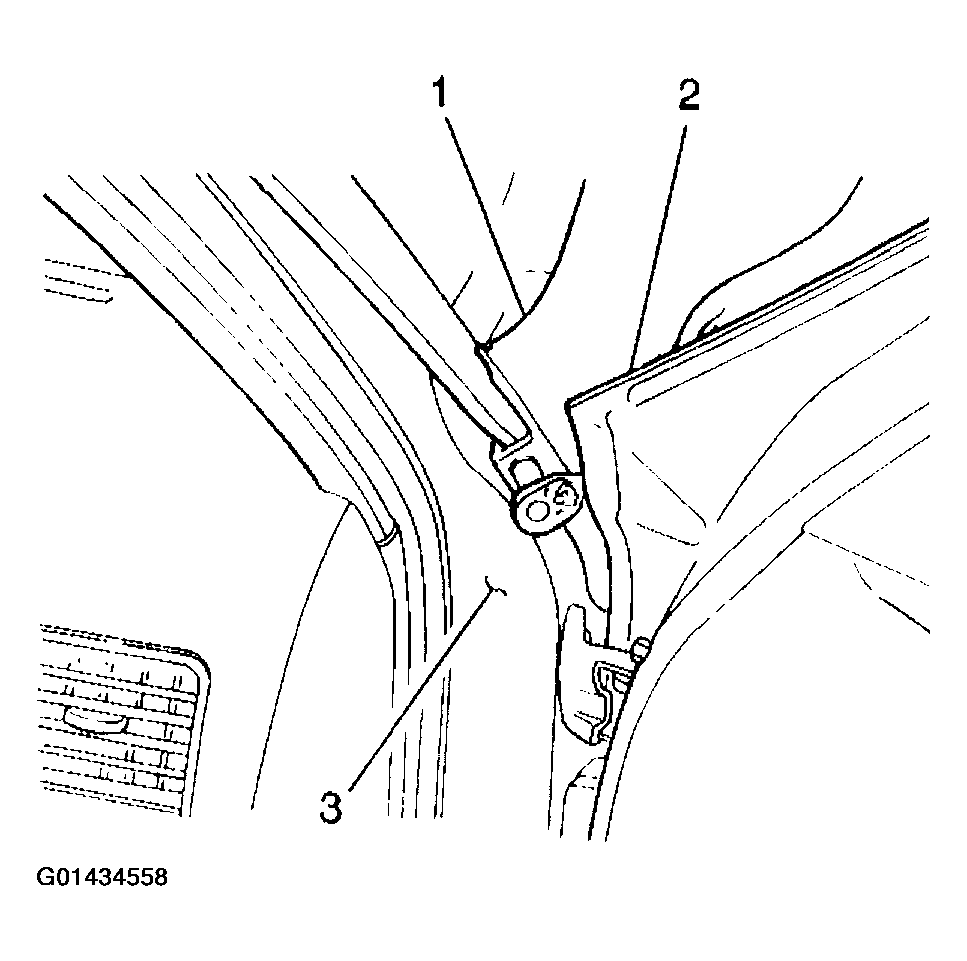

Fig 3: Removing Right Front Fender To Door Jamb Bolts
Courtesy of GENERAL MOTORS CORP.

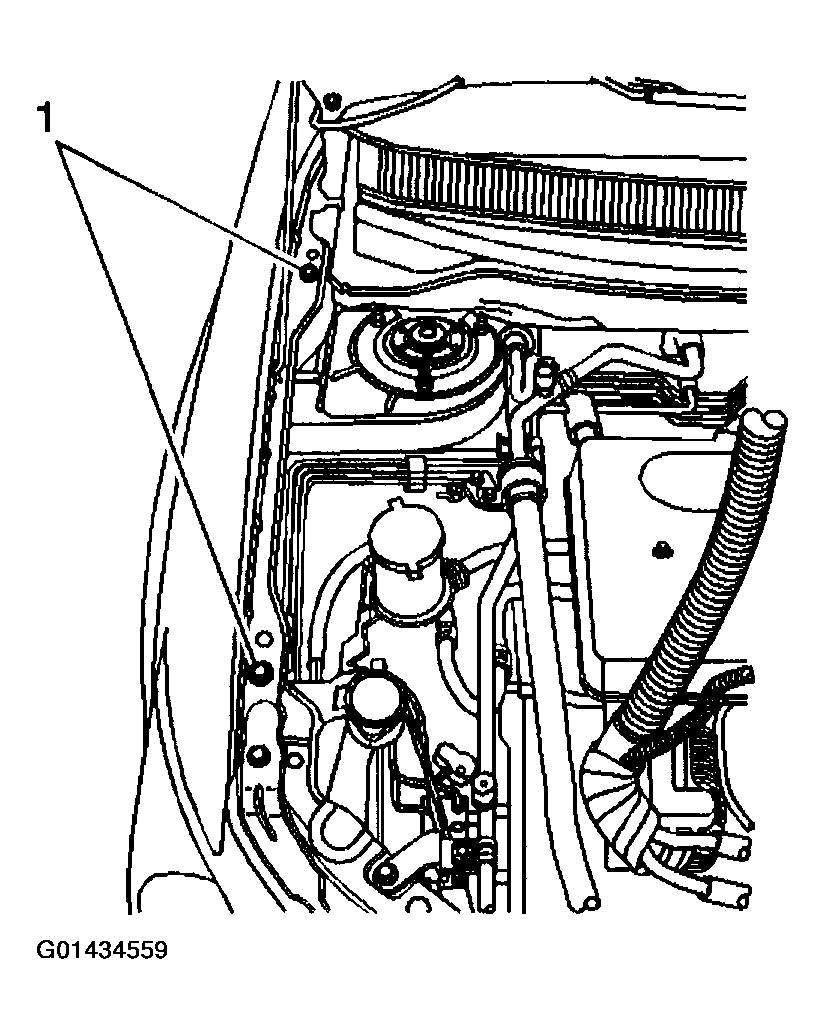

Remove the top 2 right front fender bolts (1).

Fig 4: Removing Top Right Front Fender Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the 1 bolt (2) from the front of the right front fender.
Remove the right front fender (1) from the vehicle.

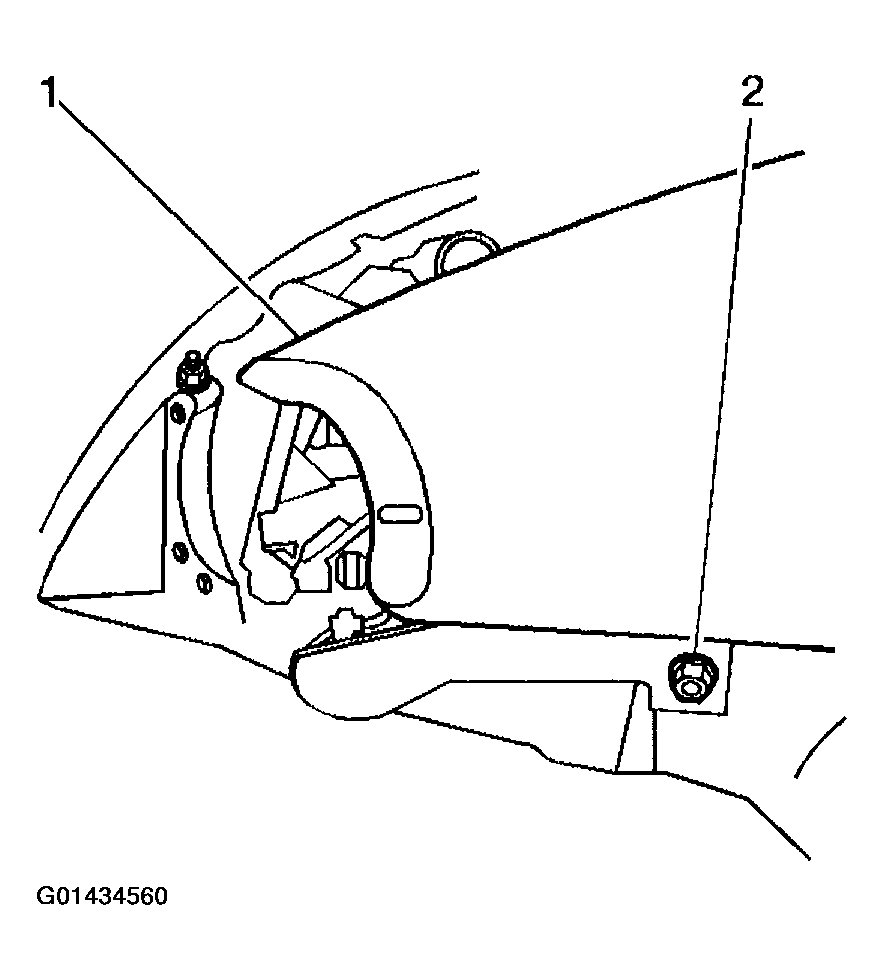

Fig 5: Removing Bolt From Front Of Right Front Fender
