Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

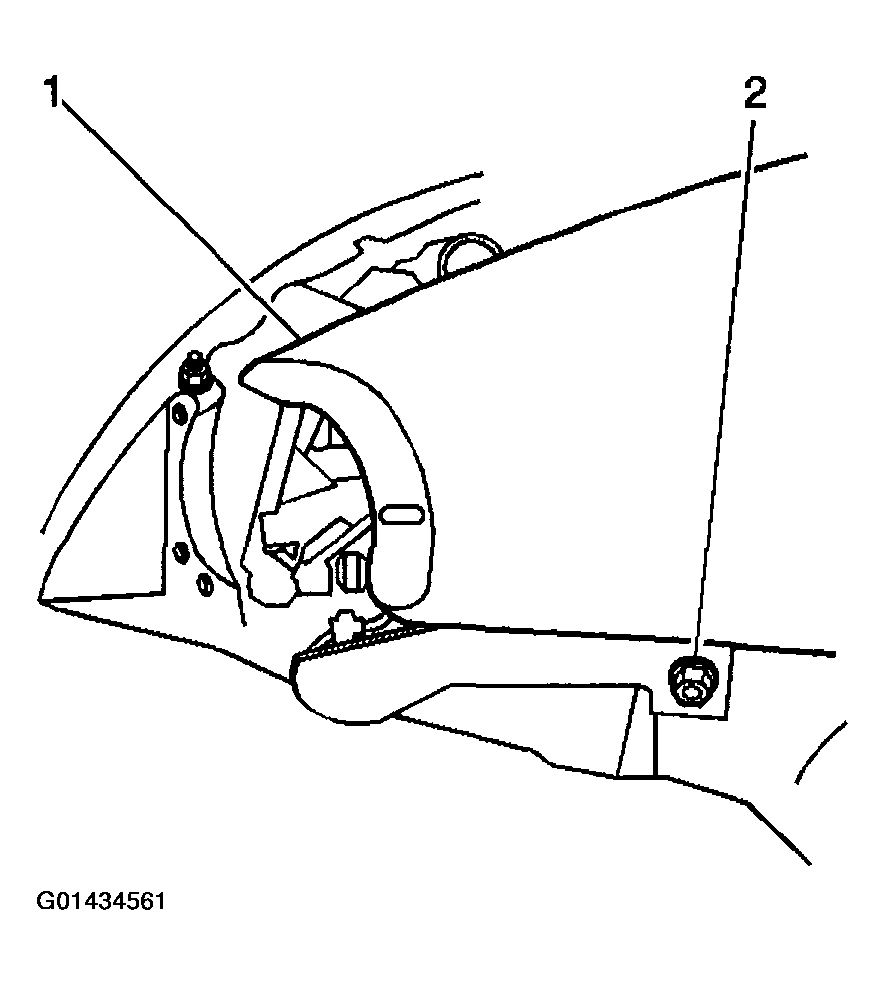

Install the front fender (1) to the vehicle. Secure the fender with the 1 bolt (2).
Tighten

Tighten the front fender bolt to 20 N.m (15 lb ft).

Fig 1: Installing Front Fender & Bolt To Vehicle
Courtesy of GENERAL MOTORS CORP.

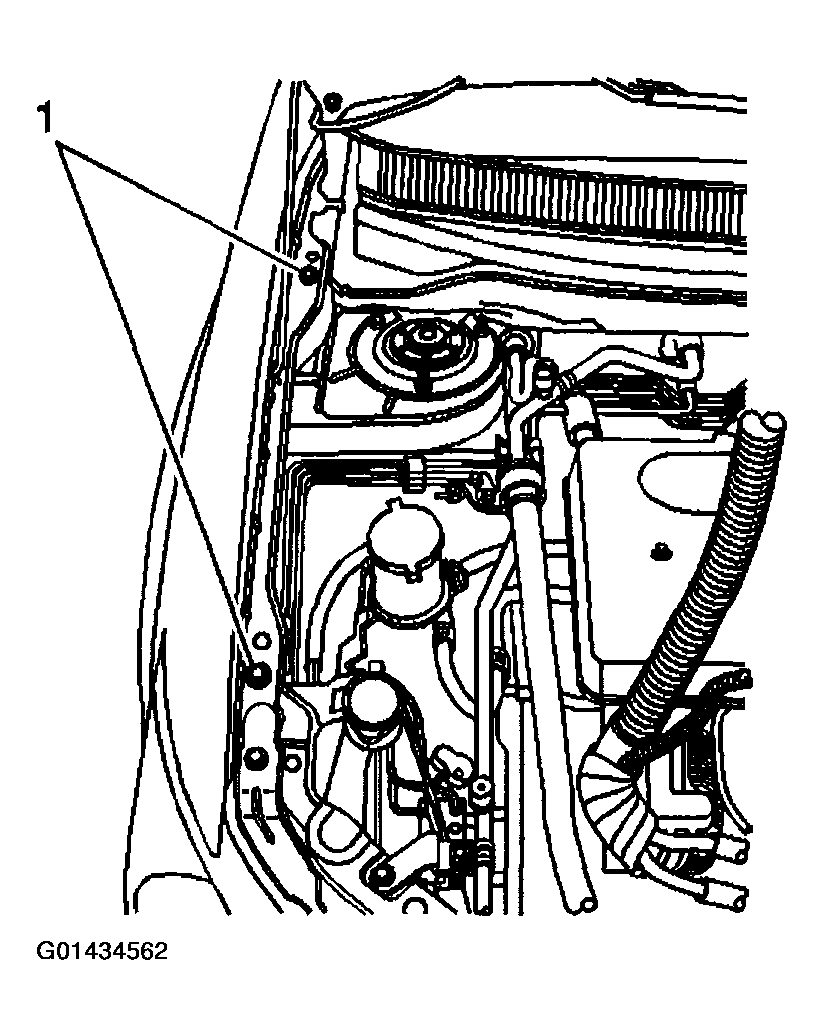

Install the top 2 front fender (1) bolts.
Tighten

Tighten the top front fender bolts to 20 N.m (15 lb ft).

Fig 2: Installing Top Front Fender Bolts
Courtesy of GENERAL MOTORS CORP.

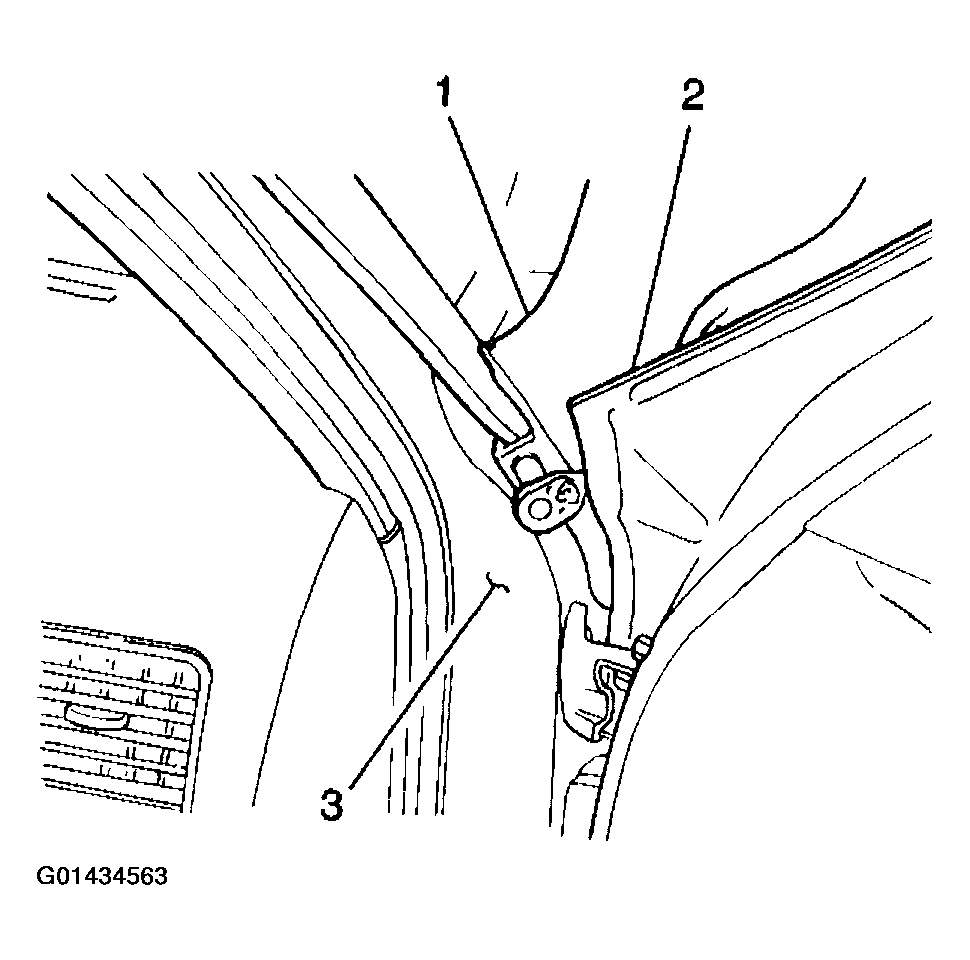

Install the 2 door jamb (3) to front fender bolts.
Tighten

Tighten the door jamb to front fender bolts to 20 N.m (15 lb ft).

Fig 3: Installing Door Jamb To Front Fender Bolts
Courtesy of GENERAL MOTORS CORP.

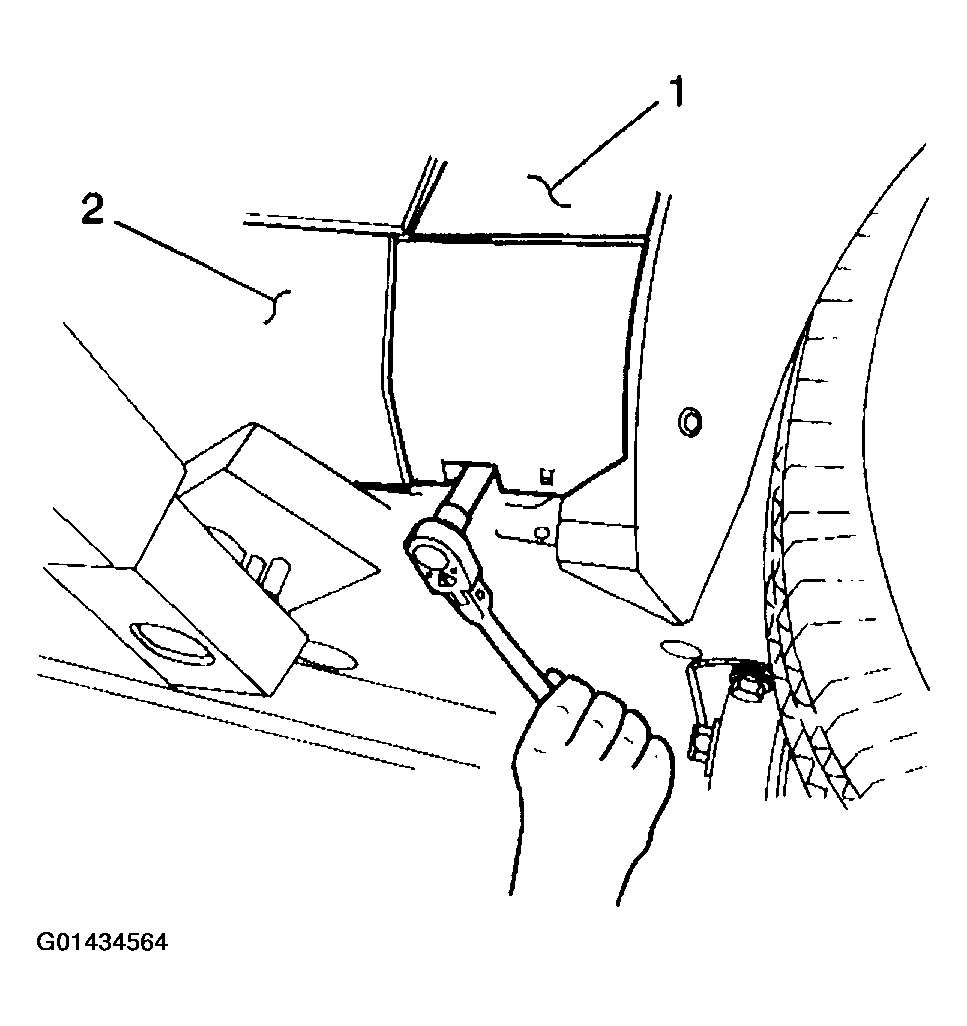

Install the front fender (1) to rocker panel bolt.
Tighten

Tighten the front fender to rocker panel bolt to 20 N.m (15 lb ft).
Install right fender rear inner splash guard.

Fig 4: Installing Front Fender To Rocker Panel Bolt
Courtesy of GENERAL MOTORS CORP.
Install hood assist rod. Refer to HOOD HOLD-OPEN ROD REPLACEMENT .
Install right headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT in Lighting Systems.
Install the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER in Bumpers.
Install the right rocker panel molding. Refer to MOLDING REPLACEMENT - ROCKER PANEL in Exterior Trim.
Install the right wheel house panel. Refer to WHEELHOUSE PANEL REPLACEMENT .
Install the right fender flare. Refer to FLARE REPLACEMENT - FRONT FENDER in Exterior Trim.
Close hood panel.
