Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When removing body panels, apply tape to corners of panel and adjacent surfaces to help prevent paint damage.
  1. Raise and support the hood.
  2. Remove the left fender flare. Refer to FLARE REPLACEMENT - FRONT FENDER in Exterior Trim.
  3. Remove the left wheelhouse panel (1). Refer to WHEELHOUSE PANEL REPLACEMENT  .
  4. Remove the front fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER in Bumpers.
  5. Remove the left rocker molding. Refer to MOLDING REPLACEMENT - ROCKER PANEL in Exterior Trim.
  6. Remove the left headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT in Lighting Systems.
  7. Remove left rear inner fender splash guard.

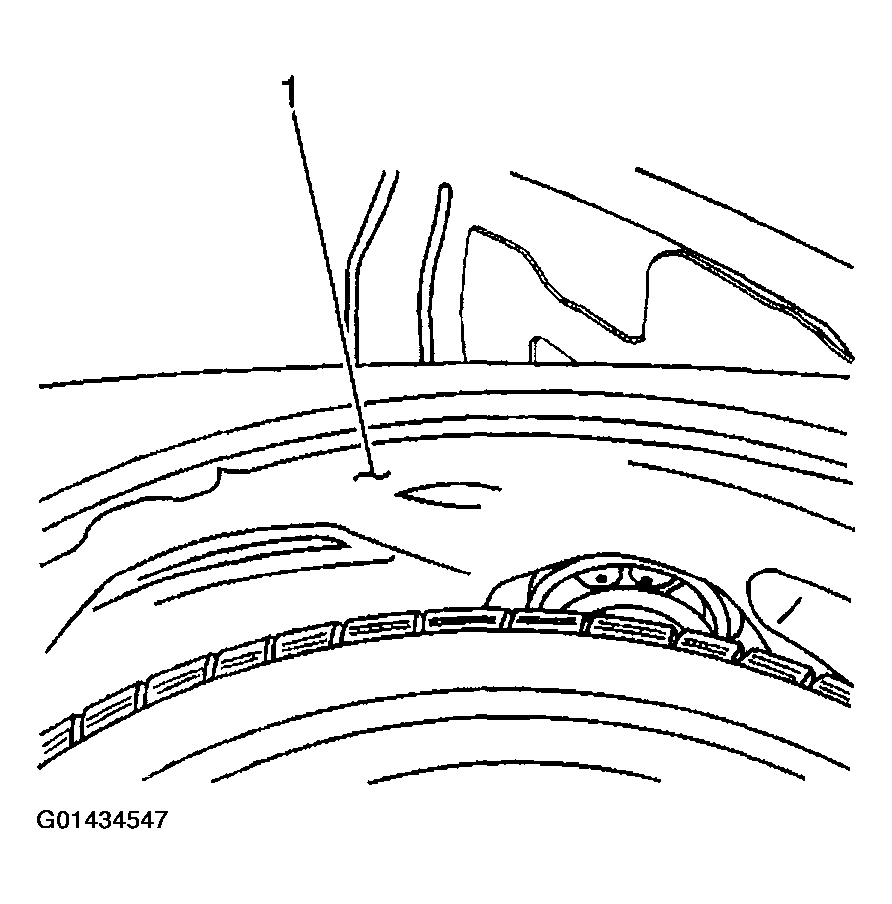

    Fig 1: Removing Left Wheelhouse Panel
    G01434547Courtesy of GENERAL MOTORS CORP.
  8. Remove the front fender (1) to rocker panel bolt.

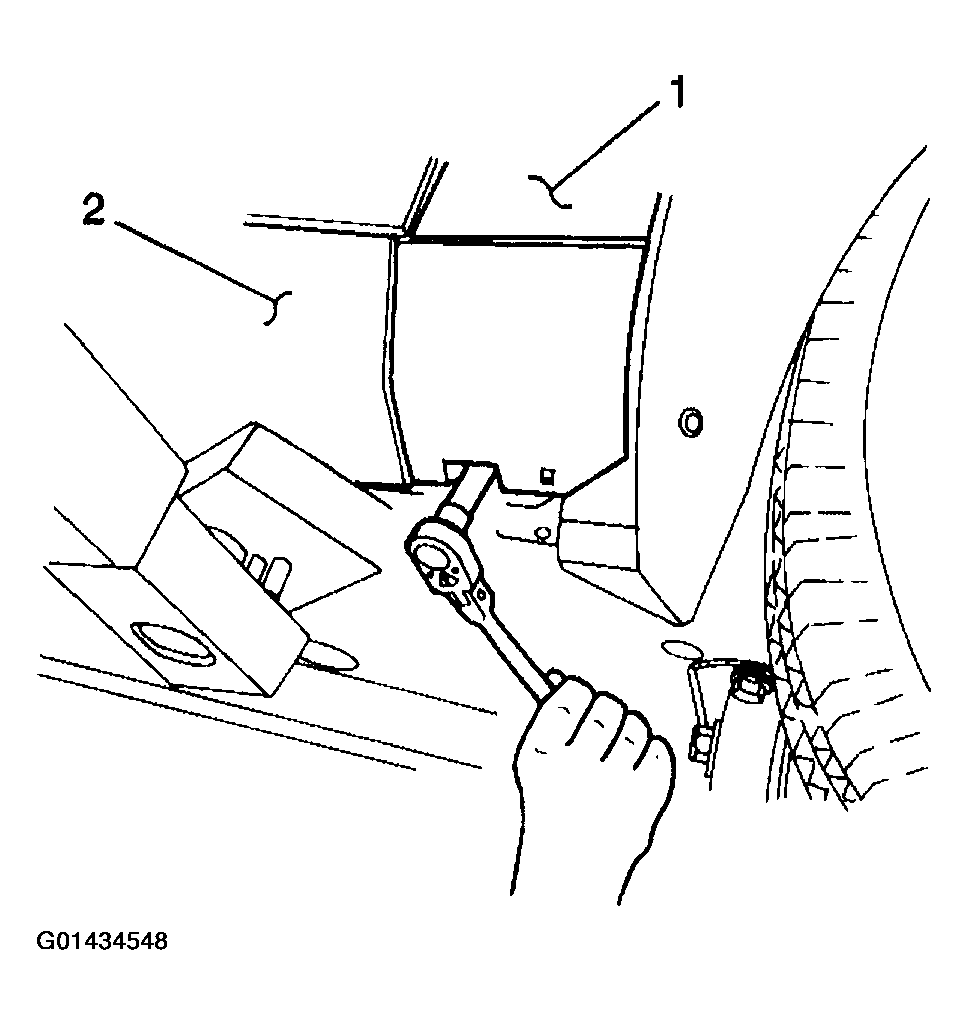

    Fig 2: Removing Front Fender To Rocker Panel Bolt
    G01434548Courtesy of GENERAL MOTORS CORP.
  9. Remove the 2 front fender to door jamb (3) bolts.

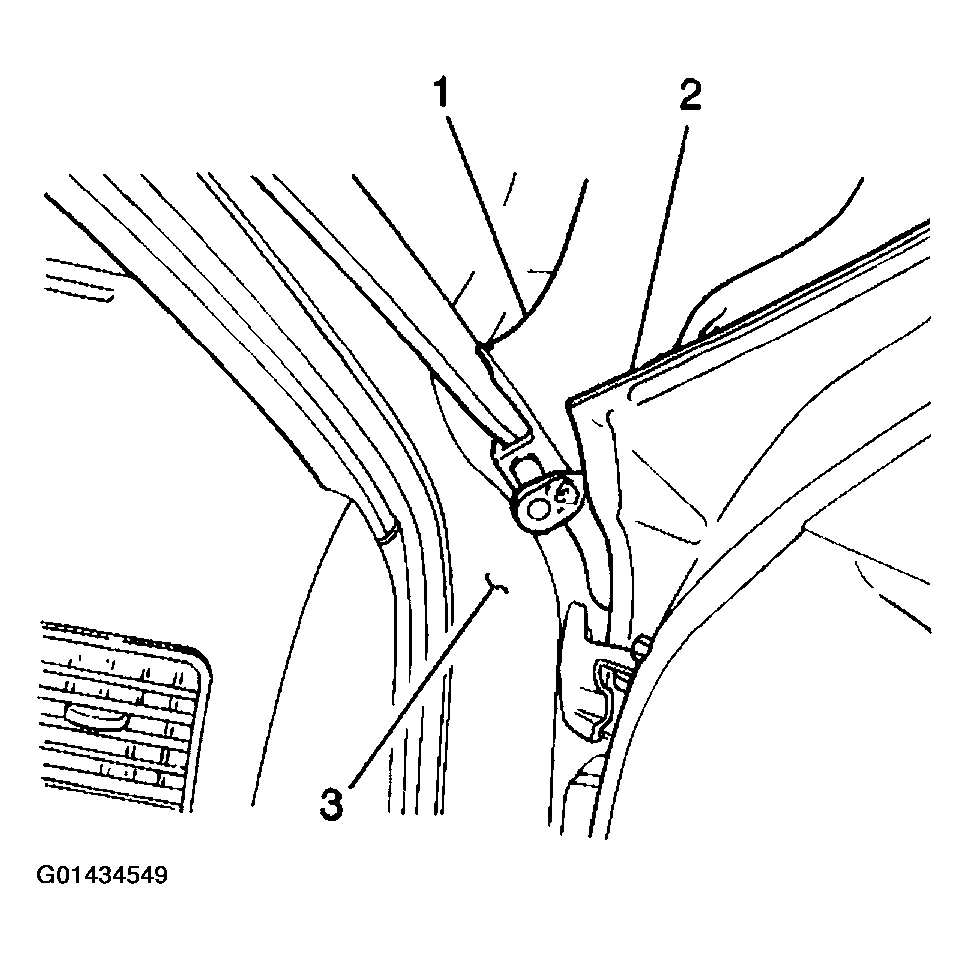

    Fig 3: Removing Front Fender To Door Jamb Bolts
    G01434549Courtesy of GENERAL MOTORS CORP.
  10. Remove the top 2 front fender bolts (1).

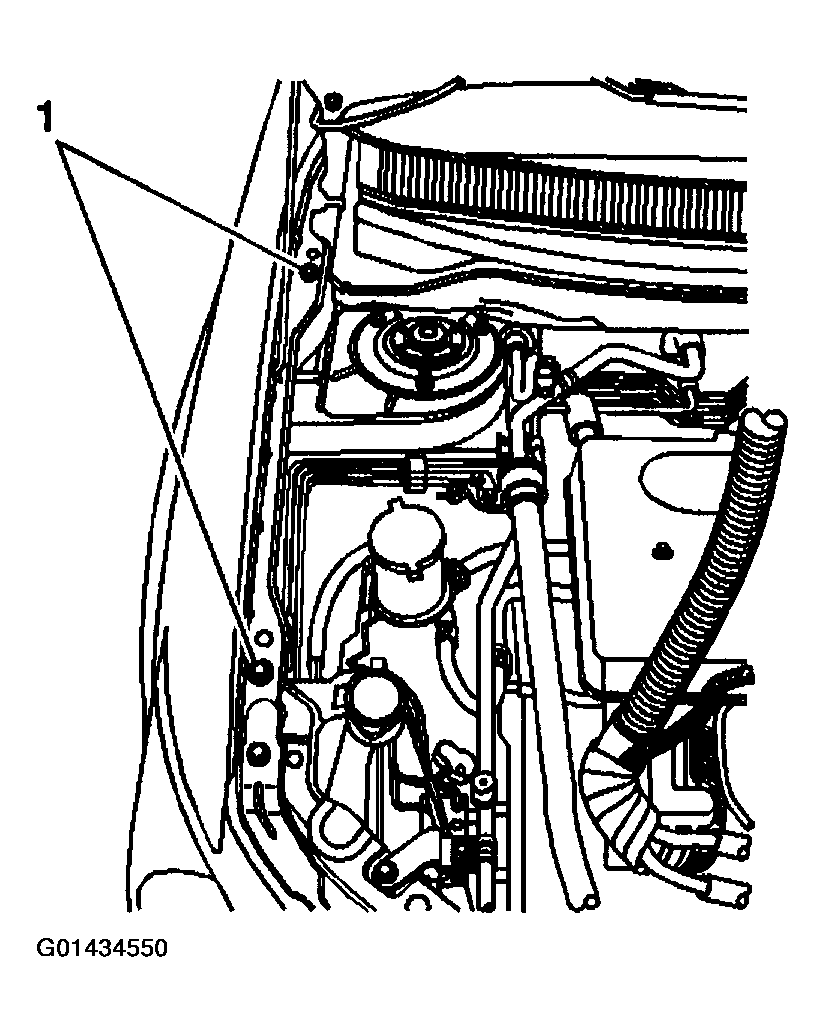

    Fig 4: Removing Top Front Fender Bolts
    G01434550Courtesy of GENERAL MOTORS CORP.
  11. Remove the 1 bolt (2) from the front of the left front fender.
  12. Remove the left front fender (1) from the vehicle.

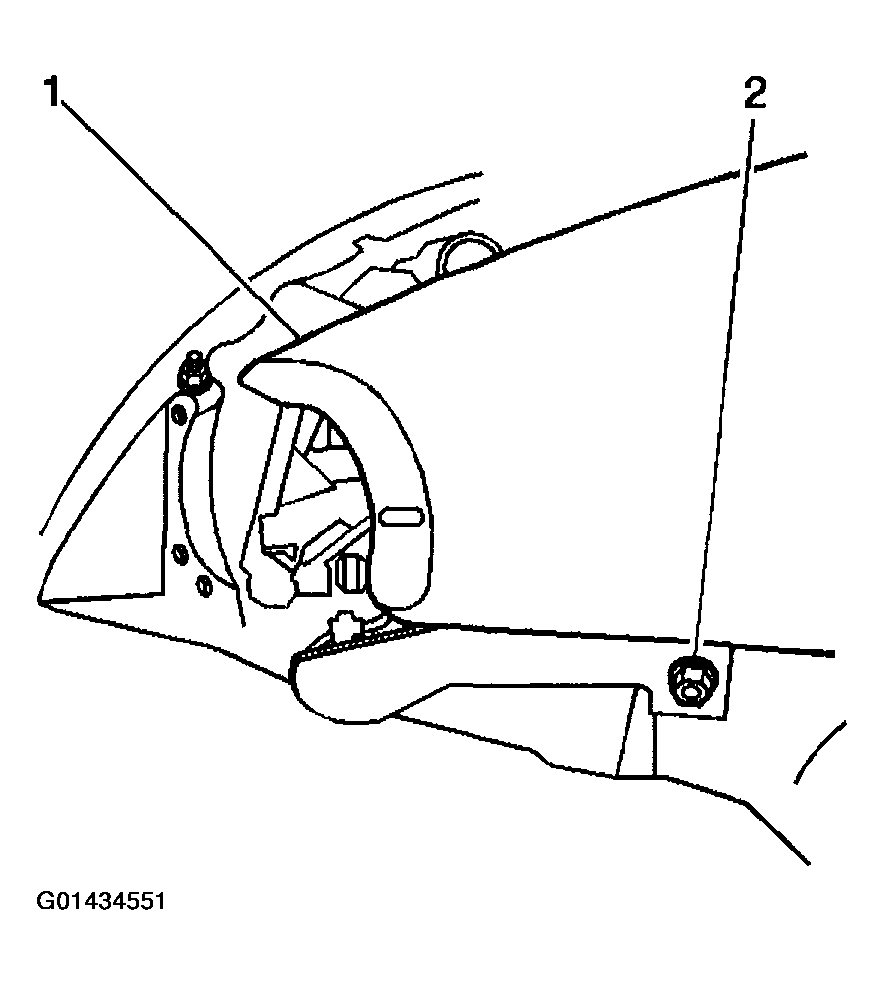

    Fig 5: Removing Bolt From Front Of Left Front Fender
    G01434551Courtesy of GENERAL MOTORS CORP.
