Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER  .
  2. Remove the rear bumper fascia energy absorber. Refer to ENERGY ABSORBER REPLACEMENT - REAR  .
  3. Remove the following components from the vehicle:
    • The 4 nuts (2)
    • The rear bumper impact bar (1)
    • The 4 push-in retainers (3) and the 2 rear bumper stays (4) from the impact bar (1), if necessary

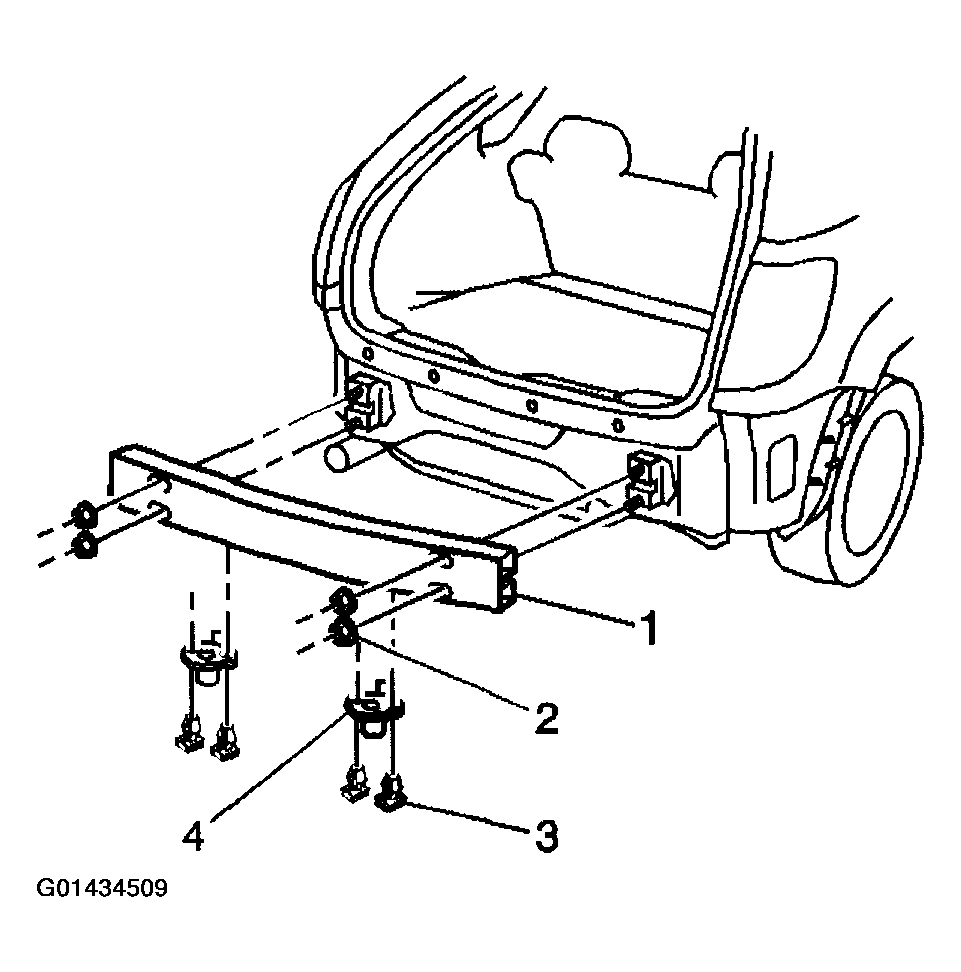

      Fig 1: Removing Rear Bumper Impact Bar
      G01434509Courtesy of GENERAL MOTORS CORP.
