Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER  .
  2. .
  3. Remove the 4 nuts (2) which secure the front bumper impact bar.

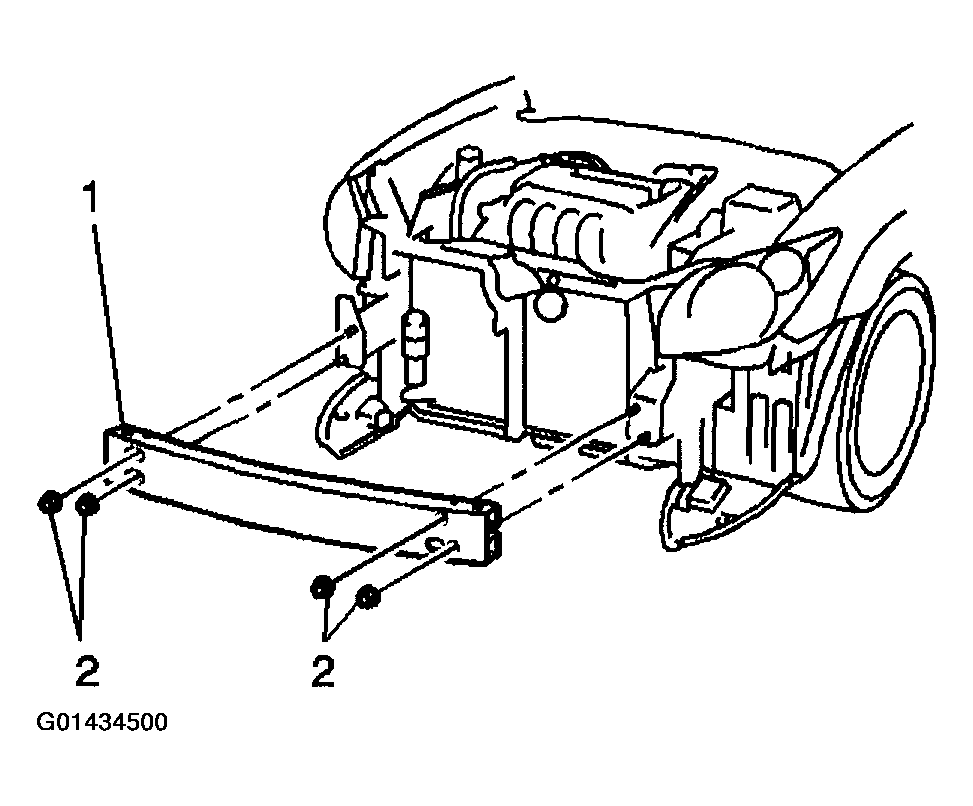

    Fig 1: Removing Front Bumper Fascia Energy Absorber From Front Bumper Impact Bar
    G01434500Courtesy of GENERAL MOTORS CORP.
  4. Remove the front bumper impact bar (1) from the front bumper impact bar outer brackets.

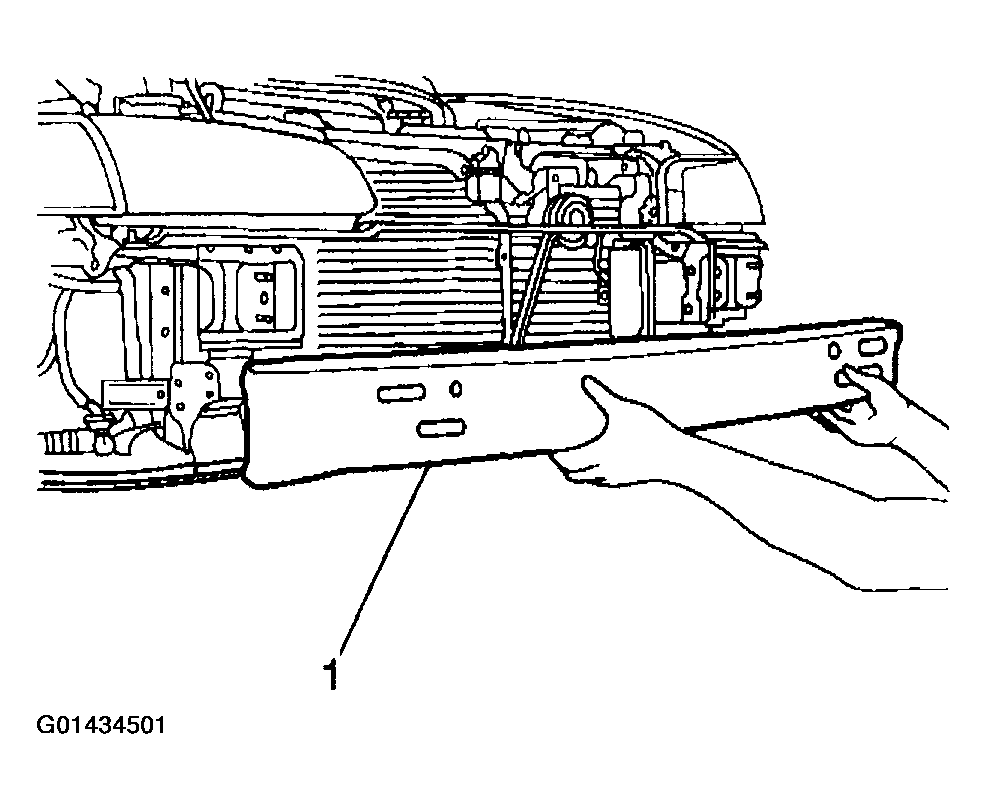

    Fig 2: Removing Front Bumper Impact Bar From Front Bumper Impact Bar Outer Brackets
    G01434501Courtesy of GENERAL MOTORS CORP.
