Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the front bumper impact bar (1) to the front bumper impact bar outer brackets. Secure the impact bar with the 4 nuts (2).

    Tighten

  2. Tighten the front bumper impact bar nuts to 36 N.m (26 lb ft).
  3. Install the front bumper fascia energy absorber from the front bumper impact bar.
  4. Install the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER  .

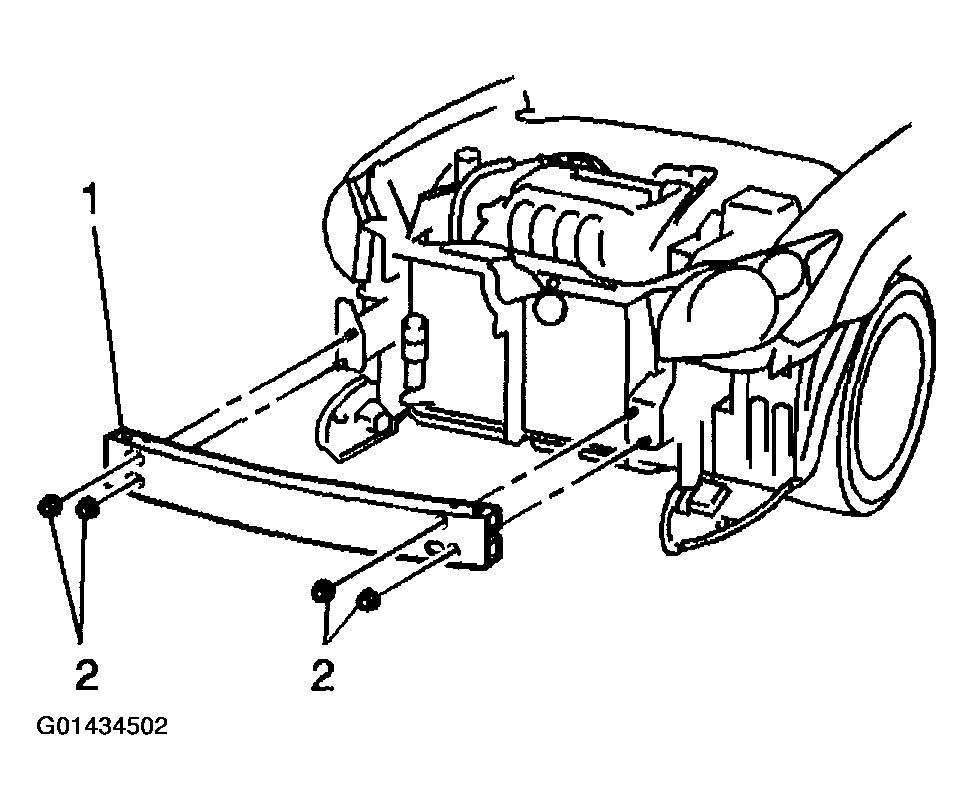

    Fig 1: Installing Front Bumper Impact Bar To Front Bumper Impact Bar Outer Brackets
    G01434502Courtesy of GENERAL MOTORS CORP.
