Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the endgate.
  2. Remove the rear door sill plate. Refer to DOOR SILL PLATE REPLACEMENT - LIFT GATE
  3. Remove the 4 retaining nuts (1) from the rear sill.
  4. Remove the 4 push-in retainers (3) from the rear bumper fascia (5), using the J 38778  .
  5. Remove the 2 screws (2) from the top right and left upper fascia.
  6. Remove the 2 screws (5) and retainers (4) from the right and left upper fascia.
  7. Disconnect the backup lamp electrical connectors. Refer to BACKUP LAMP REPLACEMENT
  8. Remove the rear bumper fascia (6) from the vehicle.
  9. Remove the backup lamps from the vehicle, if required. Refer to BACKUP LAMP REPLACEMENT

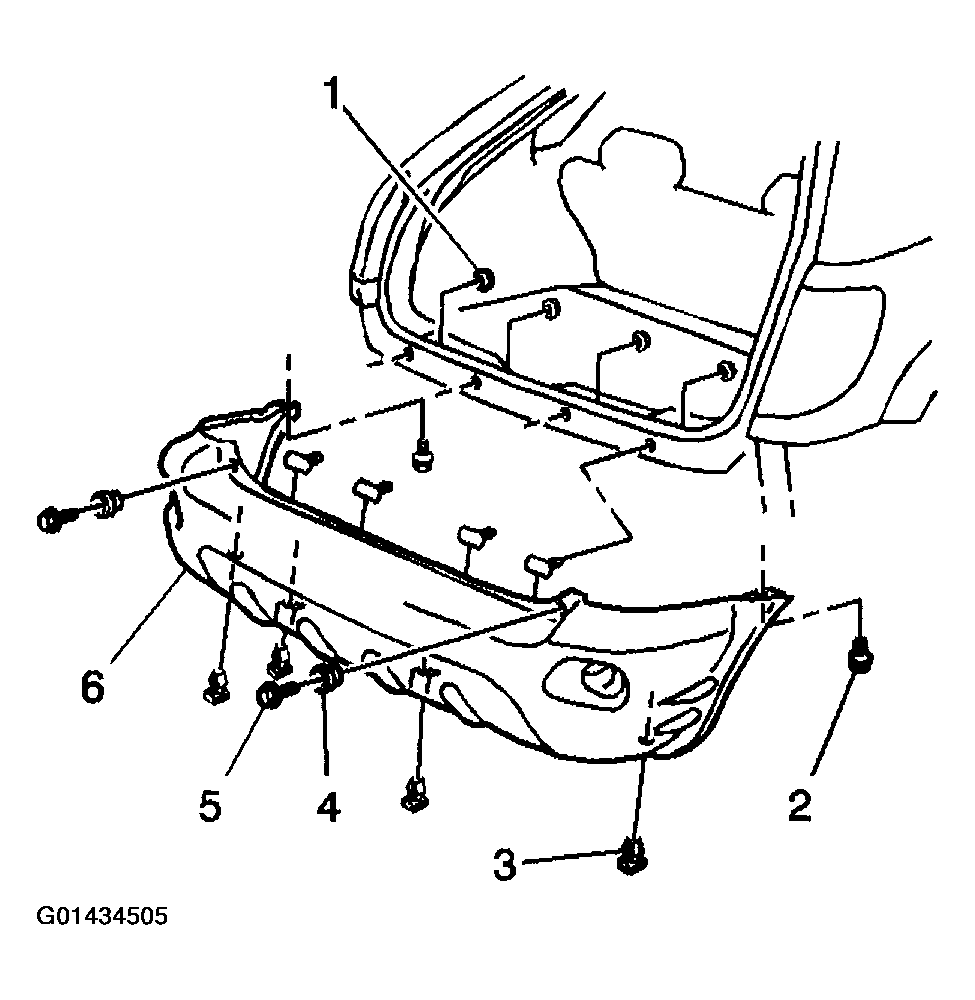

    Fig 1: Removing Rear Bumper Fascia From Vehicle
    G01434505Courtesy of GENERAL MOTORS CORP.
