Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the backup lamps to the rear fascia, if removed. Refer to BACKUP LAMP REPLACEMENT
  2. Position the rear fascia (6) to the vehicle.
  3. Install the 2 retainers (4) and screws (5) to the right and left upper fascia.
  4. Install the 2 screws (2) to the right and left upper fascia corners.
  5. Install the 4 push-in retainers (3) to the rear fascia (6).
  6. Install the 4 retaining nuts (1) to the rear sill.
  7. Install the rear sill plate. Refer to DOOR SILL PLATE REPLACEMENT - LIFT GATE
  8. Close the endgate.

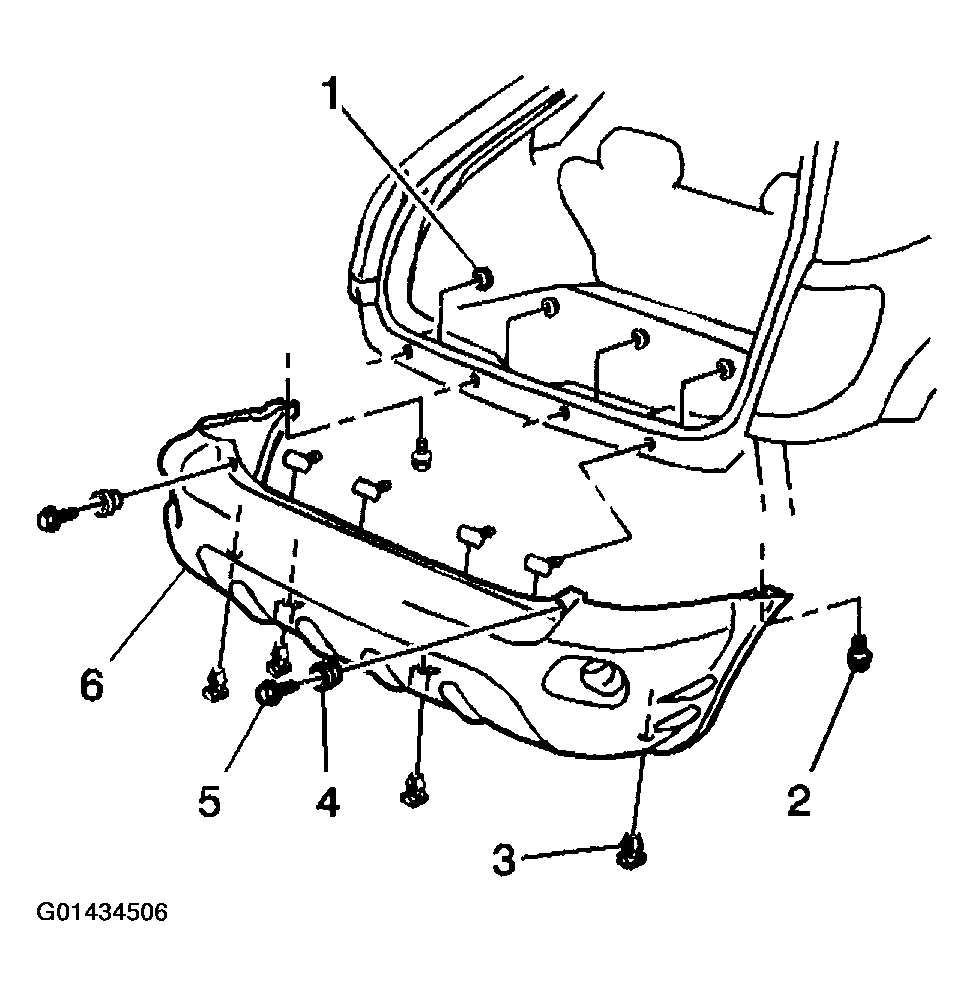

    Fig 1: Installing Rear Fascia To Vehicle
    G01434506Courtesy of GENERAL MOTORS CORP.
