Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 3 push in retainers (1) from the front upper fascia (4).
  2. Remove the 2 bolts (2) from the front upper fascia (4).
  3. Using a small flat-bladed tool, reach into the opening behind the front fascia and depress the retaining tabs that lock the front fascia grille (3) to the front fascia (4).
  4. Remove the grille (3) from the front fascia (4).

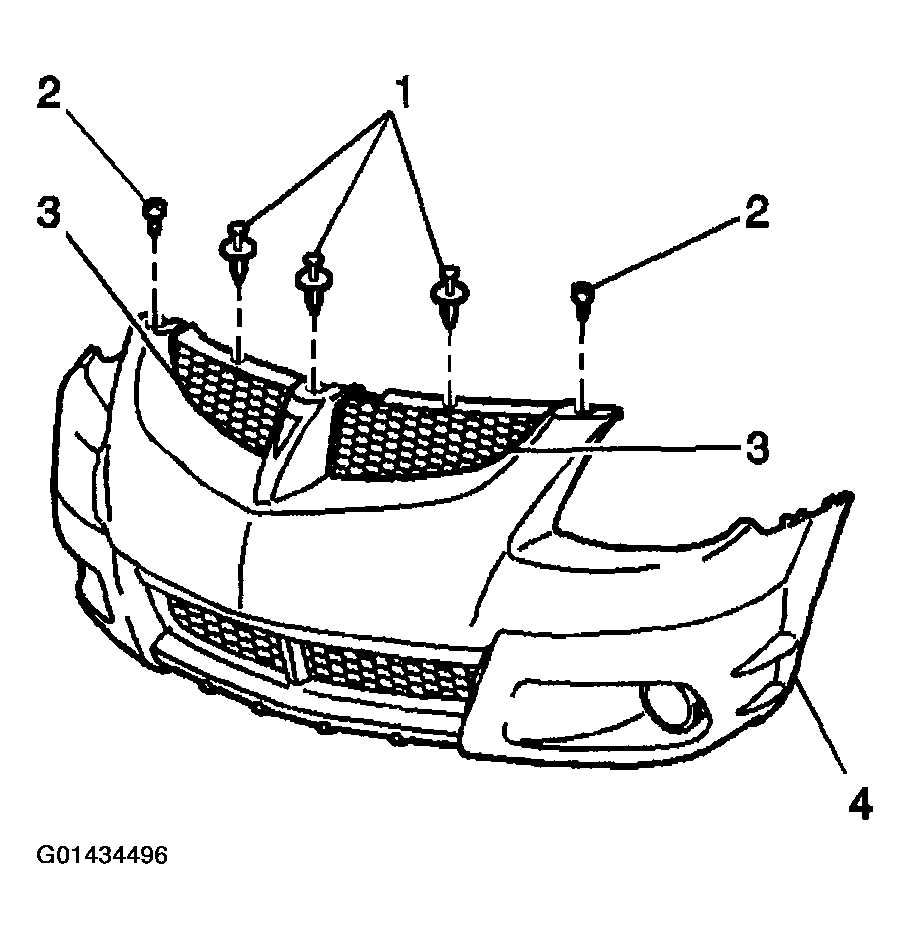

    Fig 1: Removing Grille From Front Fascia
    G01434496Courtesy of GENERAL MOTORS CORP.
