Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the grille retaining tabs to the slots in the front upper fascia (4).
  2. Install the grille (3) by pressing into place until the retaining tabs are fully seated.
  3. Install the 3 push in retainers (1) to the front upper fascia (4).
  4. Install the 2 bolts (2) to the front upper fascia (4).

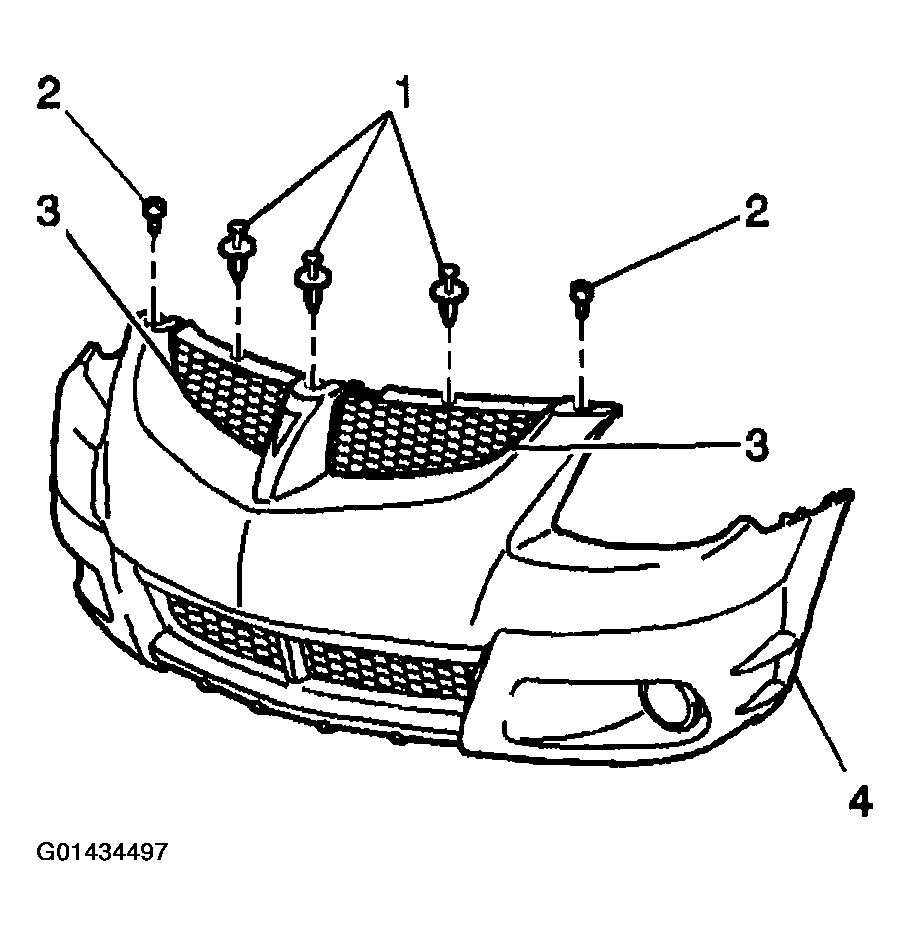

    Fig 1: Installing Grille
    G01434497Courtesy of GENERAL MOTORS CORP.
