Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER  .
  2. Remove the rear bumper fascia energy absorber (3) from the rear bumper impact bar (1).
  3. Remove the rear bumper bar center reinforcement (2) from the rear fascia energy absorber (3).

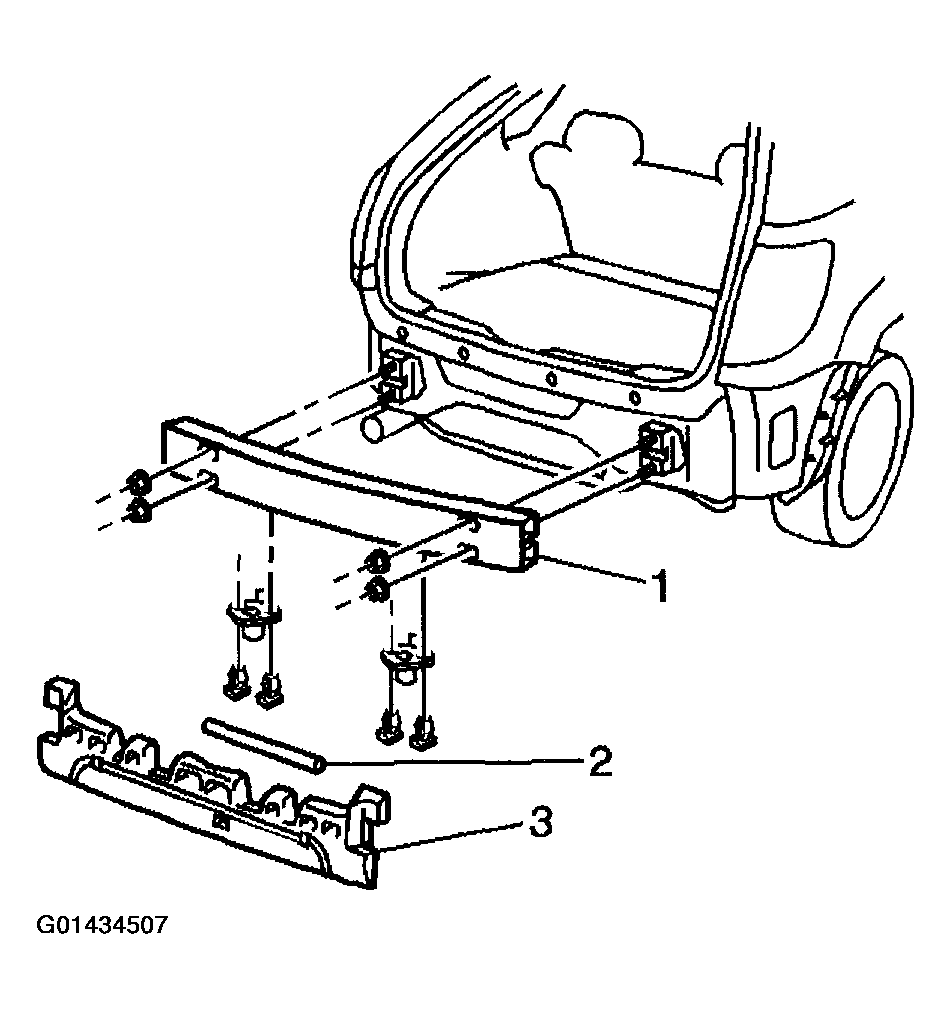

    Fig 1: Removing Rear Bumper Fascia Energy Absorber From Rear Bumper Impact Bar
    G01434507Courtesy of GENERAL MOTORS CORP.
