Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Install the rear bumper bar center reinforcement (2) to the rear fascia energy absorber (3).
Install the rear bumper fascia energy absorber (3) to the rear bumper impact bar (1).
Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER .

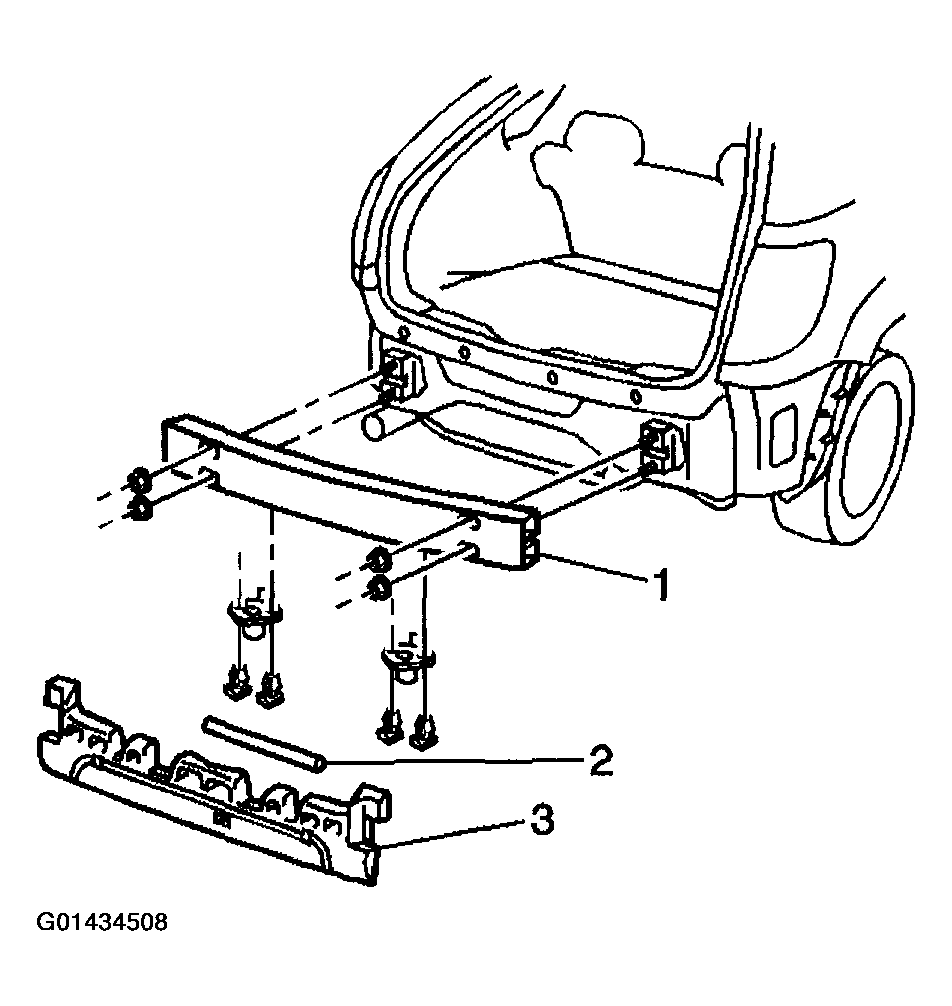

Fig 1: Installing Rear Bumper Bar Center Reinforcement To Rear Fascia Energy Absorber
Courtesy of GENERAL MOTORS CORP.
