Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front bumper fascia energy absorber (1) to the front bumper impact bar.
  2. Install the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER  .

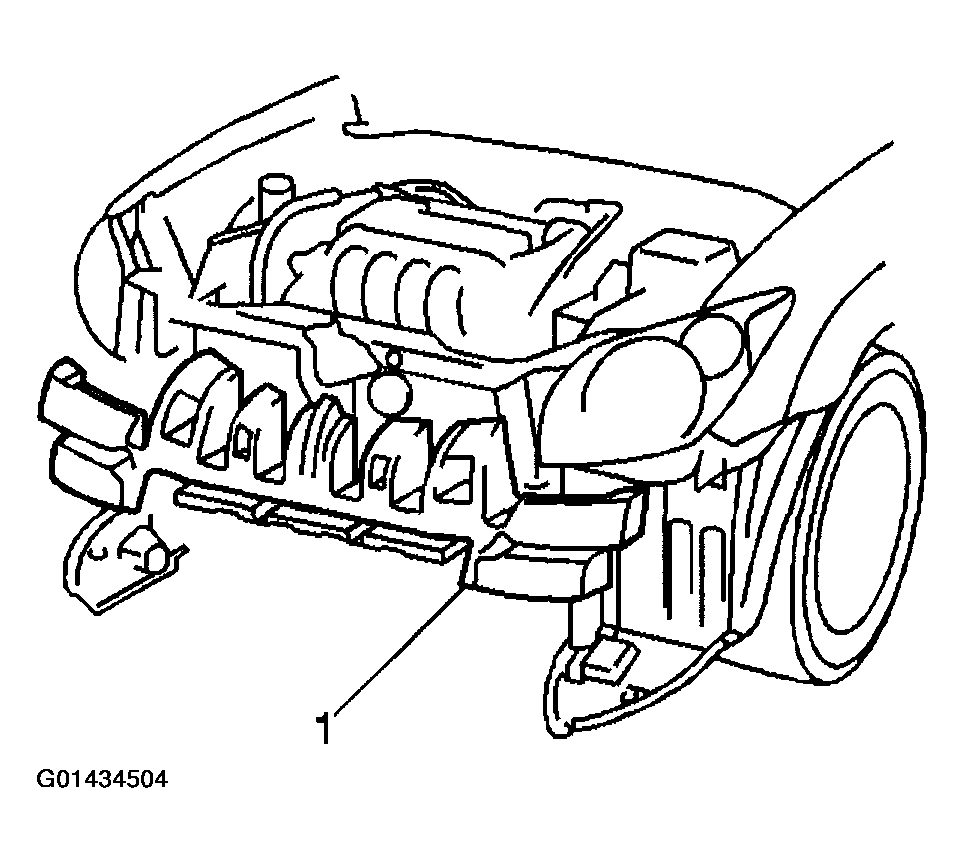

    Fig 1: Installing Front Bumper Fascia Energy Absorber To Front Bumper Impact Bar
    G01434504Courtesy of GENERAL MOTORS CORP.
