Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up on the loose area of the reveal molding.
  2. Clean the top edge of the window surface and the reveal molding with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint-free cloth.
  3. If the reveal molding cannot be reused refer to URETHANE ADHESIVE INSTALLATION OF STATIONARY WINDOWS

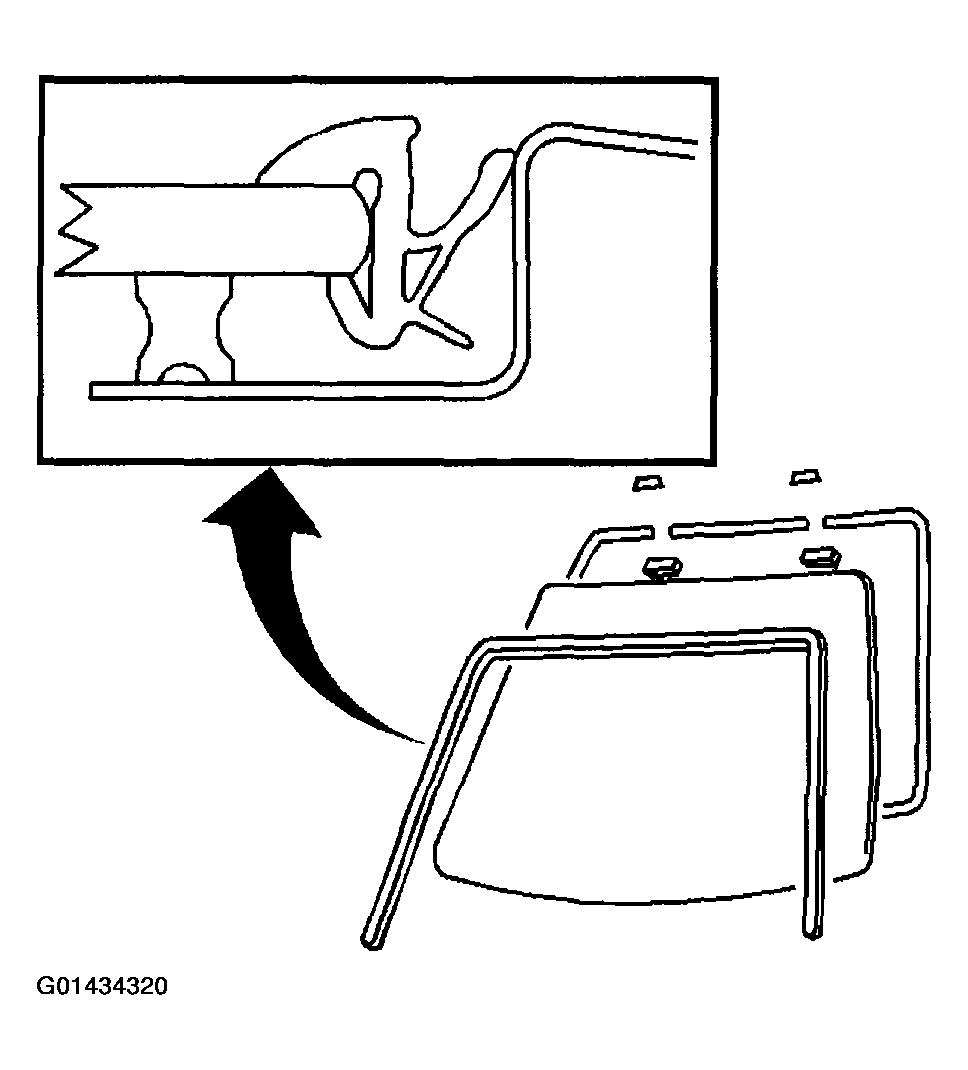

    Fig 1: Removing Window Reveal Molding
    G01434320Courtesy of GENERAL MOTORS CORP.
