Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wire harness cover from the lighted rearview mirror, if equipped.
  2. Use a small flat-bladed tool in order to remove the rearview mirror from the rearview mirror support.
  3. Disconnect the electrical connector from the lighted rearview mirror, if equipped.

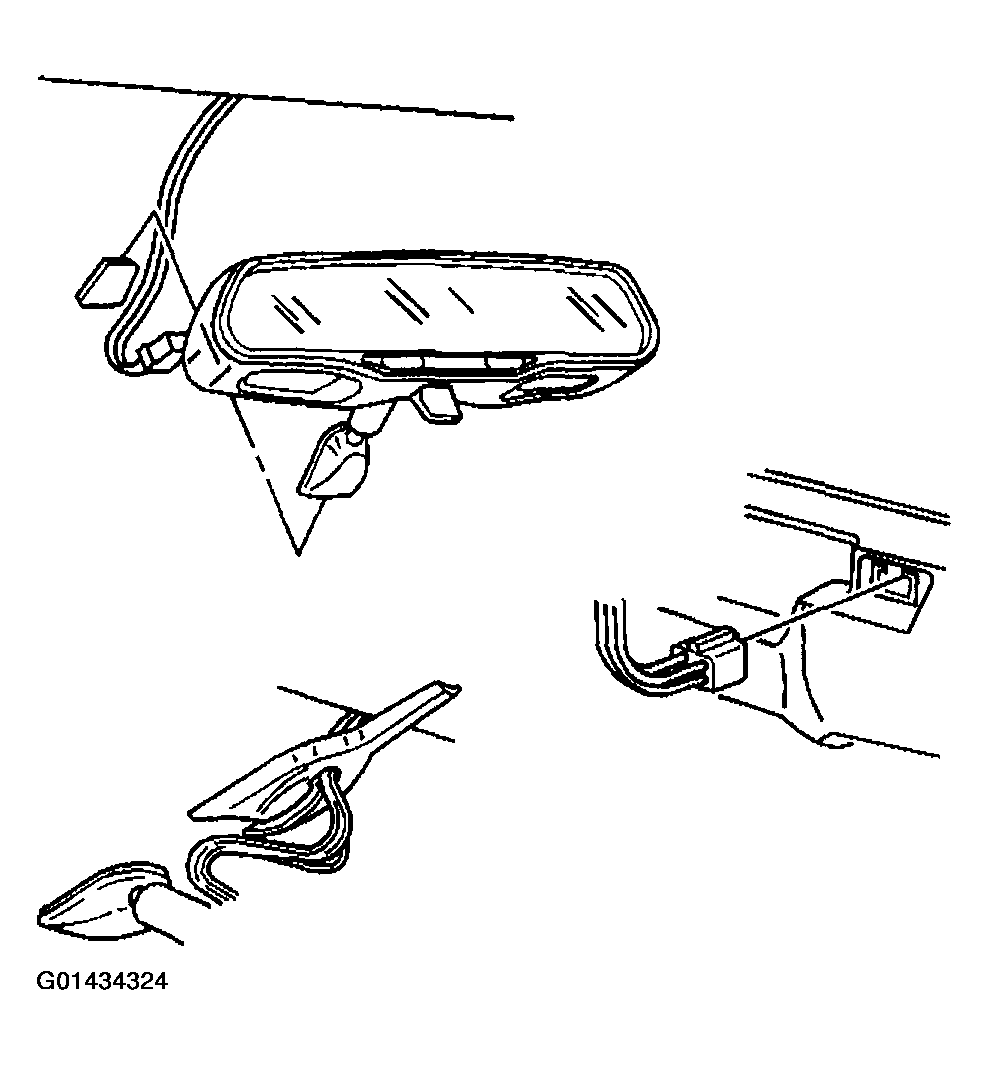

    Fig 1: Removing Rearview Mirror From Rearview Mirror Support
    G01434324Courtesy of GENERAL MOTORS CORP.
