Defogger Inoperative - Rear Window

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

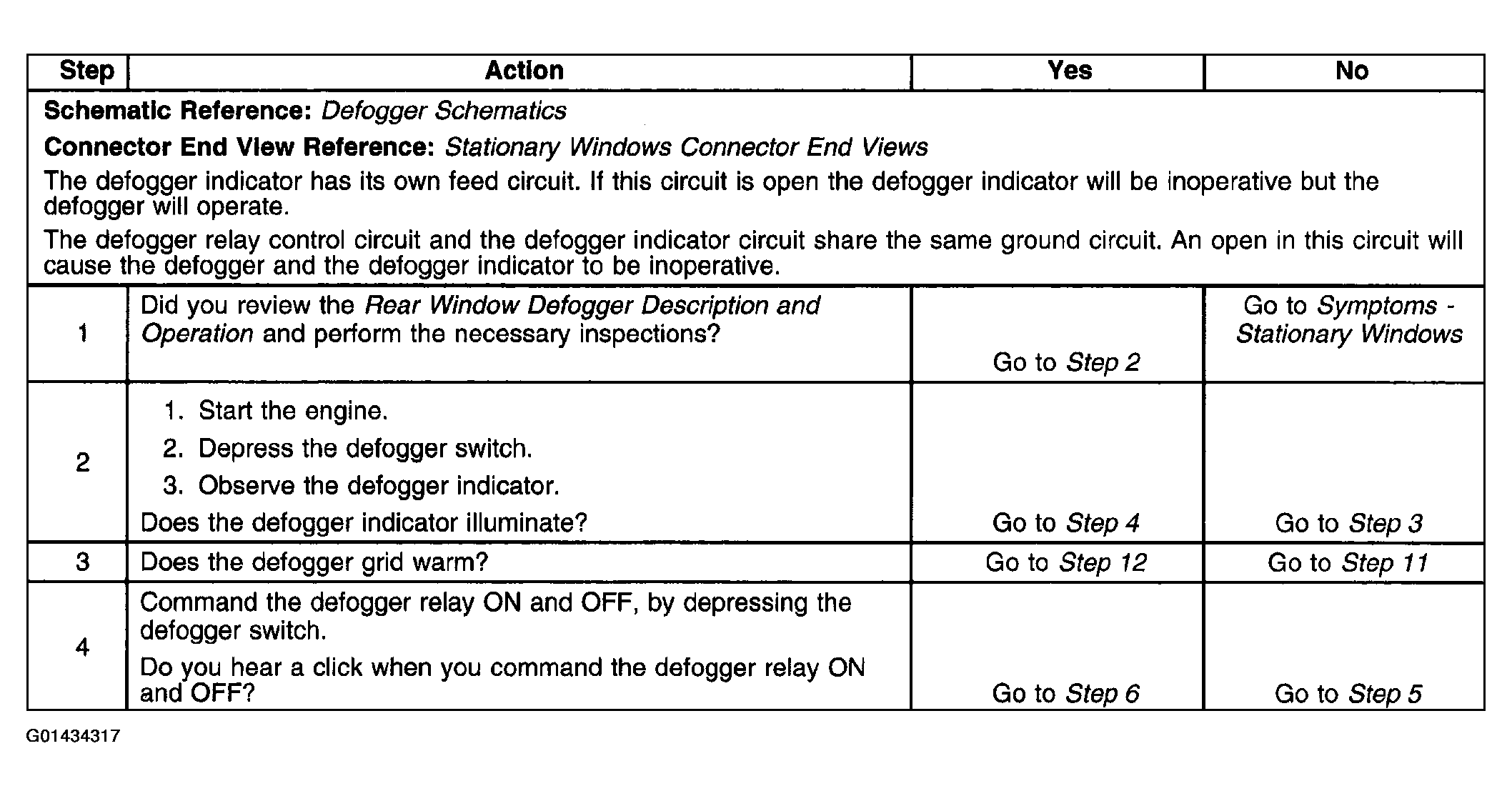

Fig 1: Defogger Inoperative - Rear Window Diagnosis (Steps 1-4)

Courtesy of GENERAL MOTORS CORP.

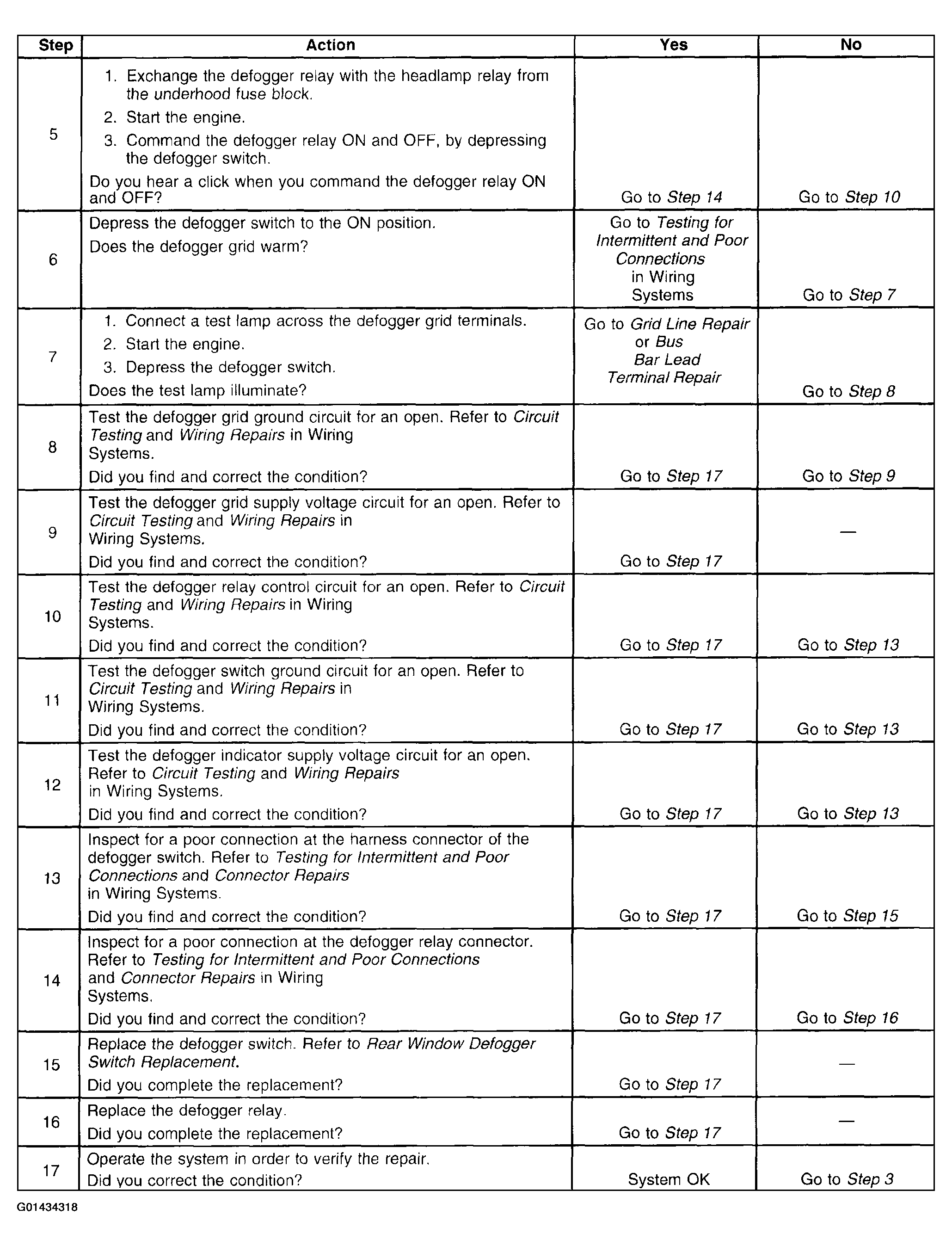

Fig 2: Defogger Inoperative - Rear Window Diagnosis (Steps 5-17)

Courtesy of GENERAL MOTORS CORP.
