Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disengage the plastic retainers (3) from the quarter panel flare (2).
  2. Remove the quarter panel flare (2) from the quarter panel (1).
  3. Remove the plastic retainers (3) if necessary.

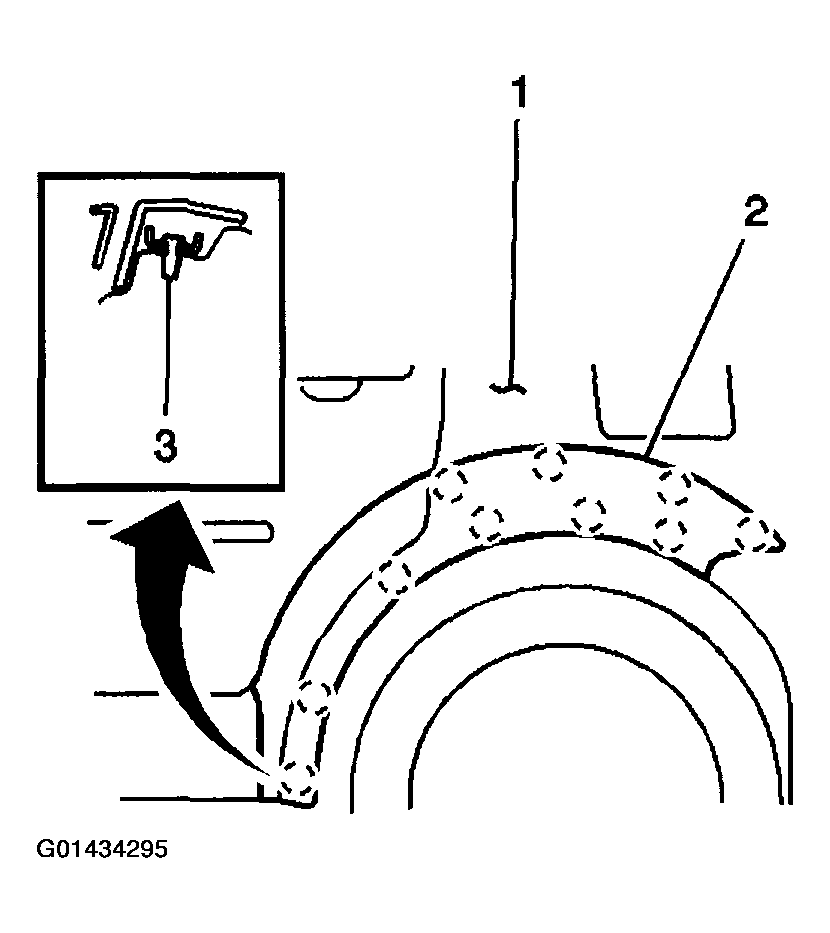

    Fig 1: Removing Quarter Panel Flare From Quarter Panel
    G01434295Courtesy of GENERAL MOTORS CORP.
