Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the plastic retainers (3) to the quarter panel flare (2), if removed.
  2. Install the quarter panel flare (2) to the quarter panel (1).

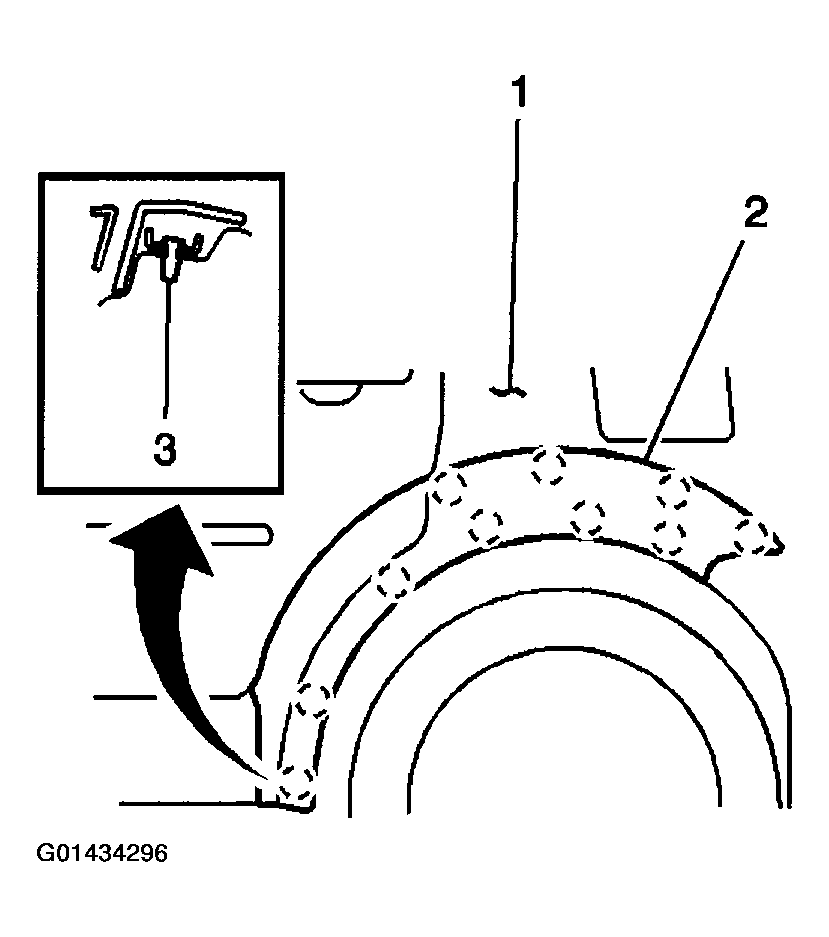

    Fig 1: Installing Quarter Panel Flare To Quarter Panel
    G01434296Courtesy of GENERAL MOTORS CORP.
