Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the plastic push-in retainers from the bottom of the rocker panel molding.
  2. Disengage the plastic clips to remove the rocker panel molding.
  3. Remove the rocker panel molding.
  4. Remove the plastic clips from the rocker panel molding.

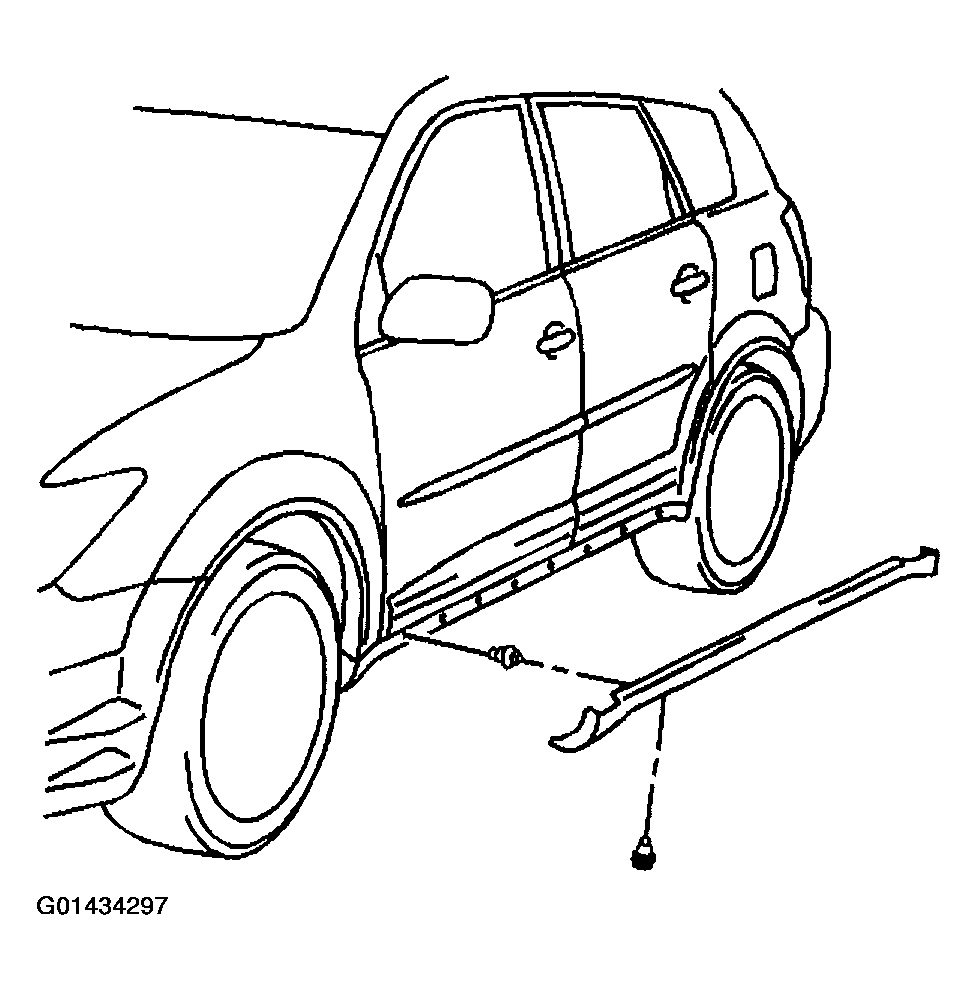

    Fig 1: Removing Rocker Panel Molding
    G01434297Courtesy of GENERAL MOTORS CORP.
