Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install new plastic clips to the rocker panel molding.
  2. Line up the rocker panel molding to the plastic clip holes on the rocker panel and push firmly until the rocker panel molding snaps in.
  3. Install the rocker panel molding push in retainers to the under side of the rocker panel molding.

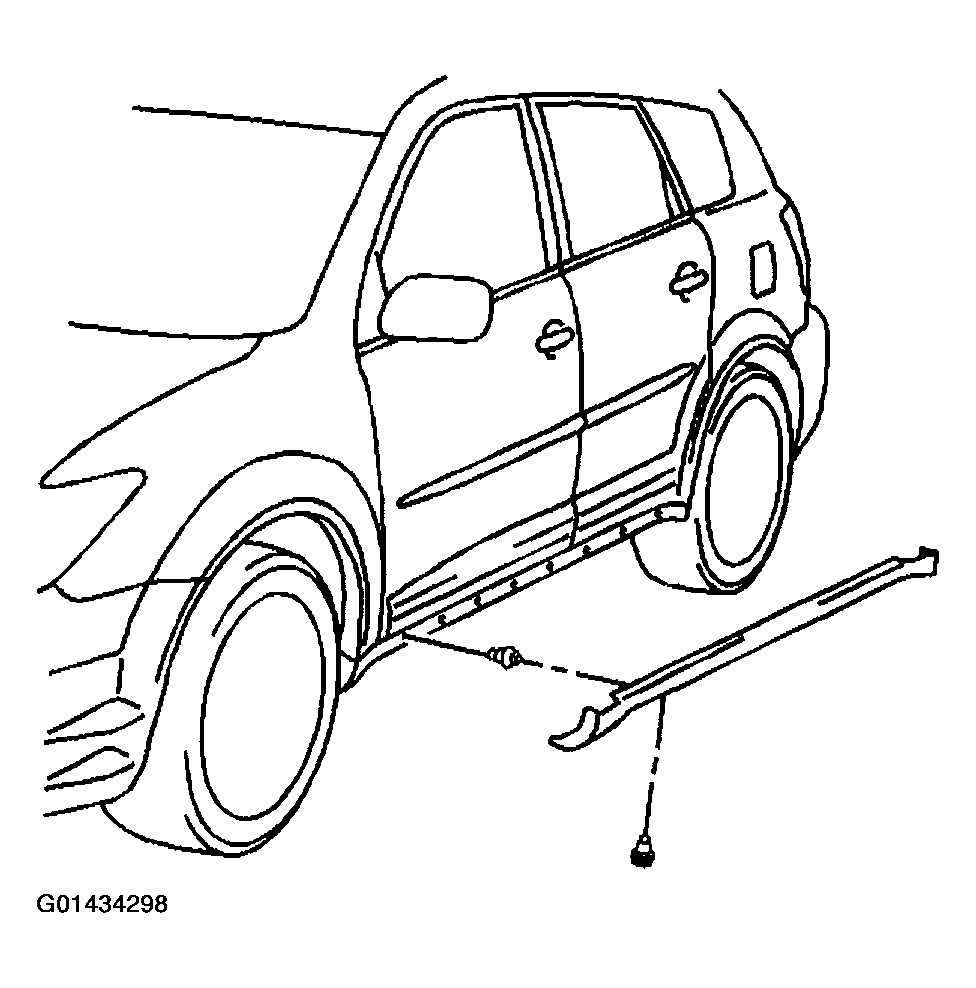

    Fig 1: Installing Rocker Panel Molding
    G01434298Courtesy of GENERAL MOTORS CORP.
