Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply protective tape (2) around the molding (3).
  2. Heat the molding using the J 25070  . Apply heat using a circular motion for about 30 seconds.
    NOTE: Refer to EXTERIOR TRIM EMBLEM REMOVAL NOTICE .
  3. Remove the molding (3) from the door using a plastic flat-bladed tool.
  4. Wash the area with soapy water and wipe dry.
  5. Remove all traces of adhesive from the door using a oil-free naptha or alcohol.

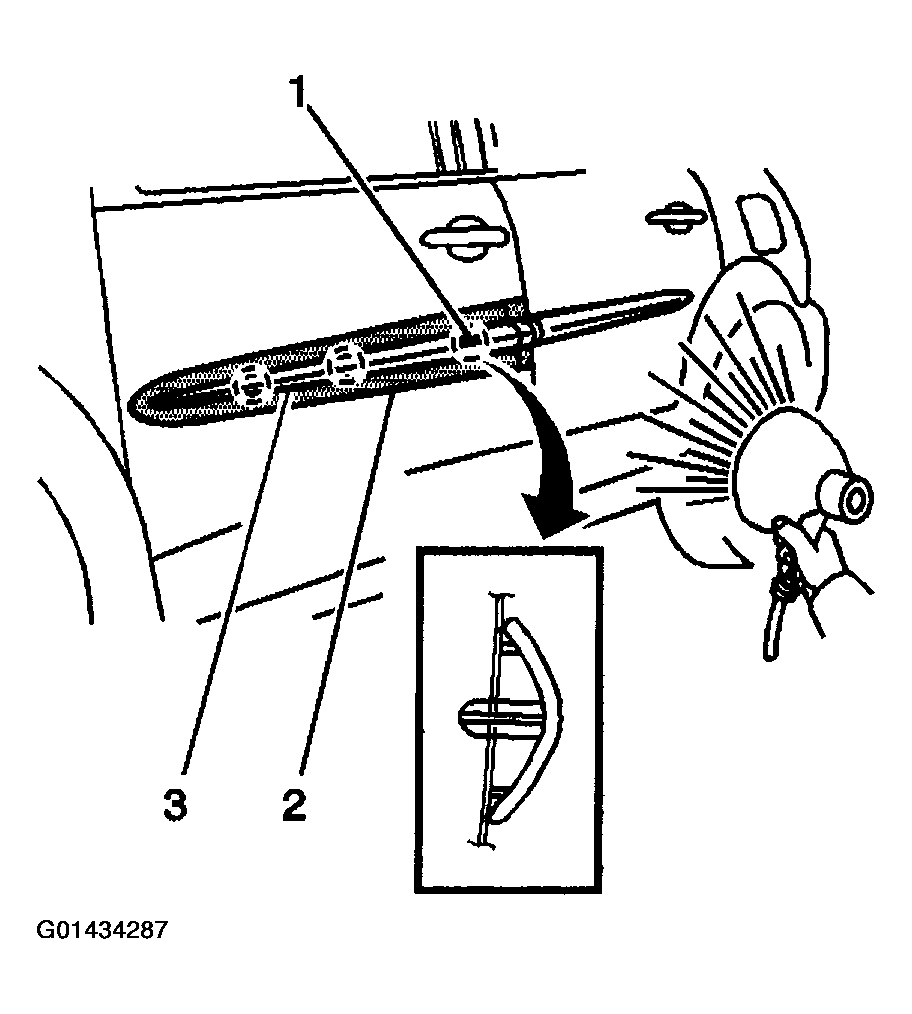

    Fig 1: Removing All Traces Of Adhesive From Door Using Oil-Free Naptha Or Alcohol
    G01434287Courtesy of GENERAL MOTORS CORP.
