Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply protective tape (1) around the roof drip molding (3).
  2. Use a flat bladed tool (2) to remove roof drip molding (3)

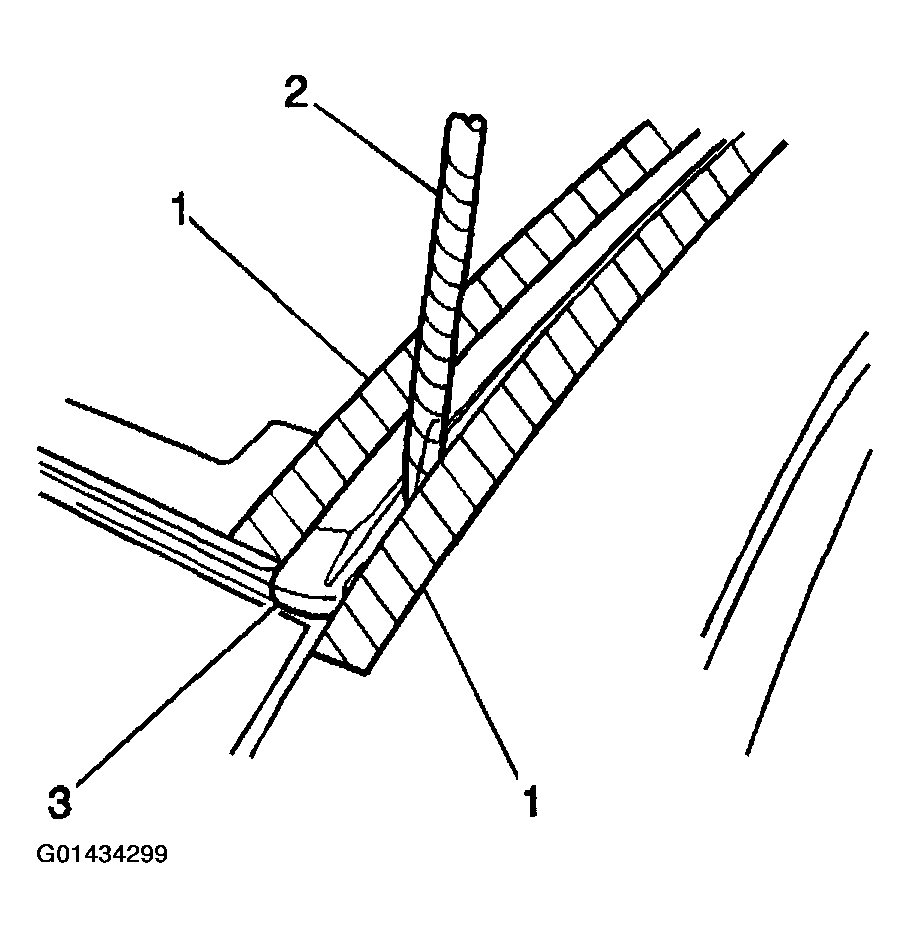

    Fig 1: Removing Roof Drip Molding
    G01434299Courtesy of GENERAL MOTORS CORP.
  3. Disengage the roof drip molding (1) from the clip (2) and remove the roof drip molding (1) from the roof (3).

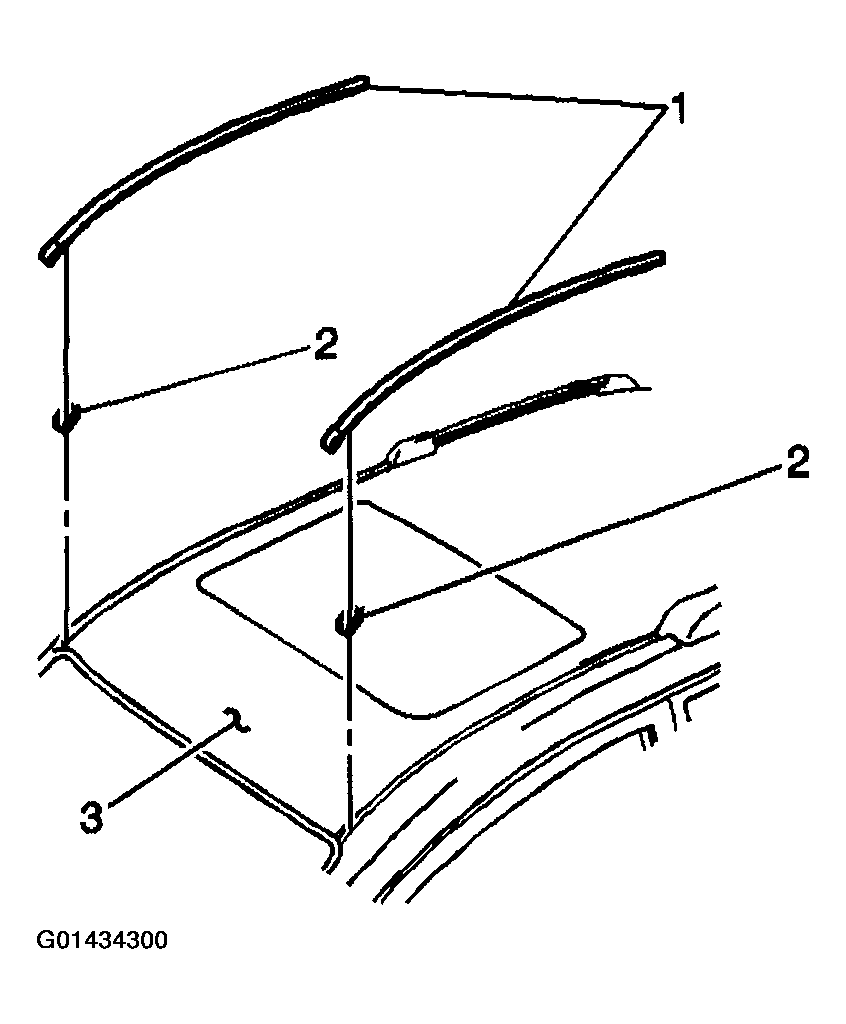

    Fig 2: Removing Roof Drip Molding From Roof
    G01434300Courtesy of GENERAL MOTORS CORP.
