Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 3 screws (3) from the rear lower fender flare (2).
  2. Disengage the fender flare plastic retainers from the fender (1).
  3. Remove the fender flare (2) from the fender (1).
  4. Remove the plastic retainers from the fender flare, if necessary.

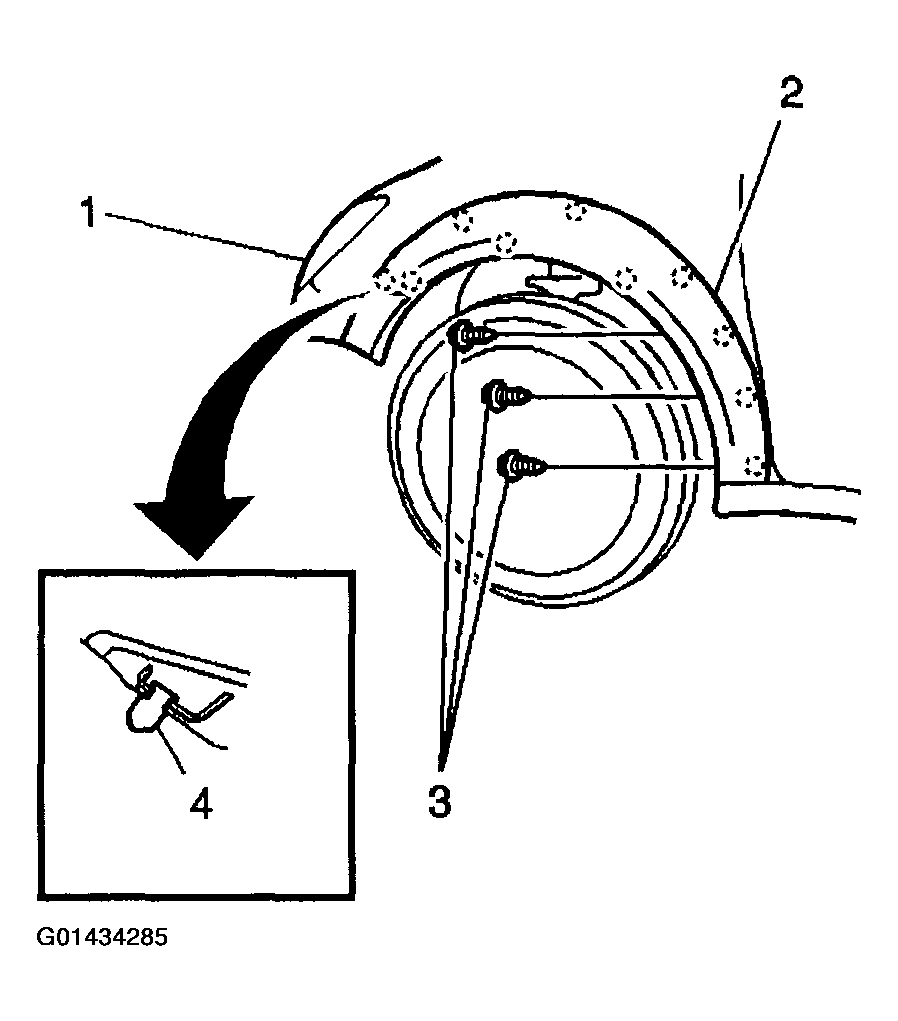

    Fig 1: Removing Plastic Retainers From Fender Flare
    G01434285Courtesy of GENERAL MOTORS CORP.
